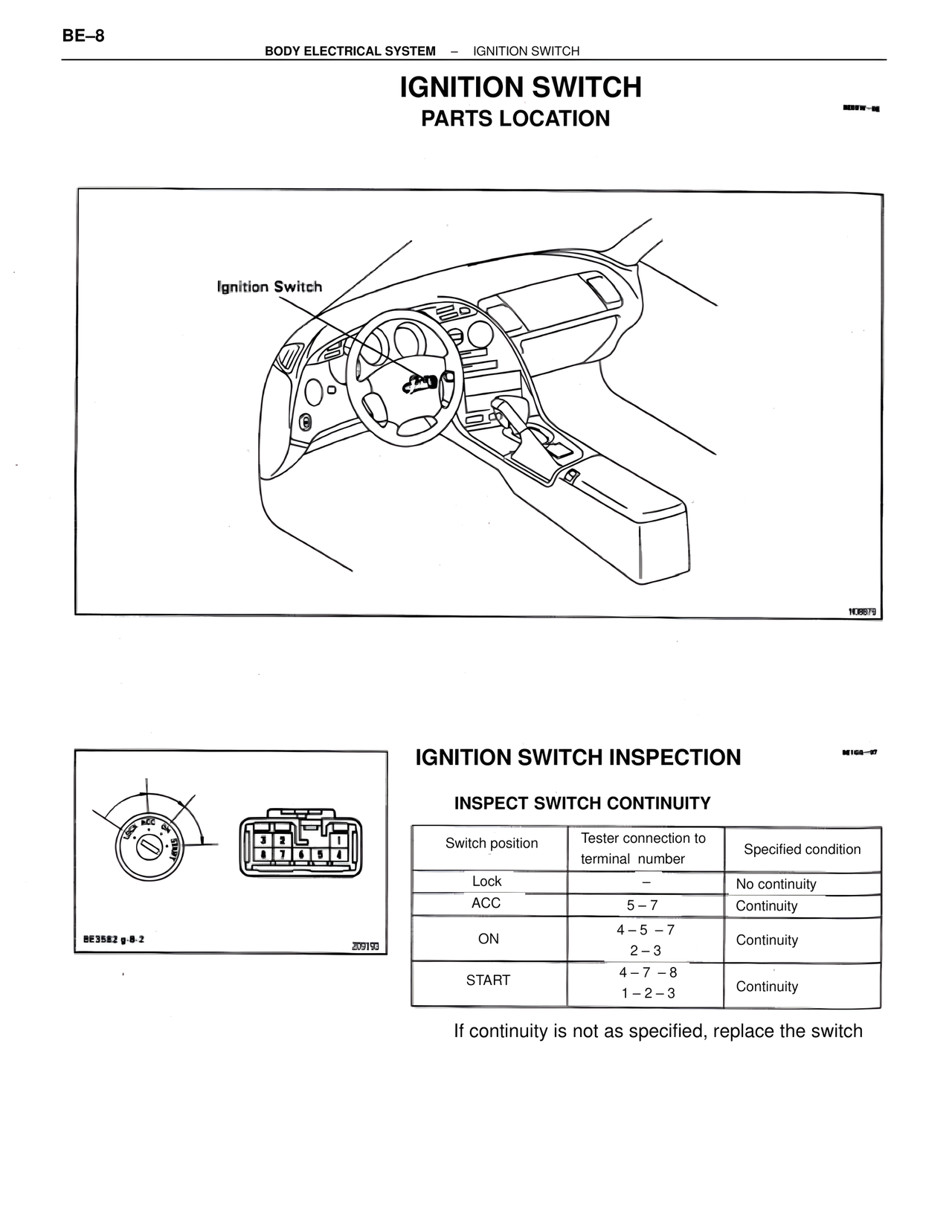

BE-8 BODY ELECTRICAL SYSTEM — IGNITION SWITCH IGNITION SWITCH PARTS LOCATION Ignition Switch N08879 IGNITION SWITCH INSPECTION INSPECT SWITCH CONTINUITY Switch position | Tester connection to terminal number | Specified condition Lock | — | No continuity ACC | 5 – 7 | Continuity ON | 4 – 5 – 7 2 – 3 | Continuity START | 4 – 7 – 8 1 – 2 – 3 | Continuity If continuity is not as specified, replace the switch BE3582 g-8-2 Z09193
