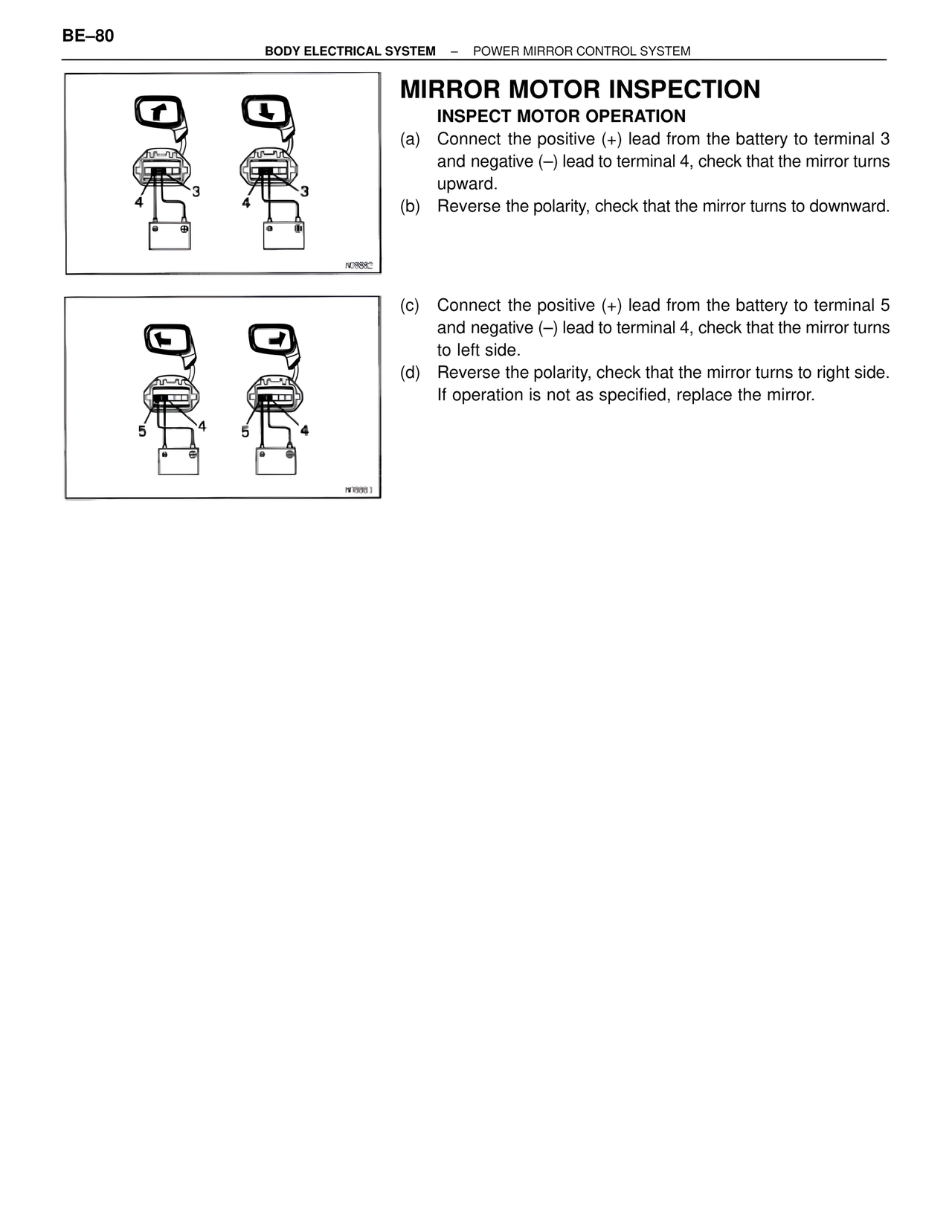

BE–80 BODY ELECTRICAL SYSTEM – POWER MIRROR CONTROL SYSTEM MIRROR MOTOR INSPECTION INSPECT MOTOR OPERATION (a) Connect the positive (+) lead from the battery to terminal 3 and negative (–) lead to terminal 4, check that the mirror turns upward. (b) Reverse the polarity, check that the mirror turns to downward. 3 4 3 4 N08882 (c) Connect the positive (+) lead from the battery to terminal 5 and negative (–) lead to terminal 4, check that the mirror turns to left side. (d) Reverse the polarity, check that the mirror turns to right side. If operation is not as specified, replace the mirror. 5 4 5 4 N08883
