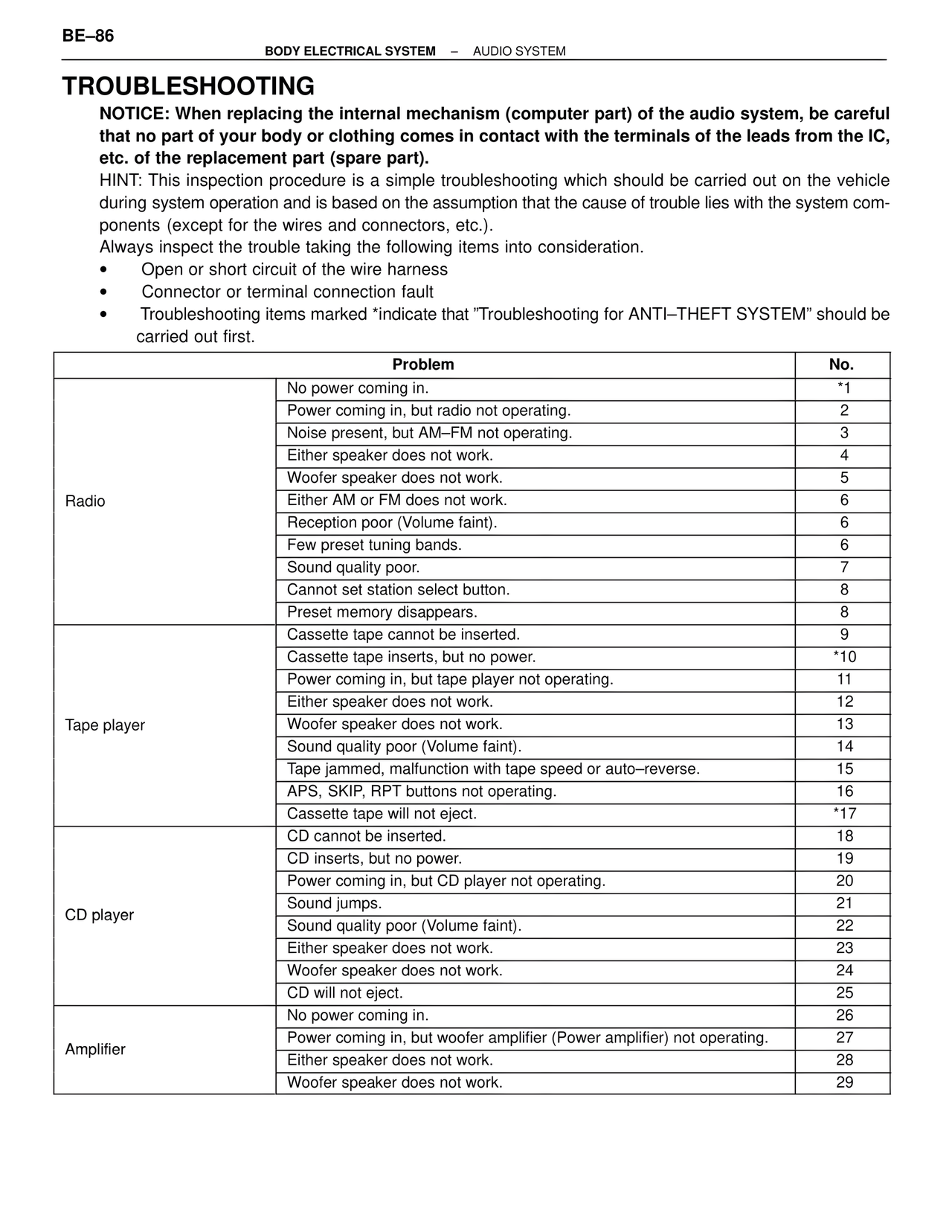

BE–86 BODY ELECTRICAL SYSTEM – AUDIO SYSTEM TROUBLESHOOTING NOTICE: When replacing the internal mechanism (computer part) of the audio system, be careful that no part of your body or clothing comes in contact with the terminals of the leads from the IC, etc. of the replacement part (spare part). HINT: This inspection procedure is a simple troubleshooting which should be carried out on the vehicle during system operation and is based on the assumption that the cause of trouble lies with the system components (except for the wires and connectors, etc.). Always inspect the trouble taking the following items into consideration. • Open or short circuit of the wire harness • Connector or terminal connection fault • Troubleshooting items marked *indicate that "Troubleshooting for ANTI–THEFT SYSTEM" should be carried out first. Problem | No. Radio No power coming in. | *1 Power coming in, but radio not operating. | 2 Noise present, but AM–FM not operating. | 3 Either speaker does not work. | 4 Woofer speaker does not work. | 5 Either AM or FM does not work. | 6 Reception poor (Volume faint). | 6 Few preset tuning bands. | 6 Sound quality poor. | 7 Cannot set station select button. | 8 Preset memory disappears. | 8 Tape player Cassette tape cannot be inserted. | 9 Cassette tape inserts, but no power. | *10 Power coming in, but tape player not operating. | 11 Either speaker does not work. | 12 Woofer speaker does not work. | 13 Sound quality poor (Volume faint). | 14 Tape jammed, malfunction with tape speed or auto–reverse. | 15 APS, SKIP, RPT buttons not operating. | 16 Cassette tape will not eject. | *17 CD player CD cannot be inserted. | 18 CD inserts, but no power. | 19 Power coming in, but CD player not operating. | 20 Sound jumps. | 21 Sound quality poor (Volume faint). | 22 Either speaker does not work. | 23 Woofer speaker does not work. | 24 CD will not eject. | 25 Amplifier No power coming in. | 26 Power coming in, but woofer amplifier (Power amplifier) not operating. | 27 Either speaker does not work. | 28 Woofer speaker does not work. | 29
