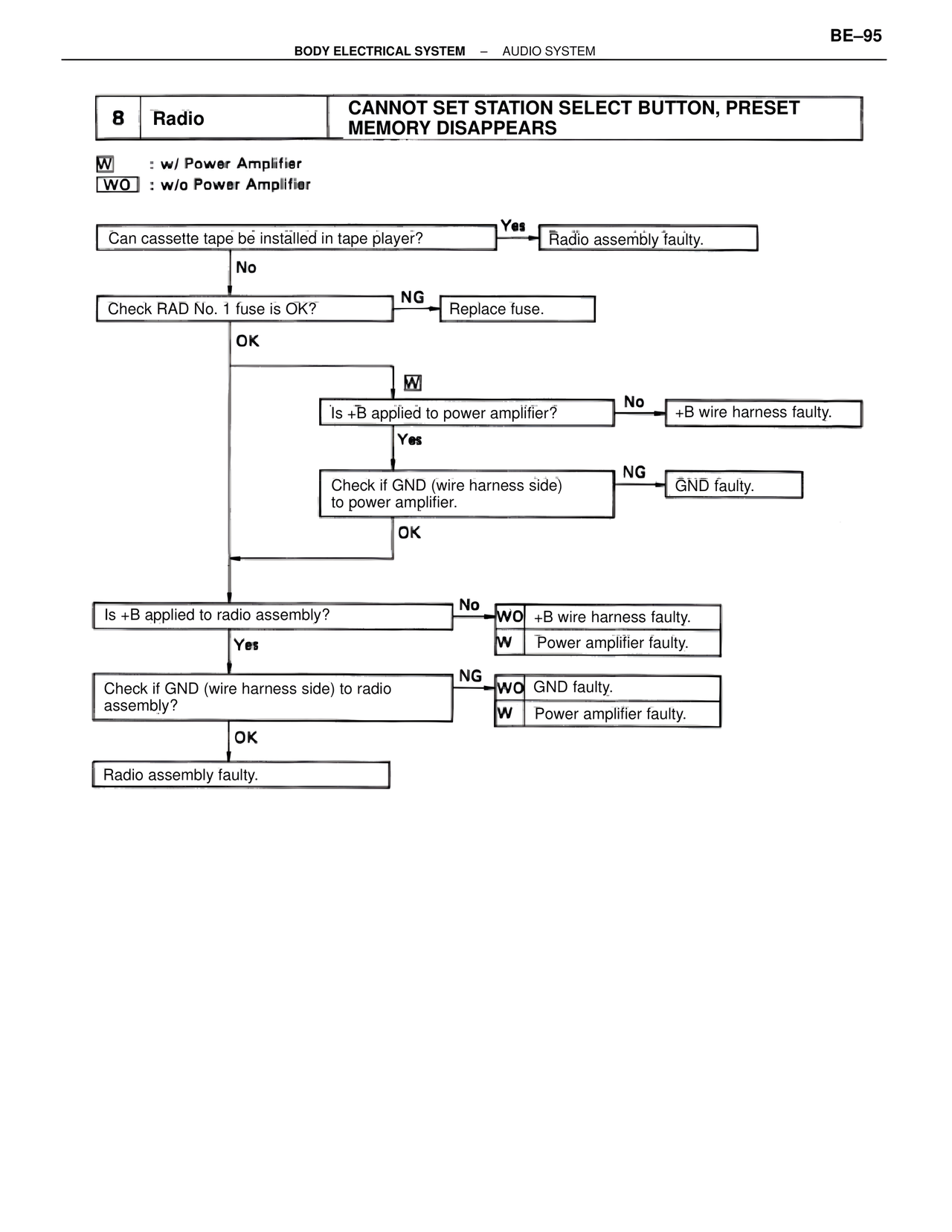

BE-95 BODY ELECTRICAL SYSTEM – AUDIO SYSTEM 8 | Radio | CANNOT SET STATION SELECT BUTTON, PRESET MEMORY DISAPPEARS W : w/ Power Amplifier WO : w/o Power Amplifier Can cassette tape be installed in tape player? --Yes--> Radio assembly faulty. | No | Check RAD No. 1 fuse is OK? --NG--> Replace fuse. | OK | W Is +B applied to power amplifier? --No--> +B wire harness faulty. | Yes | Check if GND (wire harness side) to power amplifier. --NG--> GND faulty. | OK | Is +B applied to radio assembly? --No--> WO +B wire harness faulty. | W Power amplifier faulty. Yes | Check if GND (wire harness side) to radio assembly? --NG--> WO GND faulty. | W Power amplifier faulty. OK | Radio assembly faulty.
