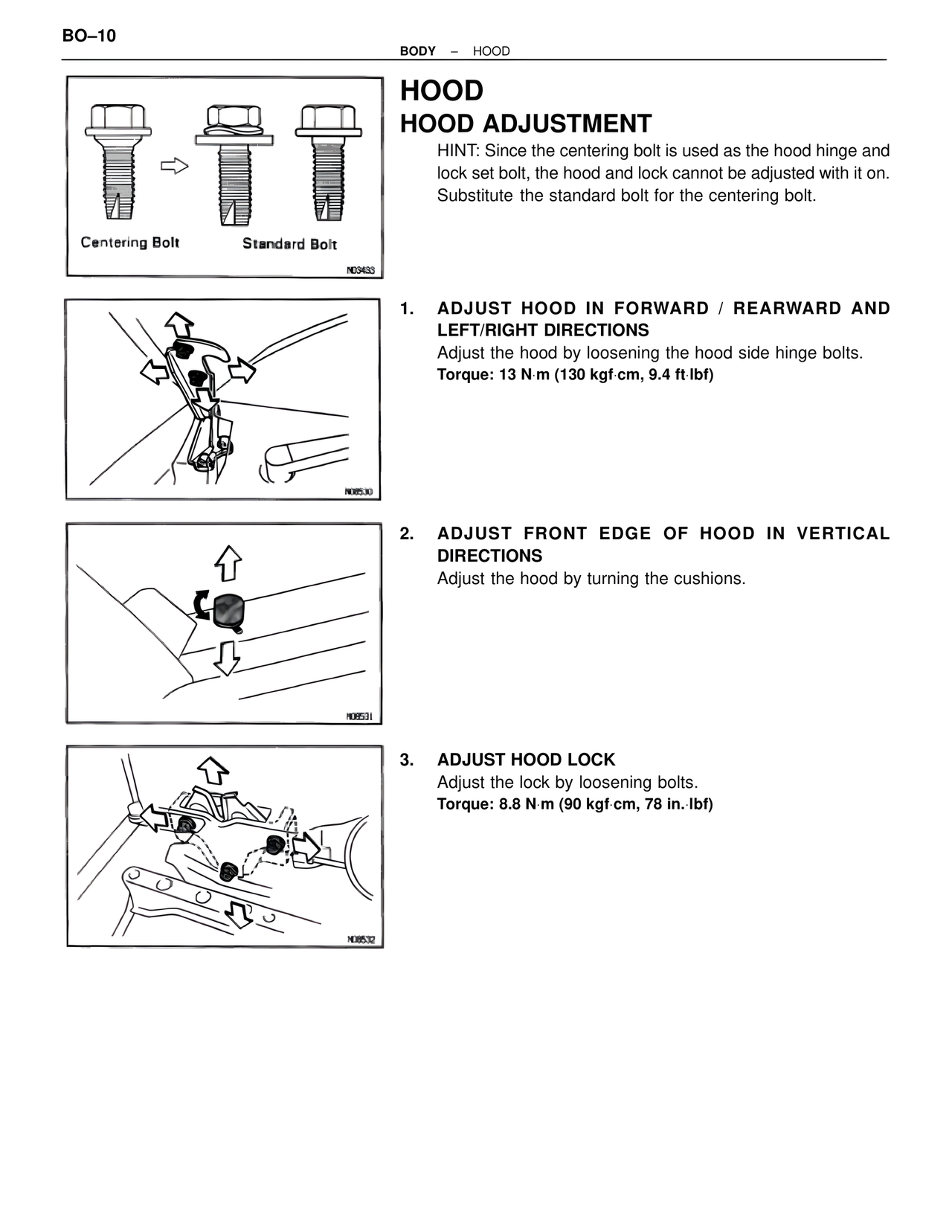

BO–10
BODY – HOOD
HOOD
HOOD ADJUSTMENT
HINT: Since the centering bolt is used as the hood hinge and lock set bolt, the hood and lock cannot be adjusted with it on. Substitute the standard bolt for the centering bolt.
Centering Bolt Standard Bolt
N03433
1. ADJUST HOOD IN FORWARD / REARWARD AND LEFT/RIGHT DIRECTIONS
Adjust the hood by loosening the hood side hinge bolts.
Torque: 13 N·m (130 kgf·cm, 9.4 ft·lbf)
N08530
2. ADJUST FRONT EDGE OF HOOD IN VERTICAL DIRECTIONS
Adjust the hood by turning the cushions.
N08531
3. ADJUST HOOD LOCK
Adjust the lock by loosening bolts.
Torque: 8.8 N·m (90 kgf·cm, 78 in.·lbf)
N08532
