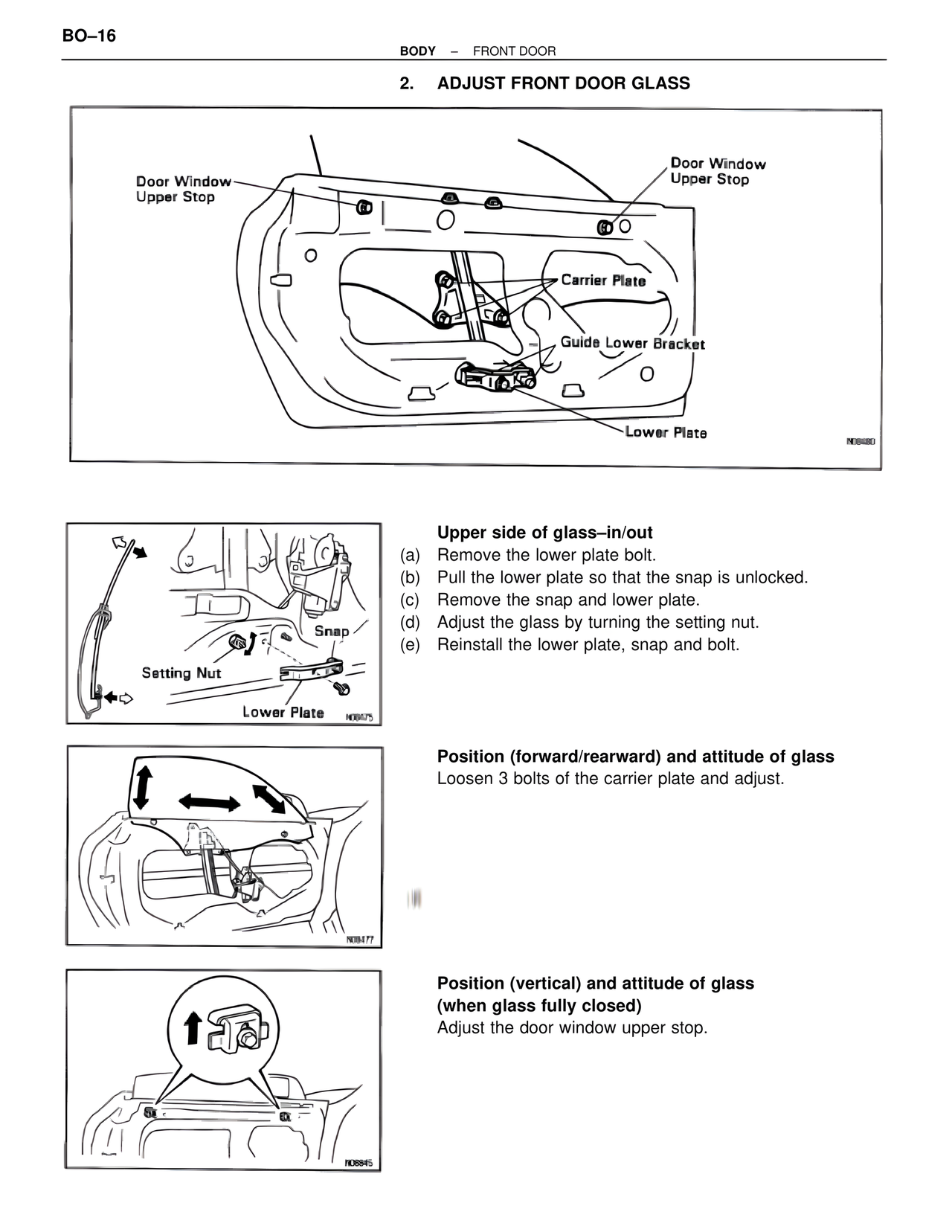

BO–16 BODY – FRONT DOOR 2. ADJUST FRONT DOOR GLASS Door Window Upper Stop Door Window Upper Stop Carrier Plate Guide Lower Bracket Lower Plate N08480 Upper side of glass–in/out (a) Remove the lower plate bolt. (b) Pull the lower plate so that the snap is unlocked. (c) Remove the snap and lower plate. (d) Adjust the glass by turning the setting nut. (e) Reinstall the lower plate, snap and bolt. Snap Setting Nut Lower Plate N08075 Position (forward/rearward) and attitude of glass Loosen 3 bolts of the carrier plate and adjust. N08477 Position (vertical) and attitude of glass (when glass fully closed) Adjust the door window upper stop. N08845
