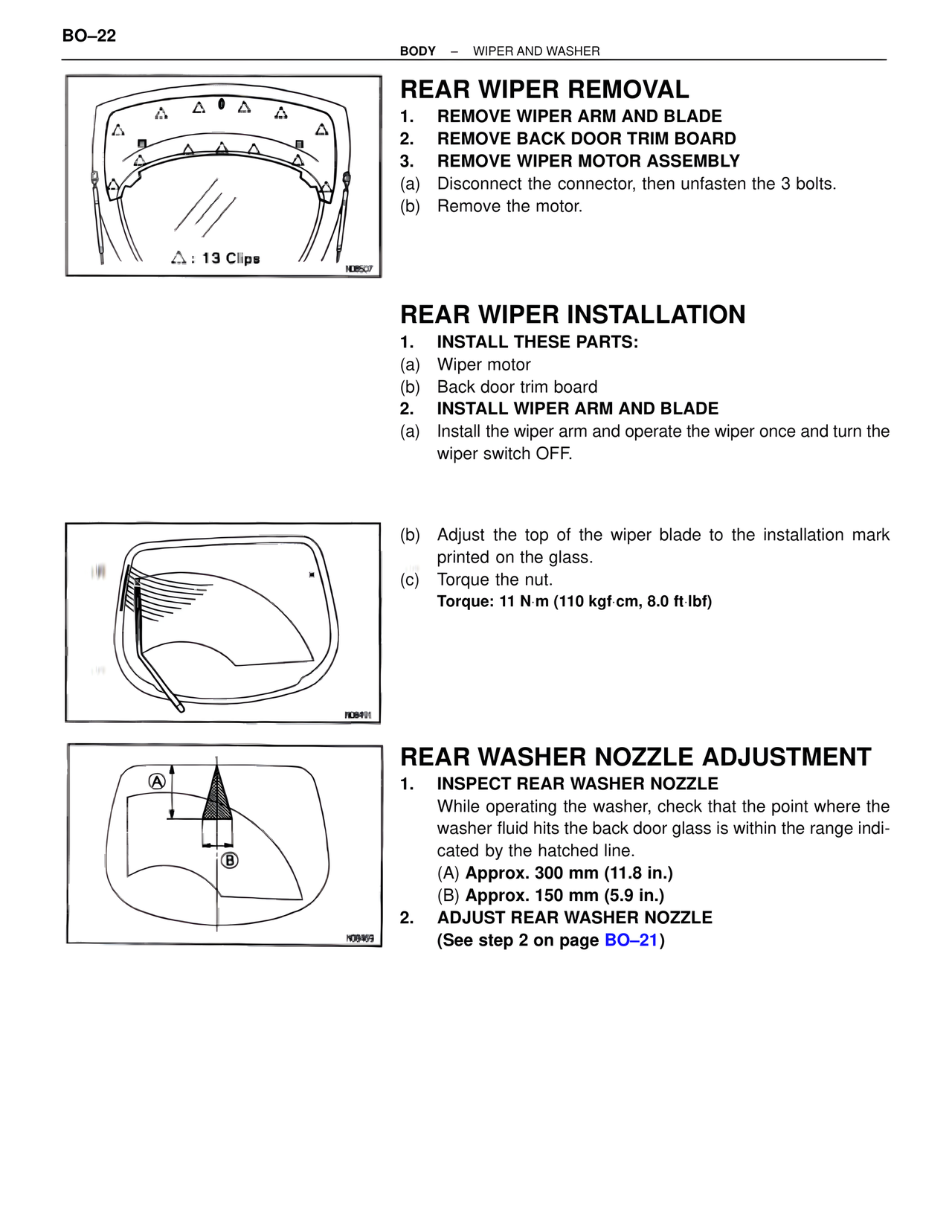

BO–22 BODY – WIPER AND WASHER REAR WIPER REMOVAL 1. REMOVE WIPER ARM AND BLADE 2. REMOVE BACK DOOR TRIM BOARD 3. REMOVE WIPER MOTOR ASSEMBLY (a) Disconnect the connector, then unfasten the 3 bolts. (b) Remove the motor. △ : 13 Clips REAR WIPER INSTALLATION 1. INSTALL THESE PARTS: (a) Wiper motor (b) Back door trim board 2. INSTALL WIPER ARM AND BLADE (a) Install the wiper arm and operate the wiper once and turn the wiper switch OFF. (b) Adjust the top of the wiper blade to the installation mark printed on the glass. (c) Torque the nut. Torque: 11 N·m (110 kgf·cm, 8.0 ft·lbf) REAR WASHER NOZZLE ADJUSTMENT 1. INSPECT REAR WASHER NOZZLE While operating the washer, check that the point where the washer fluid hits the back door glass is within the range indicated by the hatched line. (A) Approx. 300 mm (11.8 in.) (B) Approx. 150 mm (5.9 in.) 2. ADJUST REAR WASHER NOZZLE (See step 2 on page BO–21)
