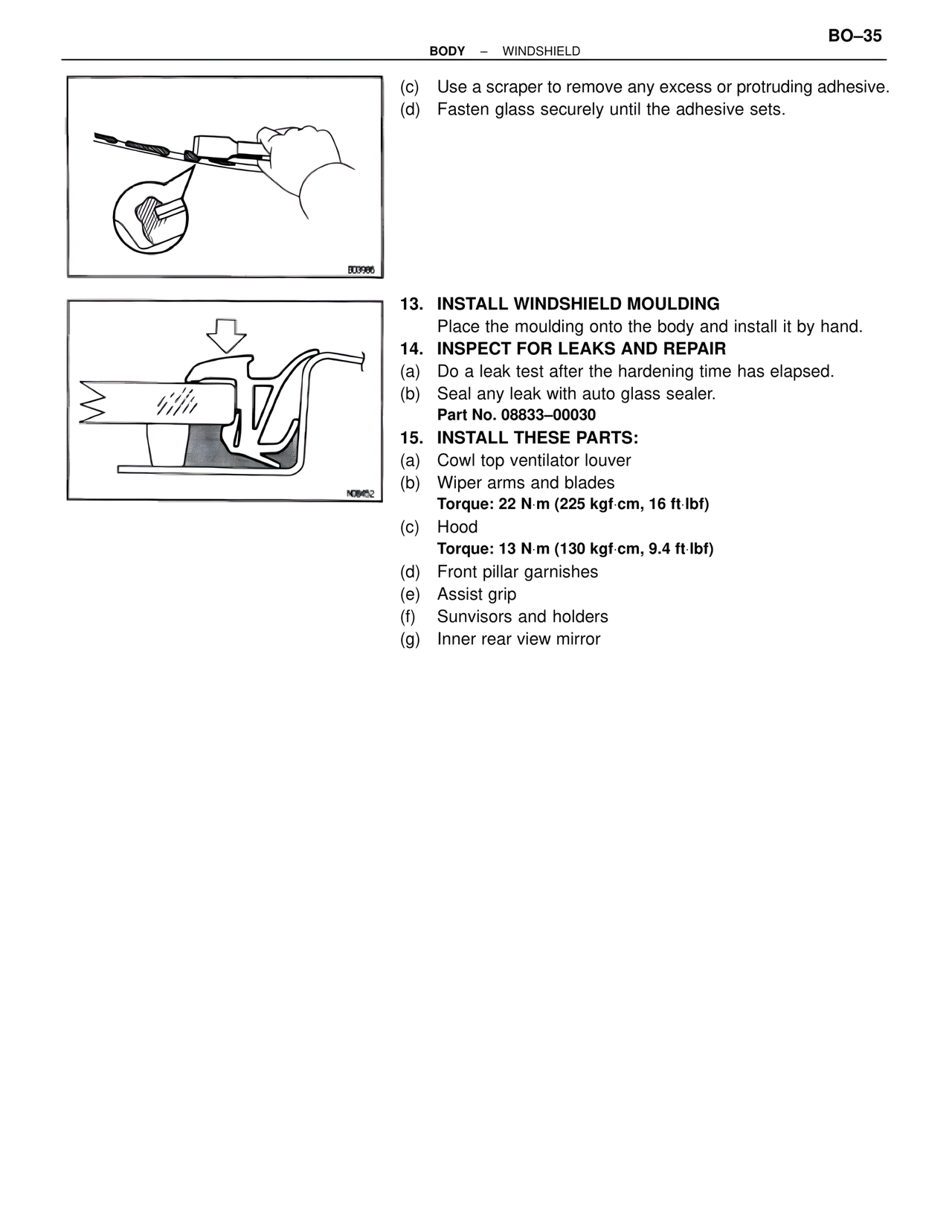

(c) Use a scraper to remove any excess or protruding adhesive.
(d) Fasten glass securely until the adhesive sets.
13. INSTALL WINDSHIELD MOULDING
Place the moulding onto the body and install it by hand.
14. INSPECT FOR LEAKS AND REPAIR
(a) Do a leak test after the hardening time has elapsed.
(b) Seal any leak with auto glass sealer.
Part No. 08833–00030
15. INSTALL THESE PARTS:
(a) Cowl top ventilator louver
(b) Wiper arms and blades
Torque: 22 N·m (225 kgf·cm, 16 ft·lbf)
(c) Hood
Torque: 13 N·m (130 kgf·cm, 9.4 ft·lbf)
(d) Front pillar garnishes
(e) Assist grip
(f) Sunvisors and holders
(g) Inner rear view mirror
