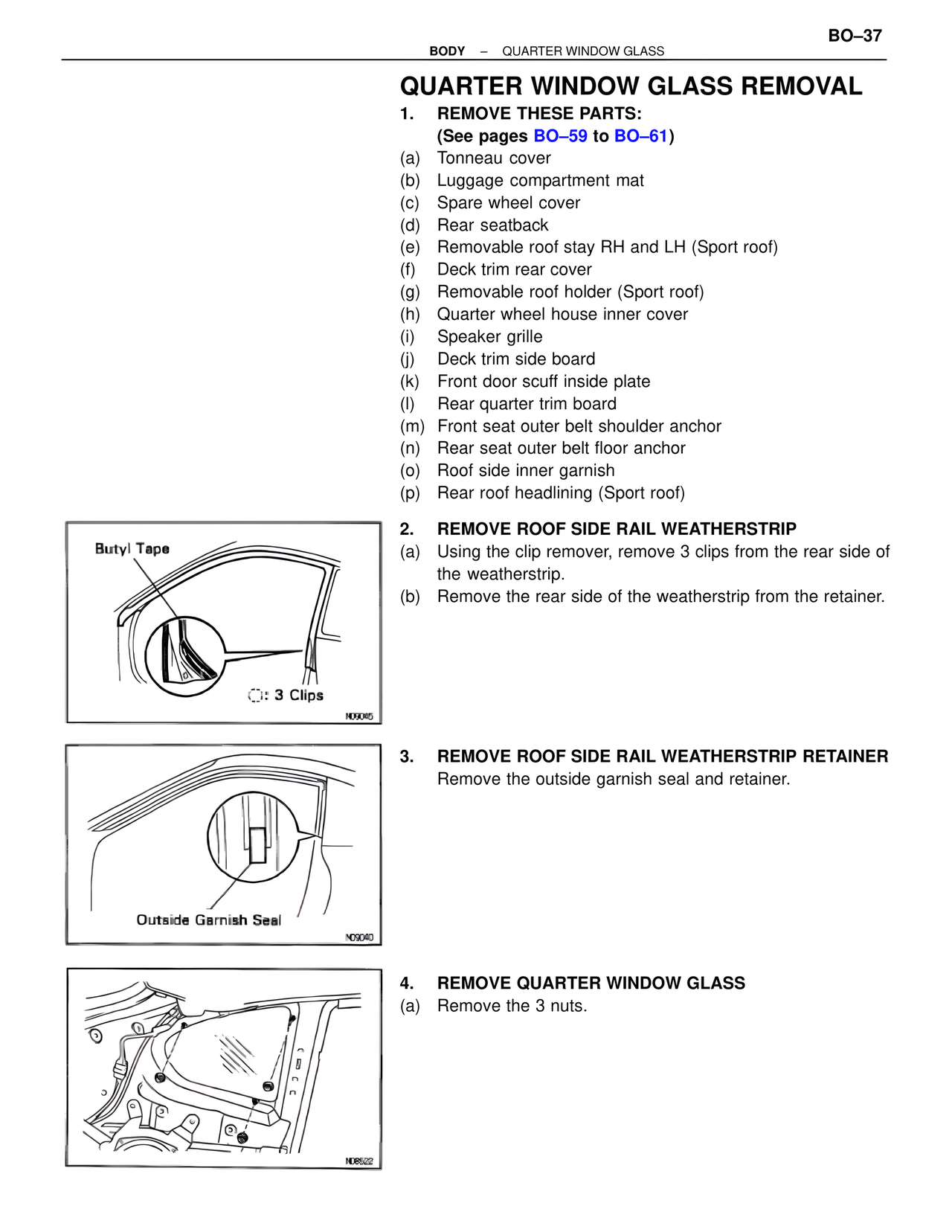

BODY – QUARTER WINDOW GLASS BO–37 QUARTER WINDOW GLASS REMOVAL 1. REMOVE THESE PARTS: (See pages BO–59 to BO–61) (a) Tonneau cover (b) Luggage compartment mat (c) Spare wheel cover (d) Rear seatback (e) Removable roof stay RH and LH (Sport roof) (f) Deck trim rear cover (g) Removable roof holder (Sport roof) (h) Quarter wheel house inner cover (i) Speaker grille (j) Deck trim side board (k) Front door scuff inside plate (l) Rear quarter trim board (m) Front seat outer belt shoulder anchor (n) Rear seat outer belt floor anchor (o) Roof side inner garnish (p) Rear roof headlining (Sport roof) Butyl Tape ○: 3 Clips N09045 2. REMOVE ROOF SIDE RAIL WEATHERSTRIP (a) Using the clip remover, remove 3 clips from the rear side of the weatherstrip. (b) Remove the rear side of the weatherstrip from the retainer. Outside Garnish Seal N09040 3. REMOVE ROOF SIDE RAIL WEATHERSTRIP RETAINER Remove the outside garnish seal and retainer. N08522 4. REMOVE QUARTER WINDOW GLASS (a) Remove the 3 nuts.
