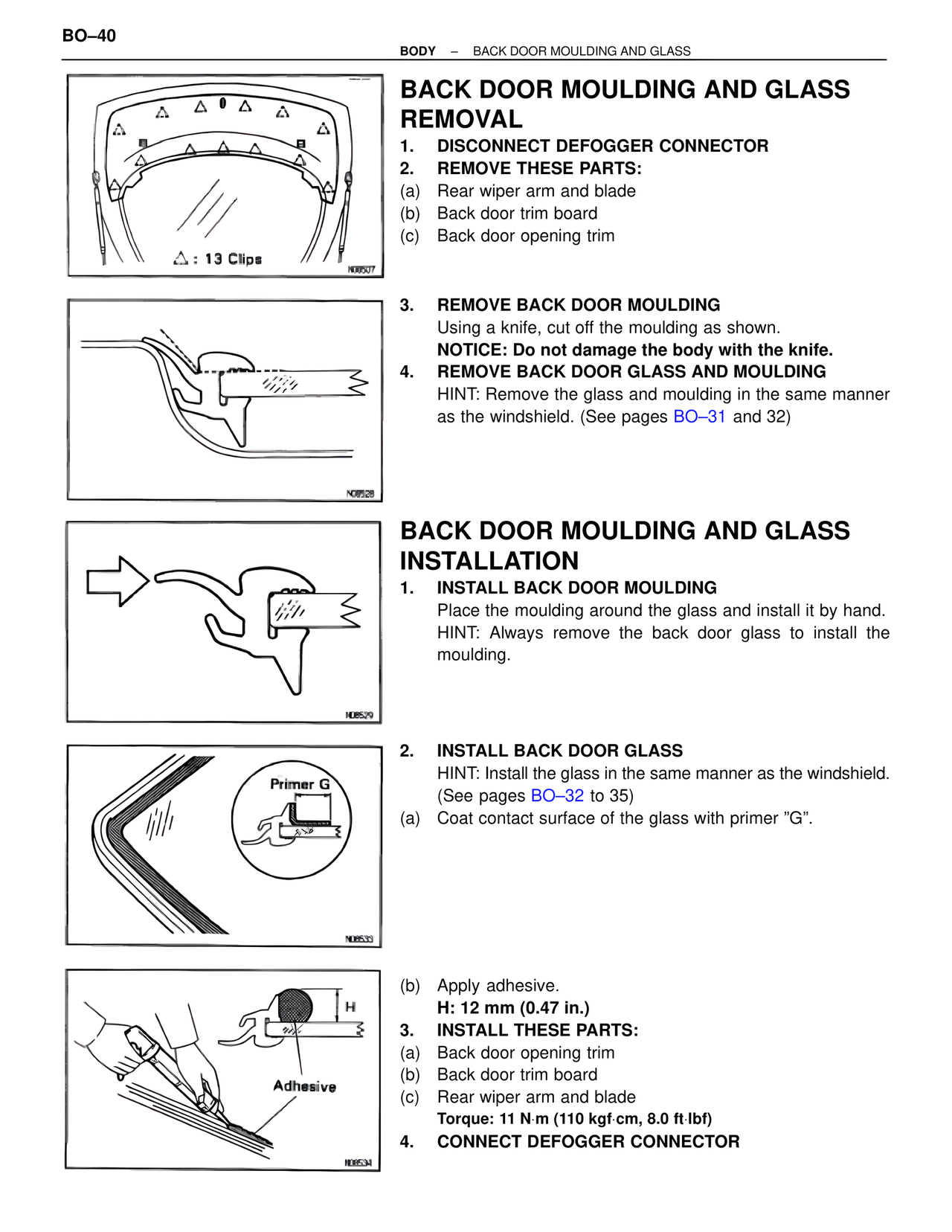

BO–40
BODY – BACK DOOR MOULDING AND GLASS
△: 13 Clips
N08507
BACK DOOR MOULDING AND GLASS REMOVAL
1. DISCONNECT DEFOGGER CONNECTOR
2. REMOVE THESE PARTS:
(a) Rear wiper arm and blade
(b) Back door trim board
(c) Back door opening trim
N08528
3. REMOVE BACK DOOR MOULDING
Using a knife, cut off the moulding as shown.
NOTICE: Do not damage the body with the knife.
4. REMOVE BACK DOOR GLASS AND MOULDING
HINT: Remove the glass and moulding in the same manner as the windshield. (See pages BO–31 and 32)
N08529
BACK DOOR MOULDING AND GLASS INSTALLATION
1. INSTALL BACK DOOR MOULDING
Place the moulding around the glass and install it by hand.
HINT: Always remove the back door glass to install the moulding.
Primer G
N08533
2. INSTALL BACK DOOR GLASS
HINT: Install the glass in the same manner as the windshield. (See pages BO–32 to 35)
(a) Coat contact surface of the glass with primer "G".
H
Adhesive
N08534
(b) Apply adhesive.
H: 12 mm (0.47 in.)
3. INSTALL THESE PARTS:
(a) Back door opening trim
(b) Back door trim board
(c) Rear wiper arm and blade
Torque: 11 N·m (110 kgf·cm, 8.0 ft·lbf)
4. CONNECT DEFOGGER CONNECTOR
