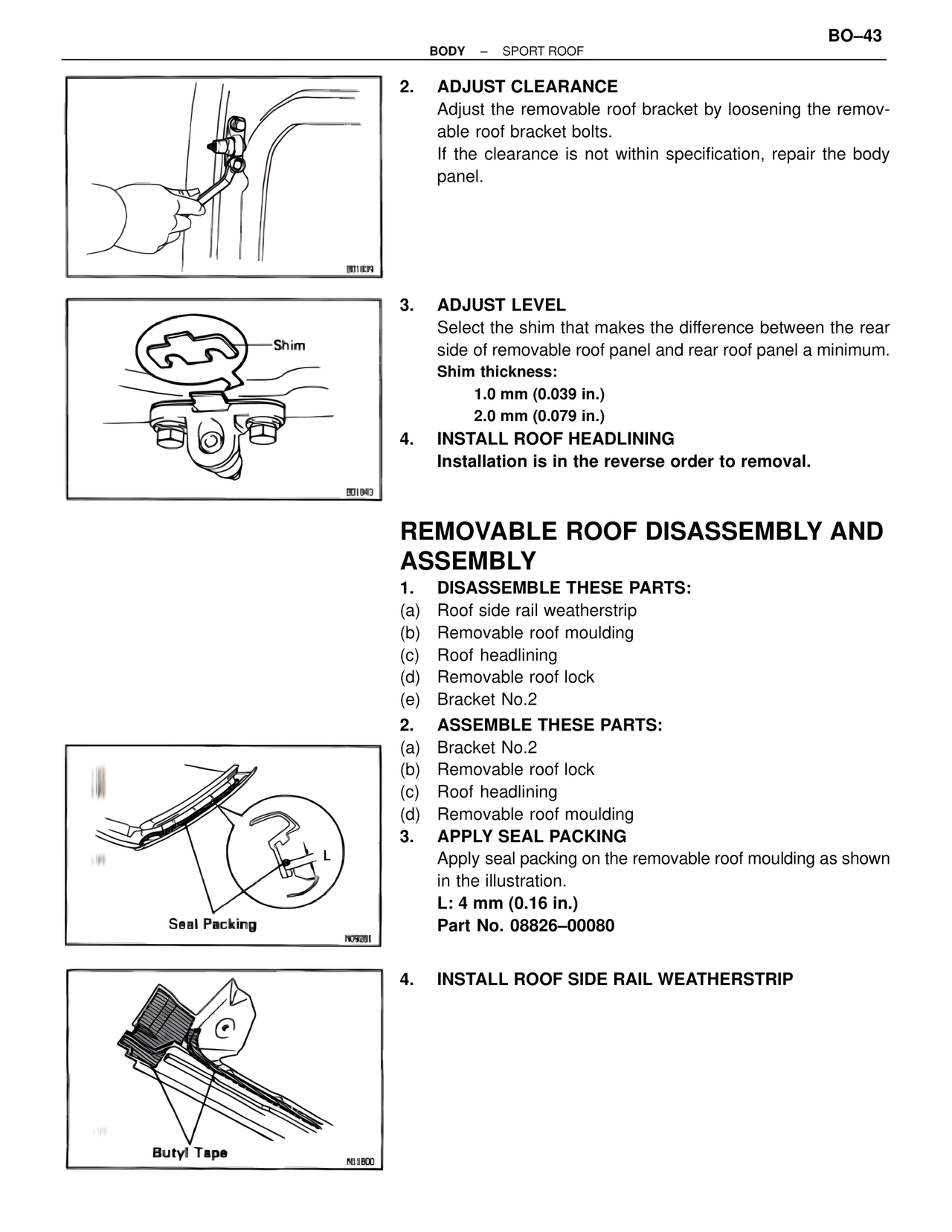

BODY – SPORT ROOF BO–43 2. ADJUST CLEARANCE Adjust the removable roof bracket by loosening the remov- able roof bracket bolts. If the clearance is not within specification, repair the body panel. BO11809 3. ADJUST LEVEL Select the shim that makes the difference between the rear side of removable roof panel and rear roof panel a minimum. Shim thickness: 1.0 mm (0.039 in.) 2.0 mm (0.079 in.) Shim BO11843 4. INSTALL ROOF HEADLINING Installation is in the reverse order to removal. REMOVABLE ROOF DISASSEMBLY AND ASSEMBLY 1. DISASSEMBLE THESE PARTS: (a) Roof side rail weatherstrip (b) Removable roof moulding (c) Roof headlining (d) Removable roof lock (e) Bracket No.2 2. ASSEMBLE THESE PARTS: (a) Bracket No.2 (b) Removable roof lock (c) Roof headlining (d) Removable roof moulding 3. APPLY SEAL PACKING Apply seal packing on the removable roof moulding as shown in the illustration. L: 4 mm (0.16 in.) Part No. 08826–00080 Seal Packing L N09281 4. INSTALL ROOF SIDE RAIL WEATHERSTRIP Butyl Tape N11800
