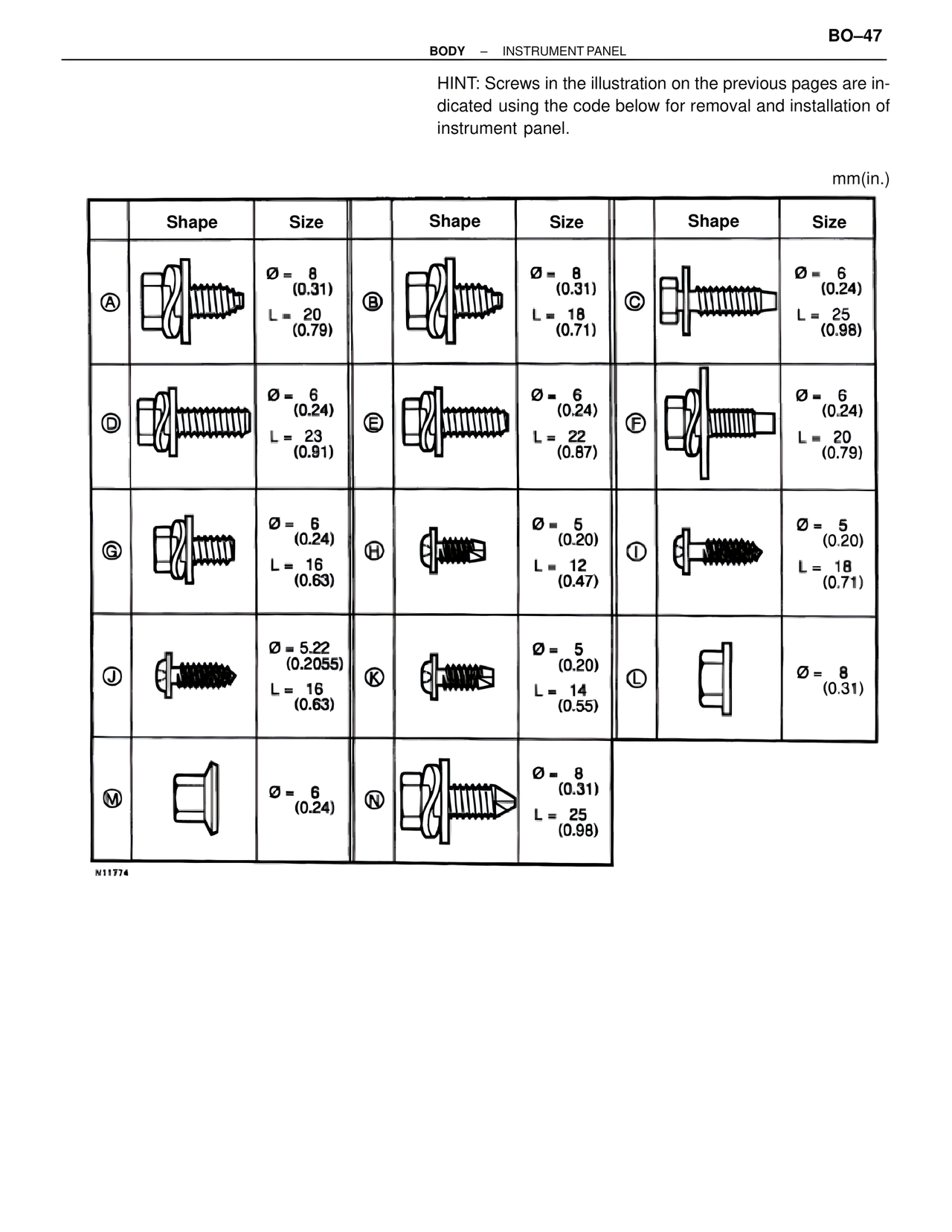

BO-47 BODY – INSTRUMENT PANEL HINT: Screws in the illustration on the previous pages are indicated using the code below for removal and installation of instrument panel. mm(in.) Shape Size Shape Size Shape Size A Ø = 8 (0.31) B Ø = 8 (0.31) C Ø = 6 (0.24) L = 20 (0.79) L = 18 (0.71) L = 25 (0.98) D Ø = 6 (0.24) E Ø = 6 (0.24) F Ø = 6 (0.24) L = 23 (0.91) L = 22 (0.87) L = 20 (0.79) G Ø = 6 (0.24) H Ø = 5 (0.20) I Ø = 5 (0.20) L = 16 (0.63) L = 12 (0.47) L = 18 (0.71) J Ø = 5.22 (0.2055) K Ø = 5 (0.20) L Ø = 8 (0.31) L = 16 (0.63) L = 14 (0.55) M Ø = 6 (0.24) N Ø = 8 (0.31) L = 25 (0.98) N11774
