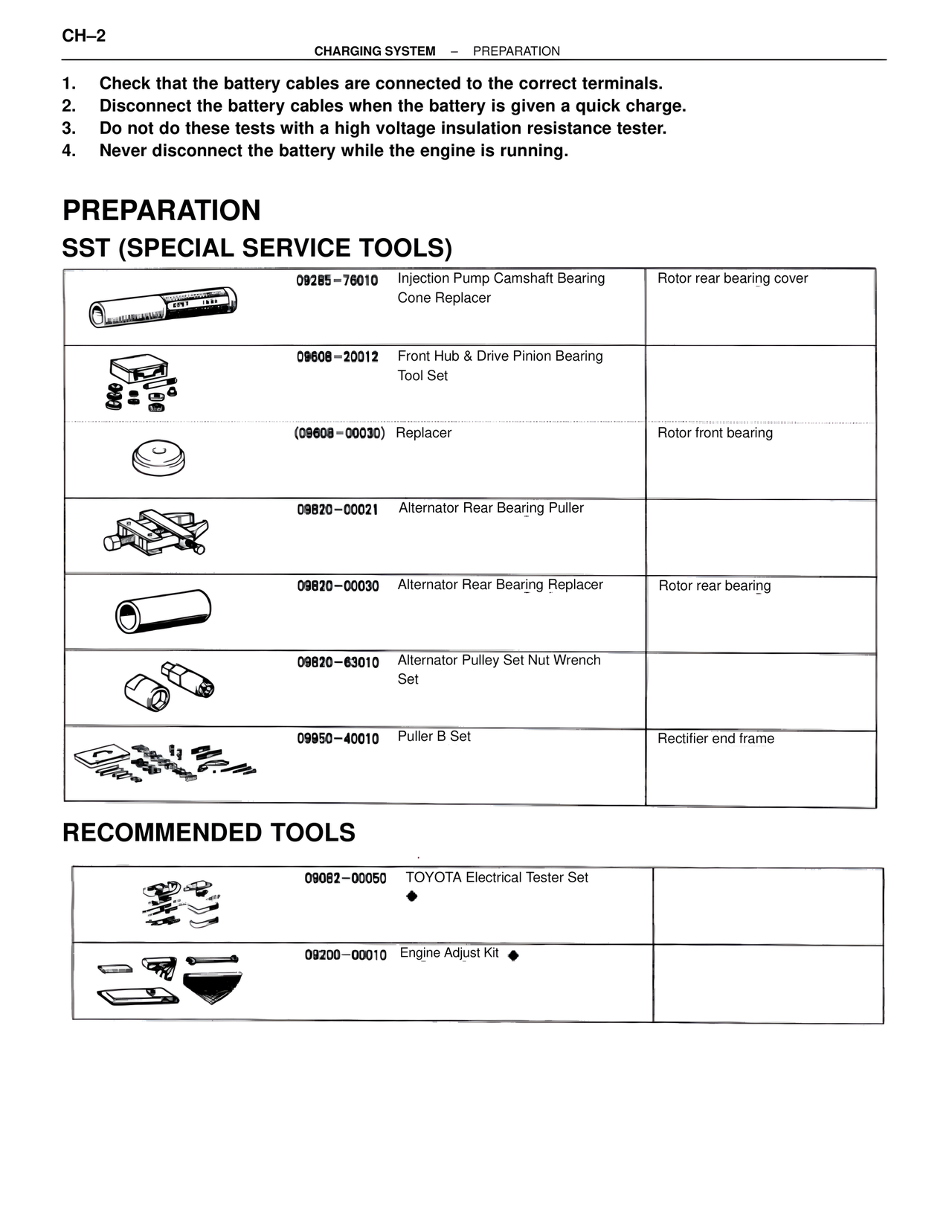

CH–2 CHARGING SYSTEM – PREPARATION 1. Check that the battery cables are connected to the correct terminals. 2. Disconnect the battery cables when the battery is given a quick charge. 3. Do not do these tests with a high voltage insulation resistance tester. 4. Never disconnect the battery while the engine is running. PREPARATION SST (SPECIAL SERVICE TOOLS) 09285–76010 Injection Pump Camshaft Bearing Cone Replacer Rotor rear bearing cover 09608–20012 Front Hub & Drive Pinion Bearing Tool Set (09608–00030) Replacer Rotor front bearing 09820–00021 Alternator Rear Bearing Puller 09820–00030 Alternator Rear Bearing Replacer Rotor rear bearing 09820–63010 Alternator Pulley Set Nut Wrench Set 09950–40010 Puller B Set Rectifier end frame RECOMMENDED TOOLS 09082–00050 TOYOTA Electrical Tester Set ♦ 09200–00010 Engine Adjust Kit ♦
