CLUTCH – CLUTCH RELEASE CYLINDER(2JZ–GTE)

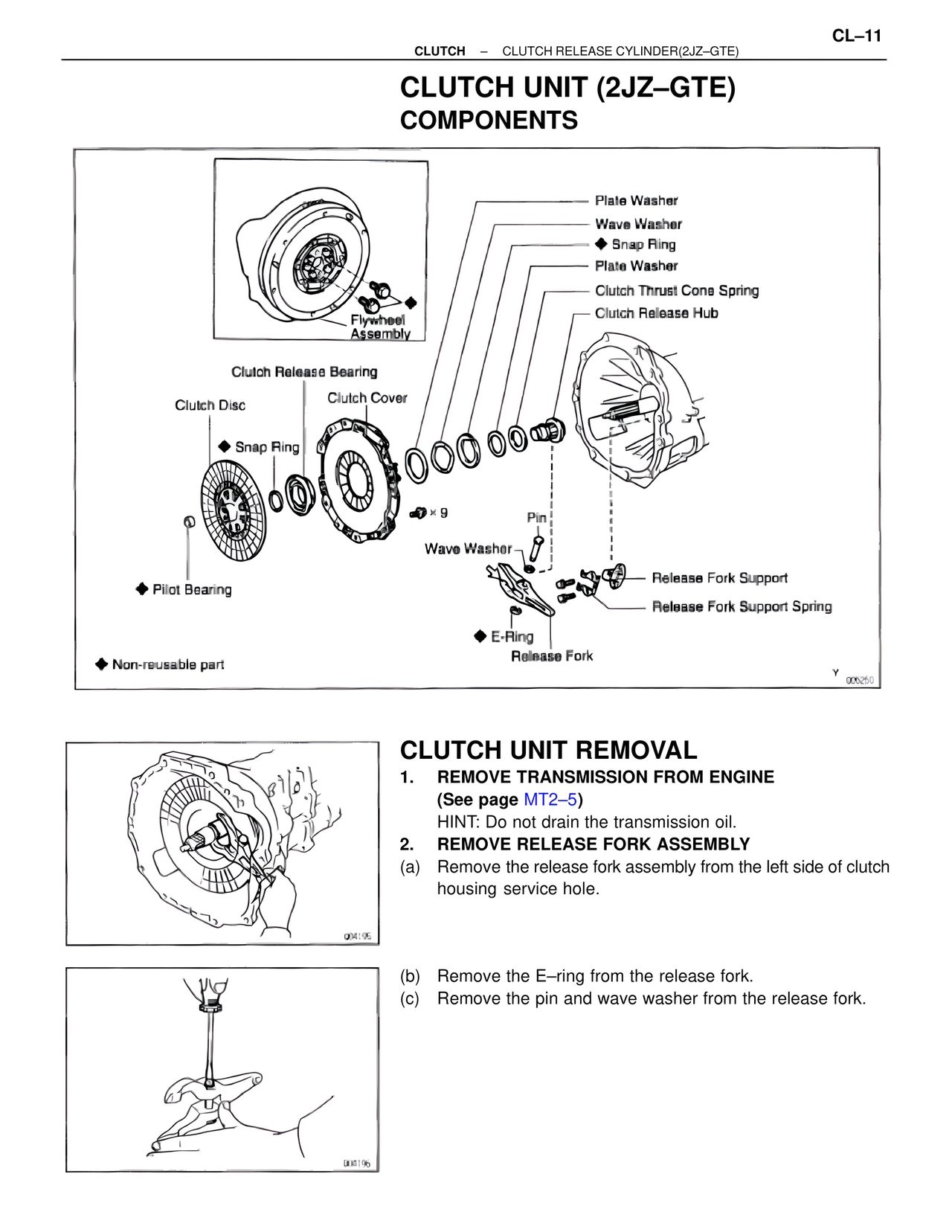

CLUTCH UNIT (2JZ–GTE)
COMPONENTS
Plate Washer
Wave Washer
◆ Snap Ring
Plate Washer
Clutch Thrust Cone Spring
Clutch Release Hub
Flywheel
Assembly
Clutch Release Bearing
Clutch Cover
Clutch Disc
◆ Snap Ring
⊕ x 9
Pin
Wave Washer
Release Fork Support
Release Fork Support Spring
◆ E-Ring
Release Fork
◆ Pilot Bearing
◆ Non-reusable part
Y 005250
CLUTCH UNIT REMOVAL
1. REMOVE TRANSMISSION FROM ENGINE
(See page MT2–5)
HINT: Do not drain the transmission oil.
2. REMOVE RELEASE FORK ASSEMBLY
(a) Remove the release fork assembly from the left side of clutch
housing service hole.
004195
(b) Remove the E–ring from the release fork.
(c) Remove the pin and wave washer from the release fork.
004196
