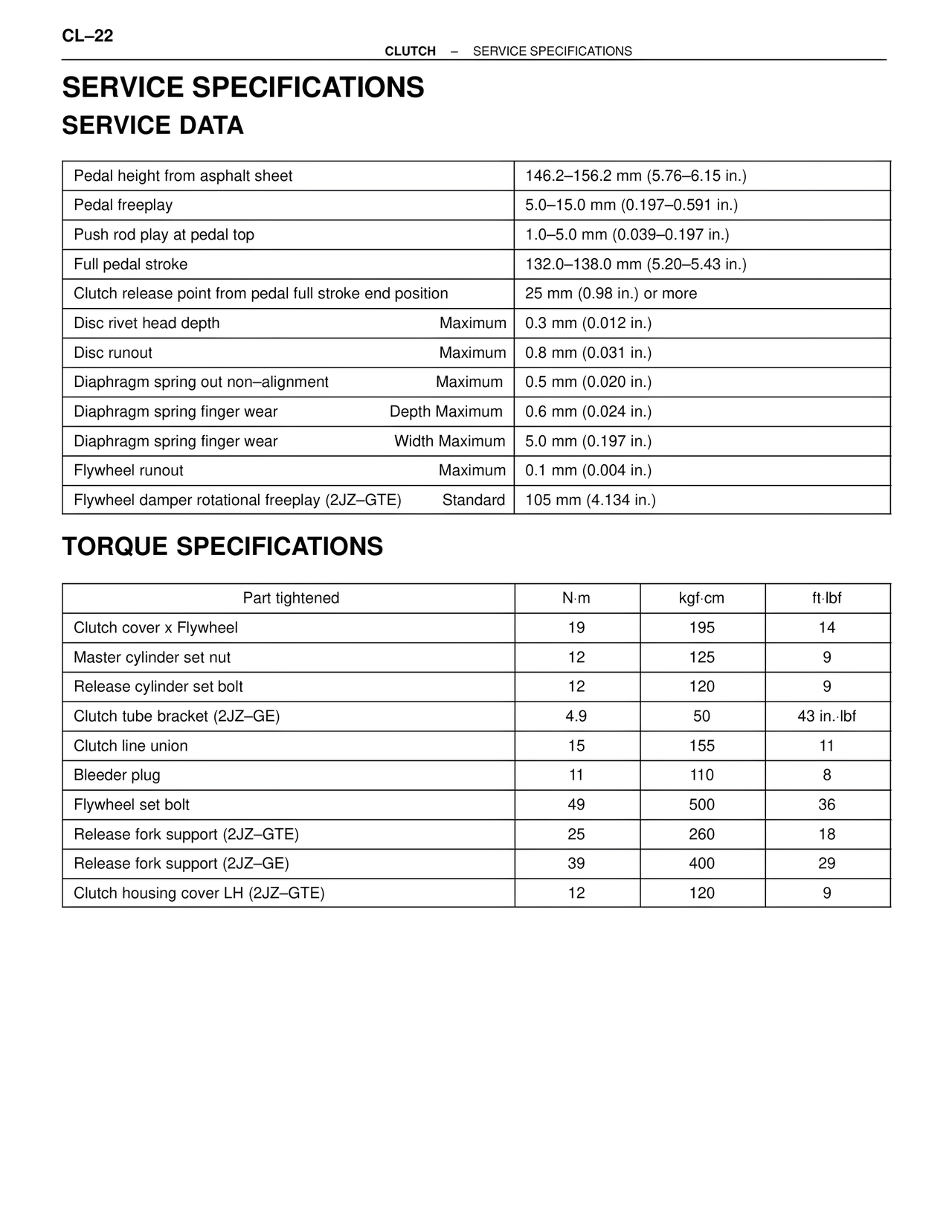

CL–22
CLUTCH – SERVICE SPECIFICATIONS
SERVICE SPECIFICATIONS
SERVICE DATA
Pedal height from asphalt sheet | 146.2–156.2 mm (5.76–6.15 in.)
Pedal freeplay | 5.0–15.0 mm (0.197–0.591 in.)
Push rod play at pedal top | 1.0–5.0 mm (0.039–0.197 in.)
Full pedal stroke | 132.0–138.0 mm (5.20–5.43 in.)
Clutch release point from pedal full stroke end position | 25 mm (0.98 in.) or more
Disc rivet head depth Maximum | 0.3 mm (0.012 in.)
Disc runout Maximum | 0.8 mm (0.031 in.)
Diaphragm spring out non–alignment Maximum | 0.5 mm (0.020 in.)
Diaphragm spring finger wear Depth Maximum | 0.6 mm (0.024 in.)
Diaphragm spring finger wear Width Maximum | 5.0 mm (0.197 in.)
Flywheel runout Maximum | 0.1 mm (0.004 in.)
Flywheel damper rotational freeplay (2JZ–GTE) Standard | 105 mm (4.134 in.)
TORQUE SPECIFICATIONS
Part tightened | N·m | kgf·cm | ft·lbf
Clutch cover x Flywheel | 19 | 195 | 14
Master cylinder set nut | 12 | 125 | 9
Release cylinder set bolt | 12 | 120 | 9
Clutch tube bracket (2JZ–GE) | 4.9 | 50 | 43 in.·lbf
Clutch line union | 15 | 155 | 11
Bleeder plug | 11 | 110 | 8
Flywheel set bolt | 49 | 500 | 36
Release fork support (2JZ–GTE) | 25 | 260 | 18
Release fork support (2JZ–GE) | 39 | 400 | 29
Clutch housing cover LH (2JZ–GTE) | 12 | 120 | 9
