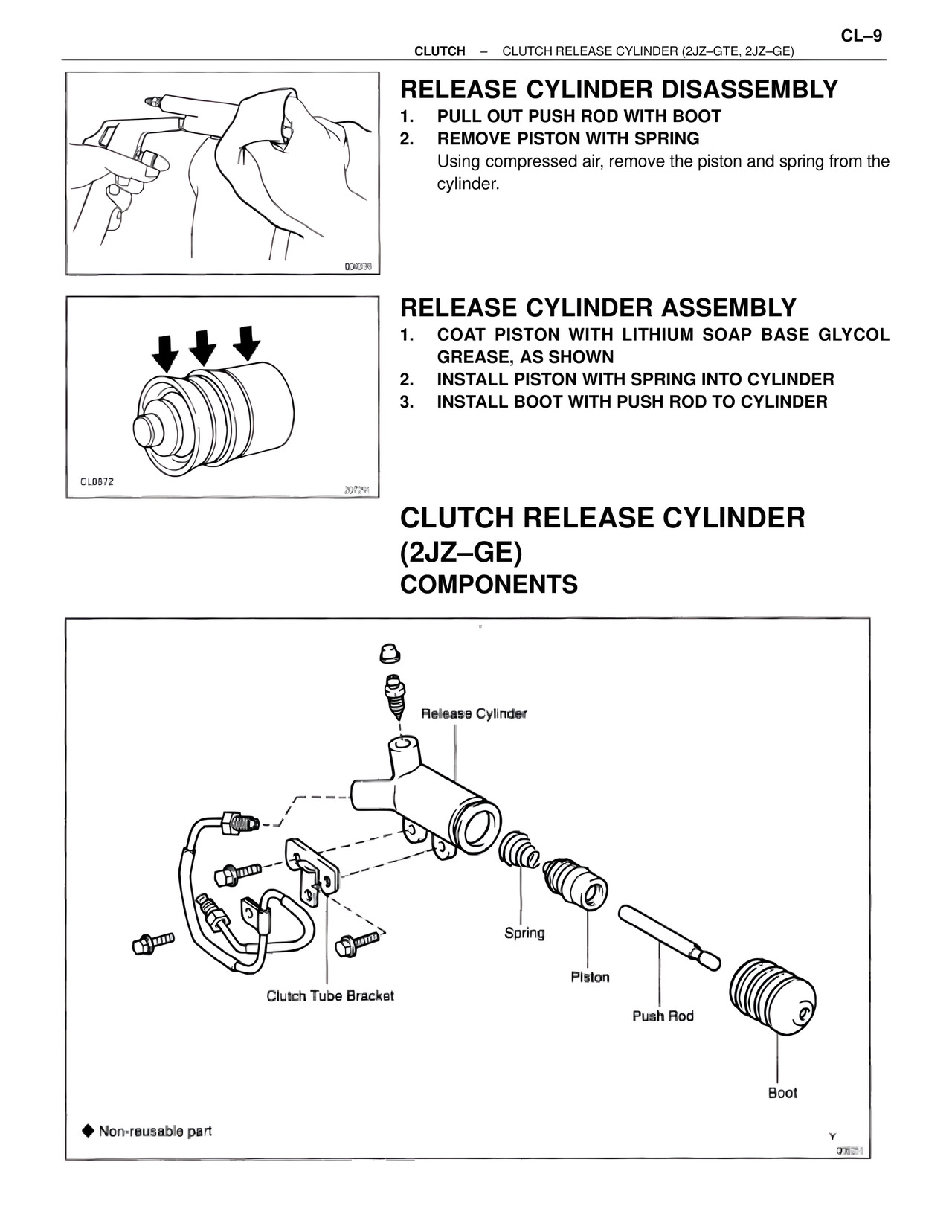

CL–9 CLUTCH – CLUTCH RELEASE CYLINDER (2JZ–GTE, 2JZ–GE) RELEASE CYLINDER DISASSEMBLY 1. PULL OUT PUSH ROD WITH BOOT 2. REMOVE PISTON WITH SPRING Using compressed air, remove the piston and spring from the cylinder. RELEASE CYLINDER ASSEMBLY 1. COAT PISTON WITH LITHIUM SOAP BASE GLYCOL GREASE, AS SHOWN 2. INSTALL PISTON WITH SPRING INTO CYLINDER 3. INSTALL BOOT WITH PUSH ROD TO CYLINDER CLUTCH RELEASE CYLINDER (2JZ–GE) COMPONENTS Release Cylinder Spring Piston Push Rod Boot Clutch Tube Bracket ♦ Non-reusable part CL0572 004338 207291 Y 006251
