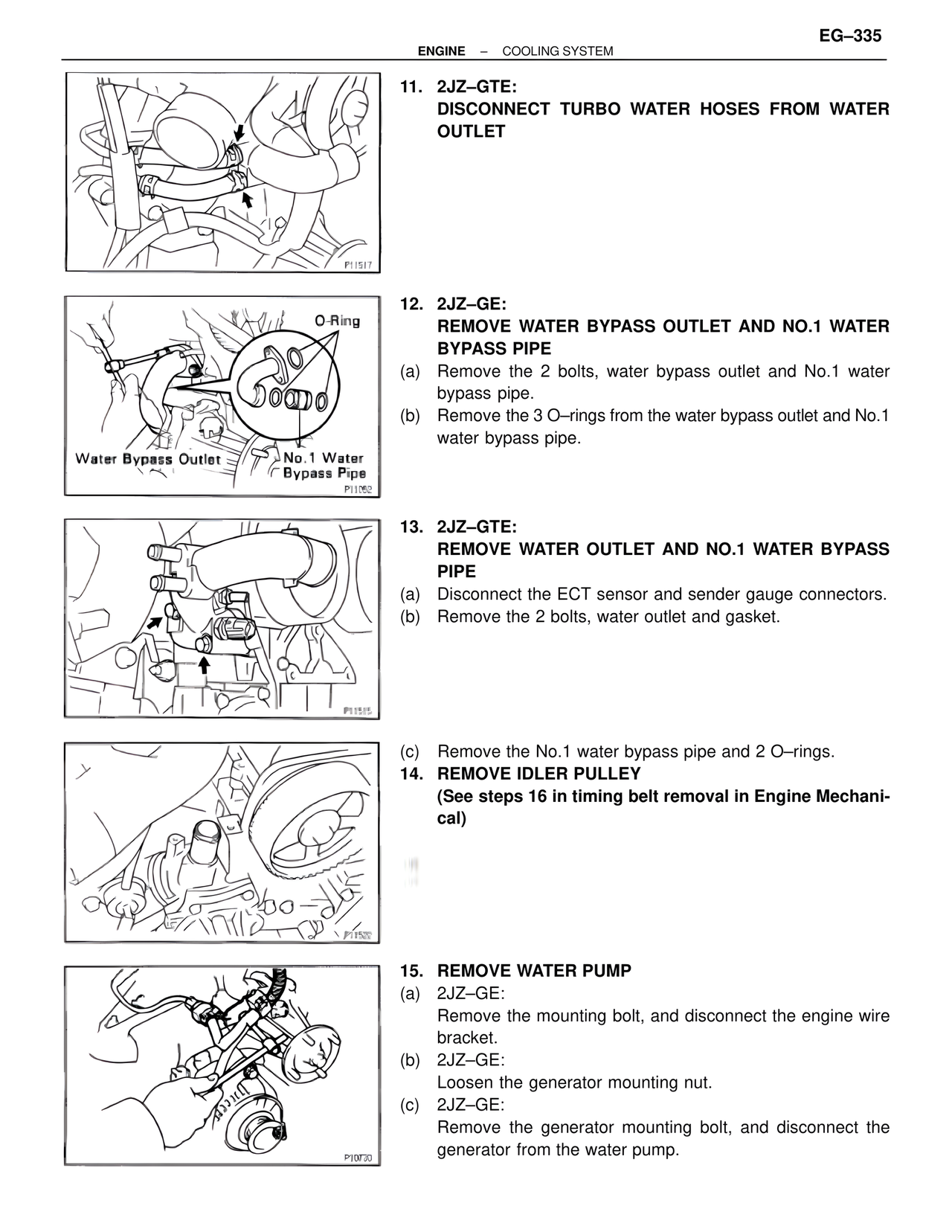

EG–335 ENGINE – COOLING SYSTEM 11. 2JZ–GTE: DISCONNECT TURBO WATER HOSES FROM WATER OUTLET P11517 O-Ring Water Bypass Outlet No.1 Water Bypass Pipe P11062 12. 2JZ–GE: REMOVE WATER BYPASS OUTLET AND NO.1 WATER BYPASS PIPE (a) Remove the 2 bolts, water bypass outlet and No.1 water bypass pipe. (b) Remove the 3 O–rings from the water bypass outlet and No.1 water bypass pipe. P11535 13. 2JZ–GTE: REMOVE WATER OUTLET AND NO.1 WATER BYPASS PIPE (a) Disconnect the ECT sensor and sender gauge connectors. (b) Remove the 2 bolts, water outlet and gasket. P11522 (c) Remove the No.1 water bypass pipe and 2 O–rings. 14. REMOVE IDLER PULLEY (See steps 16 in timing belt removal in Engine Mechani- cal) P10W30 15. REMOVE WATER PUMP (a) 2JZ–GE: Remove the mounting bolt, and disconnect the engine wire bracket. (b) 2JZ–GE: Loosen the generator mounting nut. (c) 2JZ–GE: Remove the generator mounting bolt, and disconnect the generator from the water pump.
