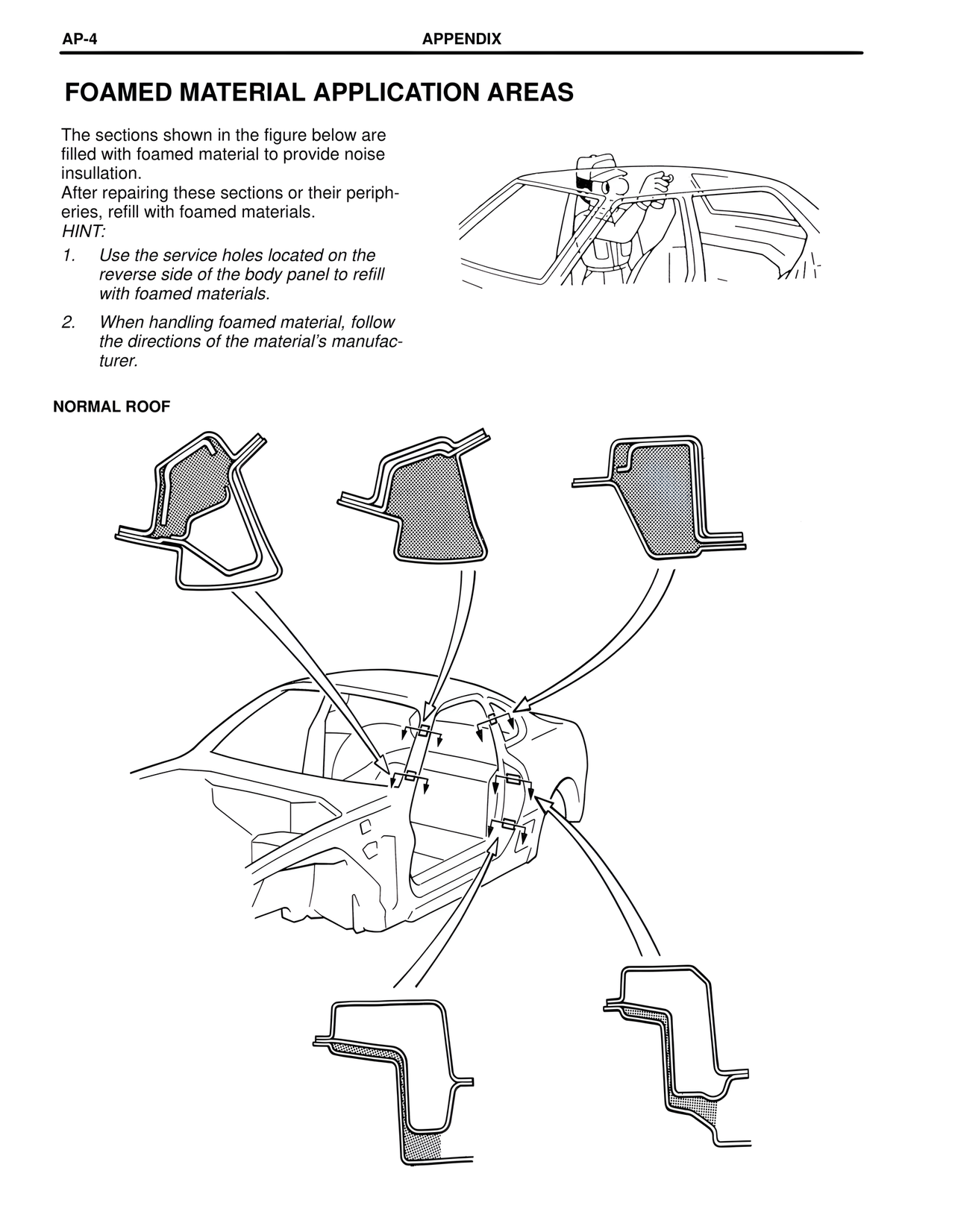

AP-4 APPENDIX
FOAMED MATERIAL APPLICATION AREAS
The sections shown in the figure below are
filled with foamed material to provide noise
insullation.
After repairing these sections or their periph-
eries, refill with foamed materials.
HINT:
1. Use the service holes located on the
reverse side of the body panel to refill
with foamed materials.
2. When handling foamed material, follow
the directions of the material's manufac-
turer.
NORMAL ROOF
