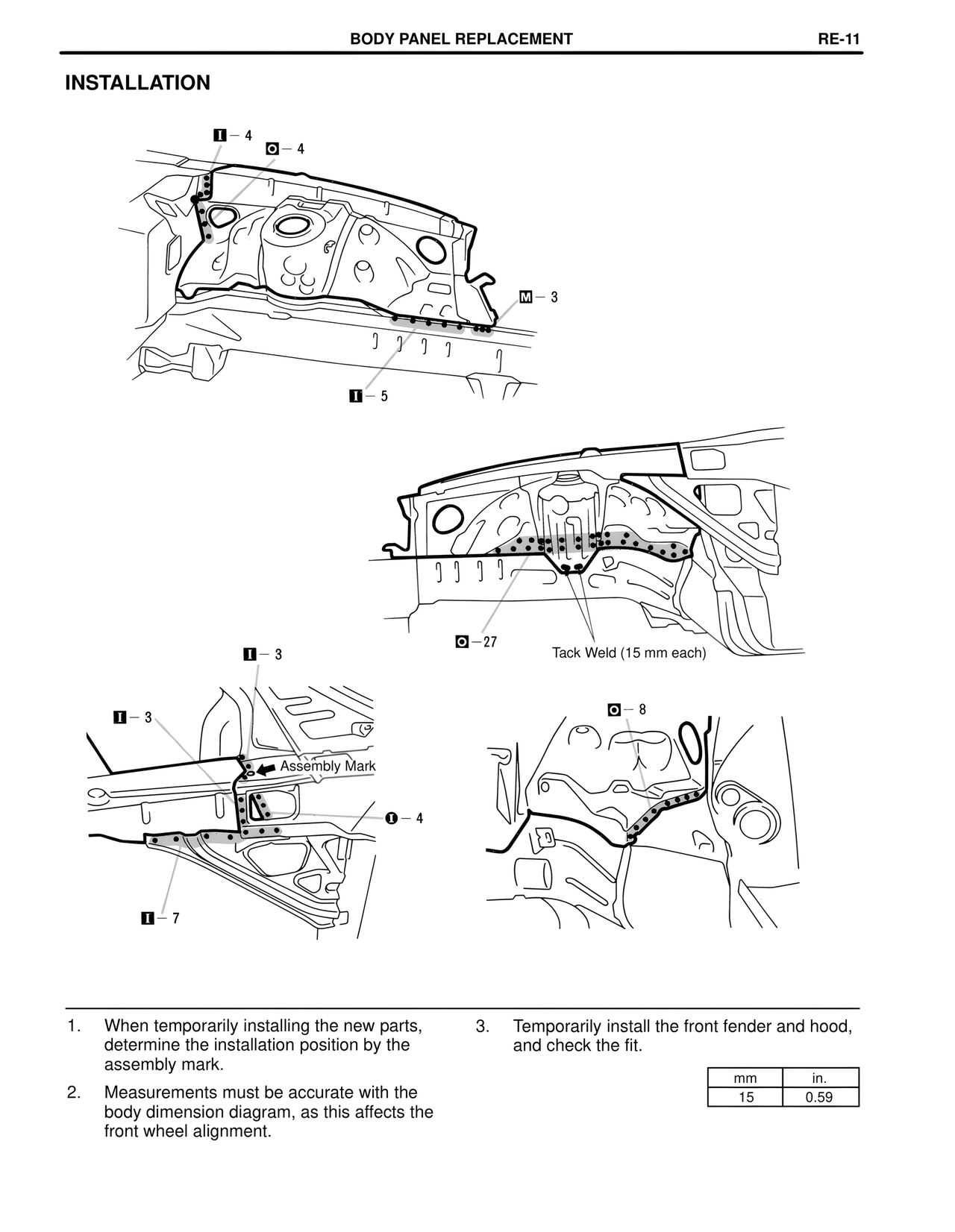

BODY PANEL REPLACEMENT
RE-11
INSTALLATION
I — 4
O — 4
M — 3
I — 5
O — 27
Tack Weld (15 mm each)
I — 3
I — 3
Assembly Mark
O — 4
I — 7
O — 8
1. When temporarily installing the new parts, determine the installation position by the assembly mark.
2. Measurements must be accurate with the body dimension diagram, as this affects the front wheel alignment.
3. Temporarily install the front fender and hood, and check the fit.
mm in.
15 0.59
