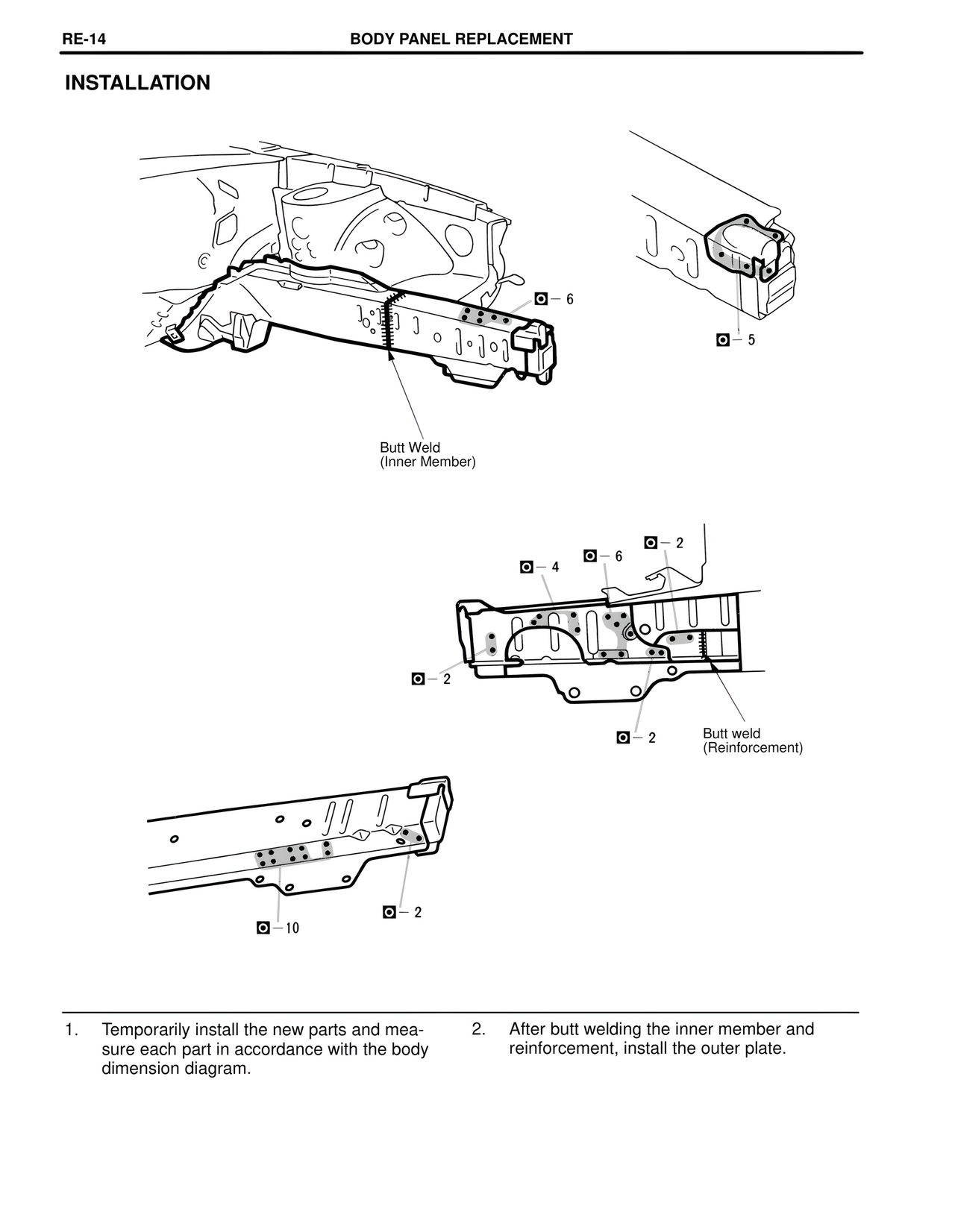

RE-14 BODY PANEL REPLACEMENT
INSTALLATION
O - 6
Butt Weld
(Inner Member)
O - 5
O - 2
O - 6
O - 4
O - 2
O - 2 Butt weld
(Reinforcement)
O - 2
O - 10
1. Temporarily install the new parts and mea- 2. After butt welding the inner member and
sure each part in accordance with the body reinforcement, install the outer plate.
dimension diagram.
