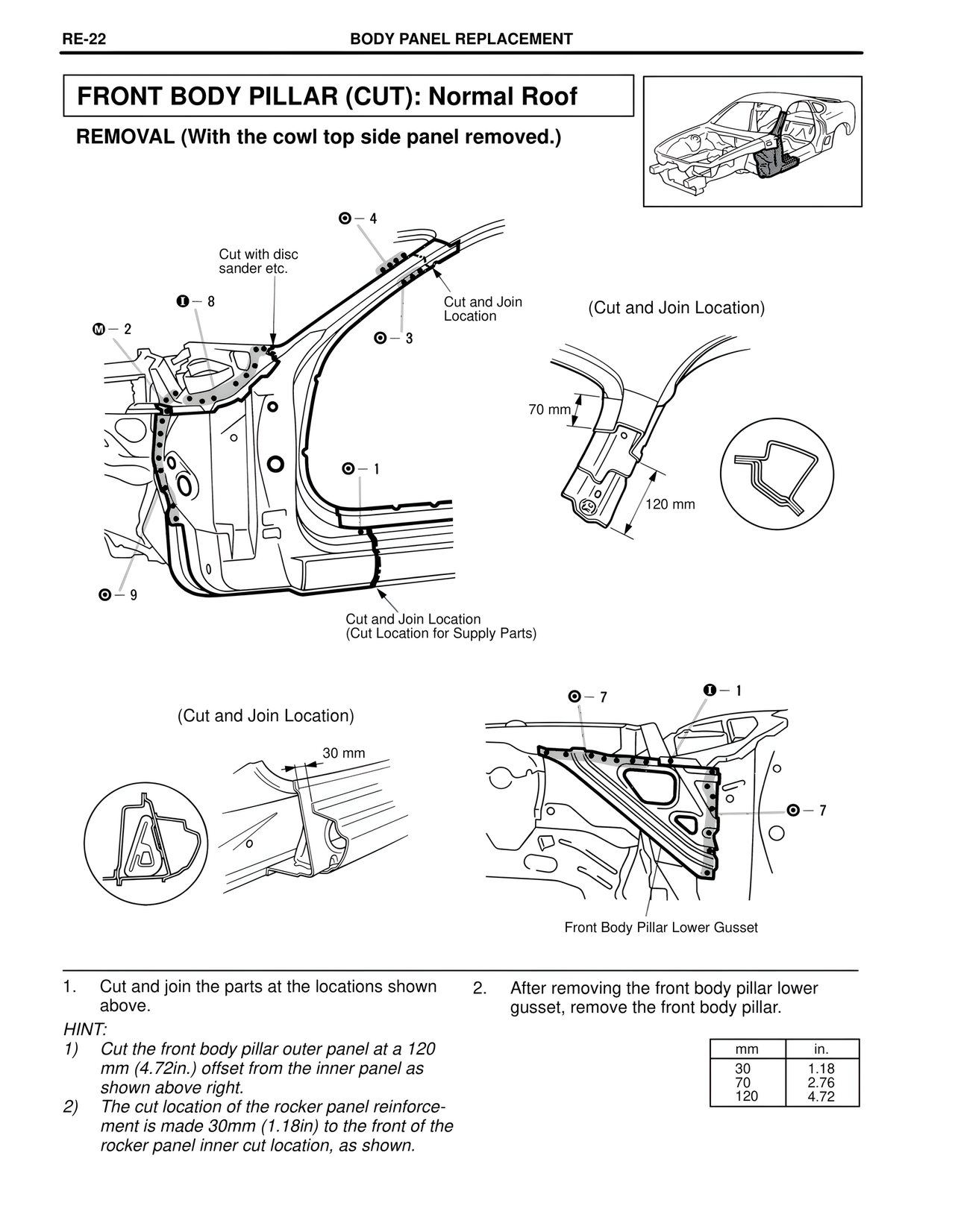

RE-22 BODY PANEL REPLACEMENT FRONT BODY PILLAR (CUT): Normal Roof REMOVAL (With the cowl top side panel removed.) Cut with disc sander etc. Cut and Join Location (Cut and Join Location) 70 mm 120 mm Cut and Join Location (Cut Location for Supply Parts) (Cut and Join Location) 30 mm Front Body Pillar Lower Gusset 1. Cut and join the parts at the locations shown above. HINT: 1) Cut the front body pillar outer panel at a 120 mm (4.72in.) offset from the inner panel as shown above right. 2) The cut location of the rocker panel reinforce- ment is made 30mm (1.18in) to the front of the rocker panel inner cut location, as shown. 2. After removing the front body pillar lower gusset, remove the front body pillar. mm in. 30 1.18 70 2.76 120 4.72
