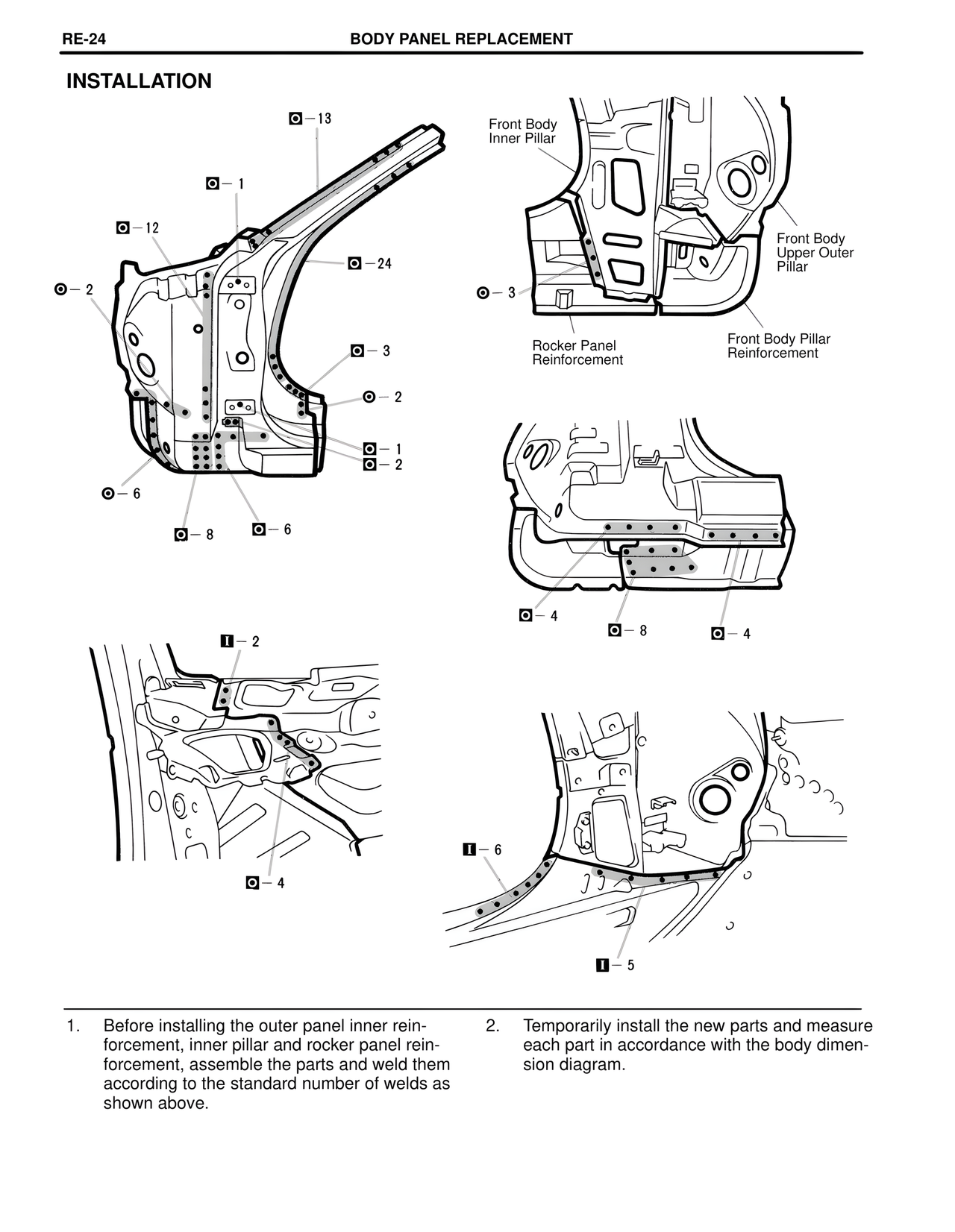

RE-24 BODY PANEL REPLACEMENT INSTALLATION ⊙-13 ⊙-1 ⊙-12 ⊙-24 ⊙-2 ⊙-3 ⊙-2 ⊙-1 ⊙-2 ⊙-6 ⊙-8 ⊙-6 Front Body Inner Pillar Front Body Upper Outer Pillar Rocker Panel Reinforcement Front Body Pillar Reinforcement ⊙-3 ⊙-4 ⊙-8 ⊙-4 ■-2 ⊙-4 ■-6 ■-5 1. Before installing the outer panel inner rein- forcement, inner pillar and rocker panel rein- forcement, assemble the parts and weld them according to the standard number of welds as shown above. 2. Temporarily install the new parts and measure each part in accordance with the body dimen- sion diagram.
