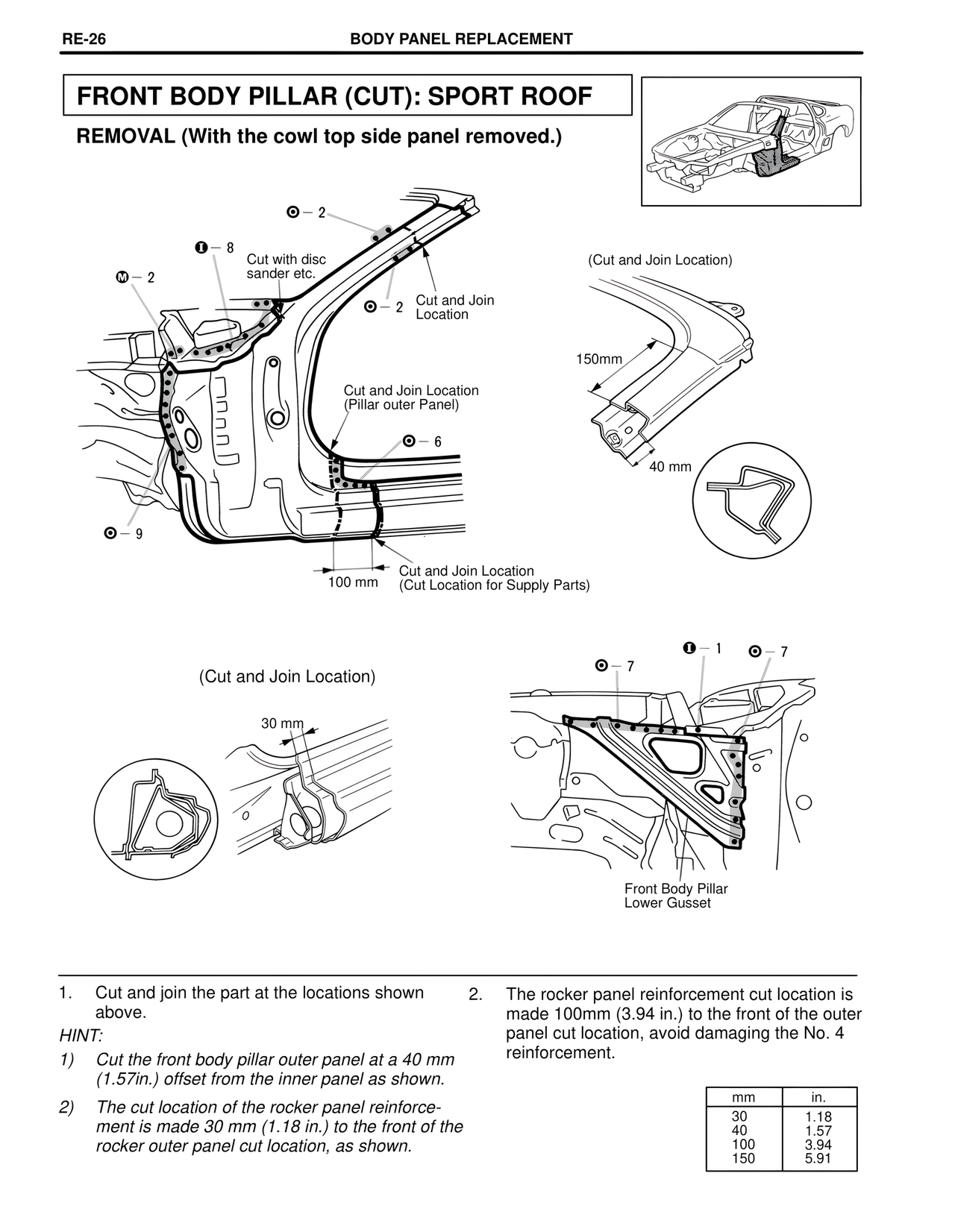

RE-26 BODY PANEL REPLACEMENT FRONT BODY PILLAR (CUT): SPORT ROOF REMOVAL (With the cowl top side panel removed.) ⊙ - 2 ❶ - 8 Cut with disc sander etc. Ⓜ - 2 ⊙ - 2 Cut and Join Location (Cut and Join Location) 150mm 40 mm Cut and Join Location (Pillar outer Panel) ⊙ - 6 ⊙ - 9 100 mm Cut and Join Location (Cut Location for Supply Parts) (Cut and Join Location) 30 mm ⊙ - 7 ❶ - 1 ⊙ - 7 Front Body Pillar Lower Gusset 1. Cut and join the part at the locations shown above. HINT: 1) Cut the front body pillar outer panel at a 40 mm (1.57in.) offset from the inner panel as shown. 2) The cut location of the rocker panel reinforce- ment is made 30 mm (1.18 in.) to the front of the rocker outer panel cut location, as shown. 2. The rocker panel reinforcement cut location is made 100mm (3.94 in.) to the front of the outer panel cut location, avoid damaging the No. 4 reinforcement. mm in. 30 1.18 40 1.57 100 3.94 150 5.91
