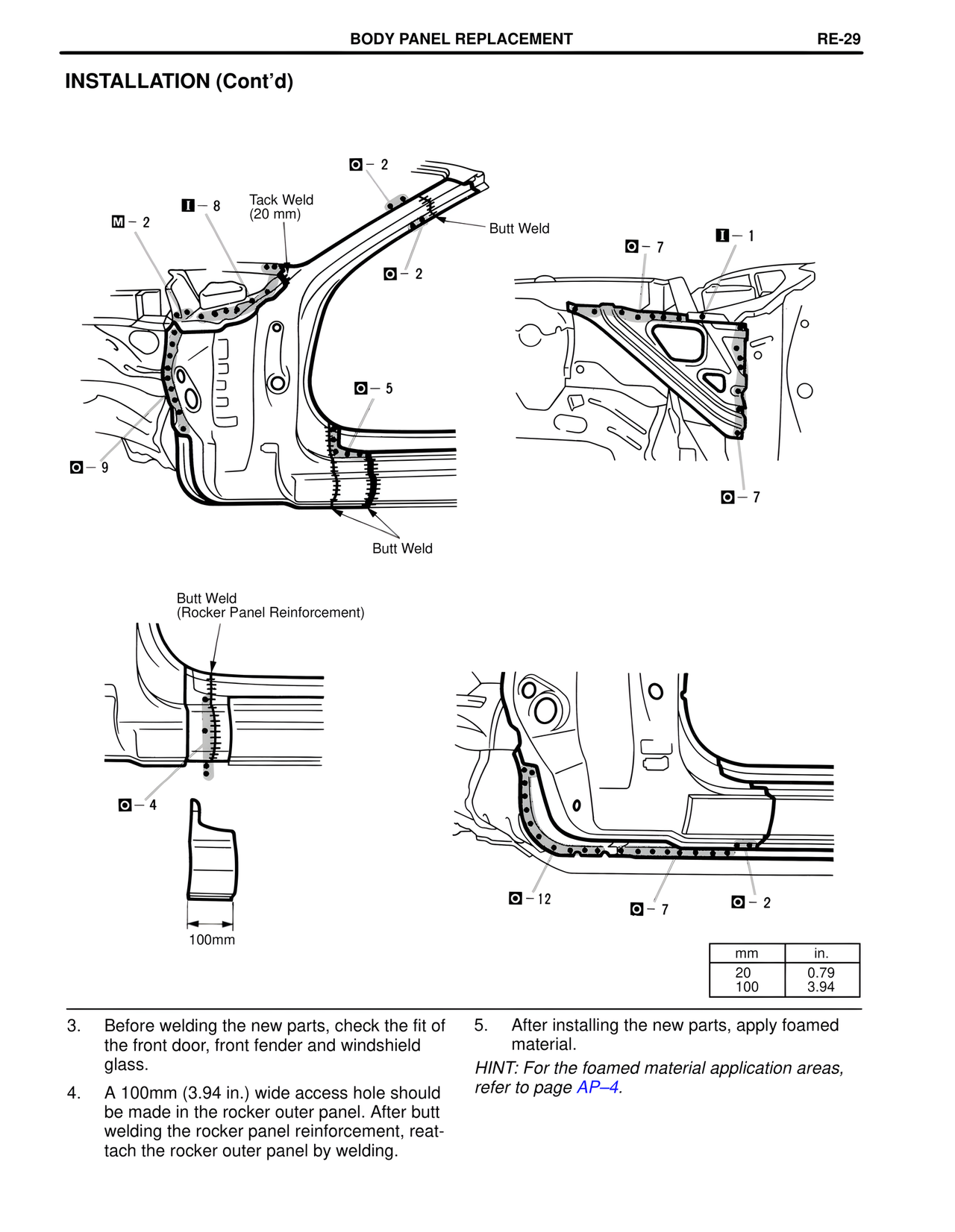

BODY PANEL REPLACEMENT
RE-29
INSTALLATION (Cont'd)
O - 2
Tack Weld
(20 mm)
M - 2
I - 8
Butt Weld
O - 2
O - 7
I - 1
O - 5
O - 9
O - 7
Butt Weld
Butt Weld
(Rocker Panel Reinforcement)
O - 4
100mm
O
O
0
O - 12
O - 7
O - 2
mm in.
20 0.79
100 3.94
3. Before welding the new parts, check the fit of
the front door, front fender and windshield
glass.
4. A 100mm (3.94 in.) wide access hole should
be made in the rocker outer panel. After butt
welding the rocker panel reinforcement, reat-
tach the rocker outer panel by welding.
5. After installing the new parts, apply foamed
material.
HINT: For the foamed material application areas,
refer to page AP–4.
