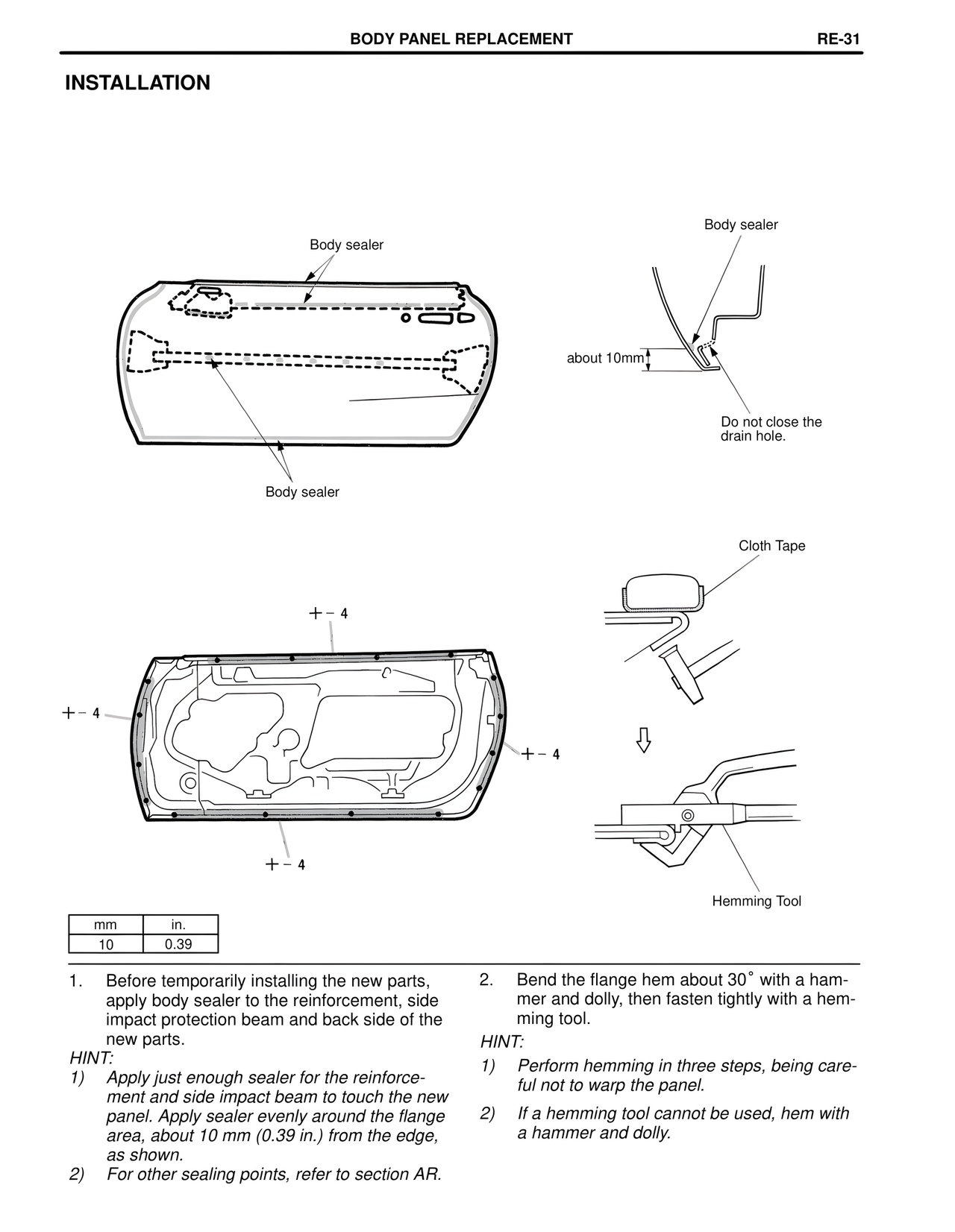

BODY PANEL REPLACEMENT RE-31 INSTALLATION Body sealer Body sealer about 10mm Do not close the drain hole. Body sealer Cloth Tape + - 4 + - 4 + - 4 + - 4 Hemming Tool mm in. 10 0.39 1. Before temporarily installing the new parts, apply body sealer to the reinforcement, side impact protection beam and back side of the new parts. HINT: 1) Apply just enough sealer for the reinforce- ment and side impact beam to touch the new panel. Apply sealer evenly around the flange area, about 10 mm (0.39 in.) from the edge, as shown. 2) For other sealing points, refer to section AR. 2. Bend the flange hem about 30° with a ham- mer and dolly, then fasten tightly with a hem- ming tool. HINT: 1) Perform hemming in three steps, being care- ful not to warp the panel. 2) If a hemming tool cannot be used, hem with a hammer and dolly.
