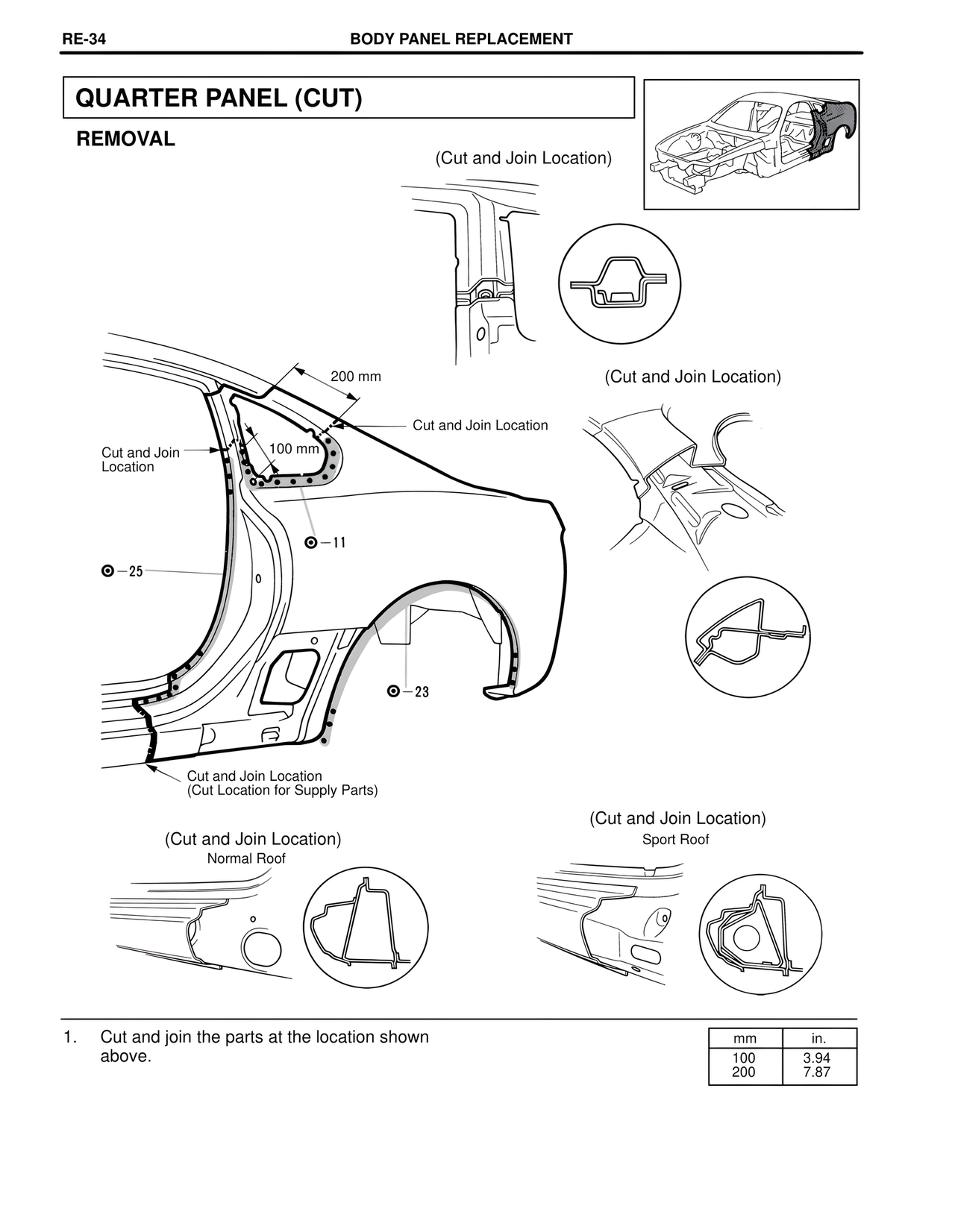

RE-34 BODY PANEL REPLACEMENT
QUARTER PANEL (CUT)
REMOVAL
(Cut and Join Location)
200 mm
Cut and Join Location
Cut and Join
Location
100 mm
(Cut and Join Location)
⊙ — 11
⊙ — 25
⊙ — 23
Cut and Join Location
(Cut Location for Supply Parts)
(Cut and Join Location)
Normal Roof
(Cut and Join Location)
Sport Roof
1. Cut and join the parts at the location shown
above.
mm in.
100 3.94
200 7.87
