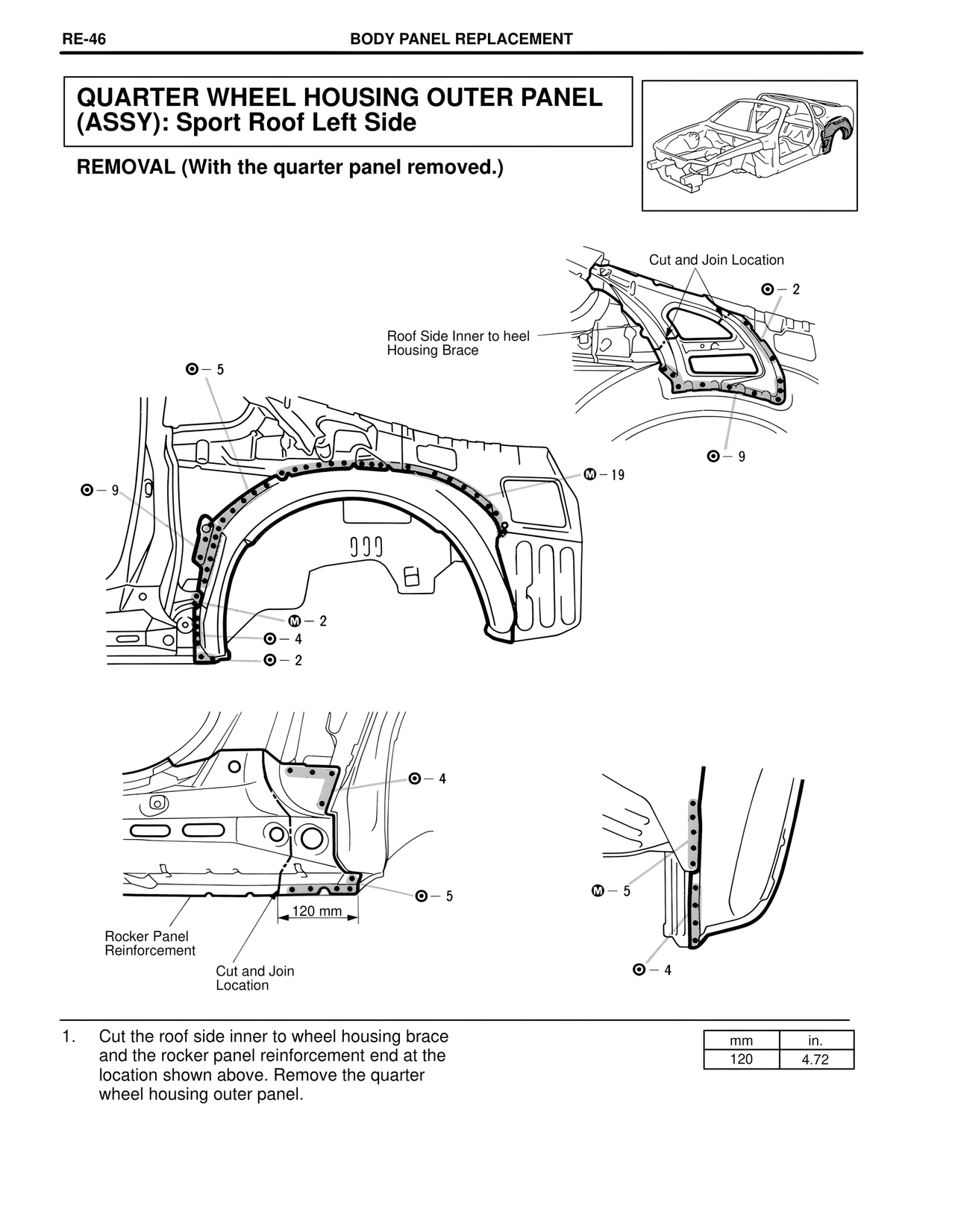

RE-46 BODY PANEL REPLACEMENT QUARTER WHEEL HOUSING OUTER PANEL (ASSY): Sport Roof Left Side REMOVAL (With the quarter panel removed.) Cut and Join Location ⊙ - 2 Roof Side Inner to heel Housing Brace ⊙ - 5 ⊙ - 9 M - 19 ⊙ - 9 M - 2 ⊙ - 4 ⊙ - 2 ⊙ - 4 ⊙ - 5 120 mm M - 5 ⊙ - 4 Rocker Panel Reinforcement Cut and Join Location 1. Cut the roof side inner to wheel housing brace and the rocker panel reinforcement end at the location shown above. Remove the quarter wheel housing outer panel. mm in. 120 4.72
