Collision Repair page 77

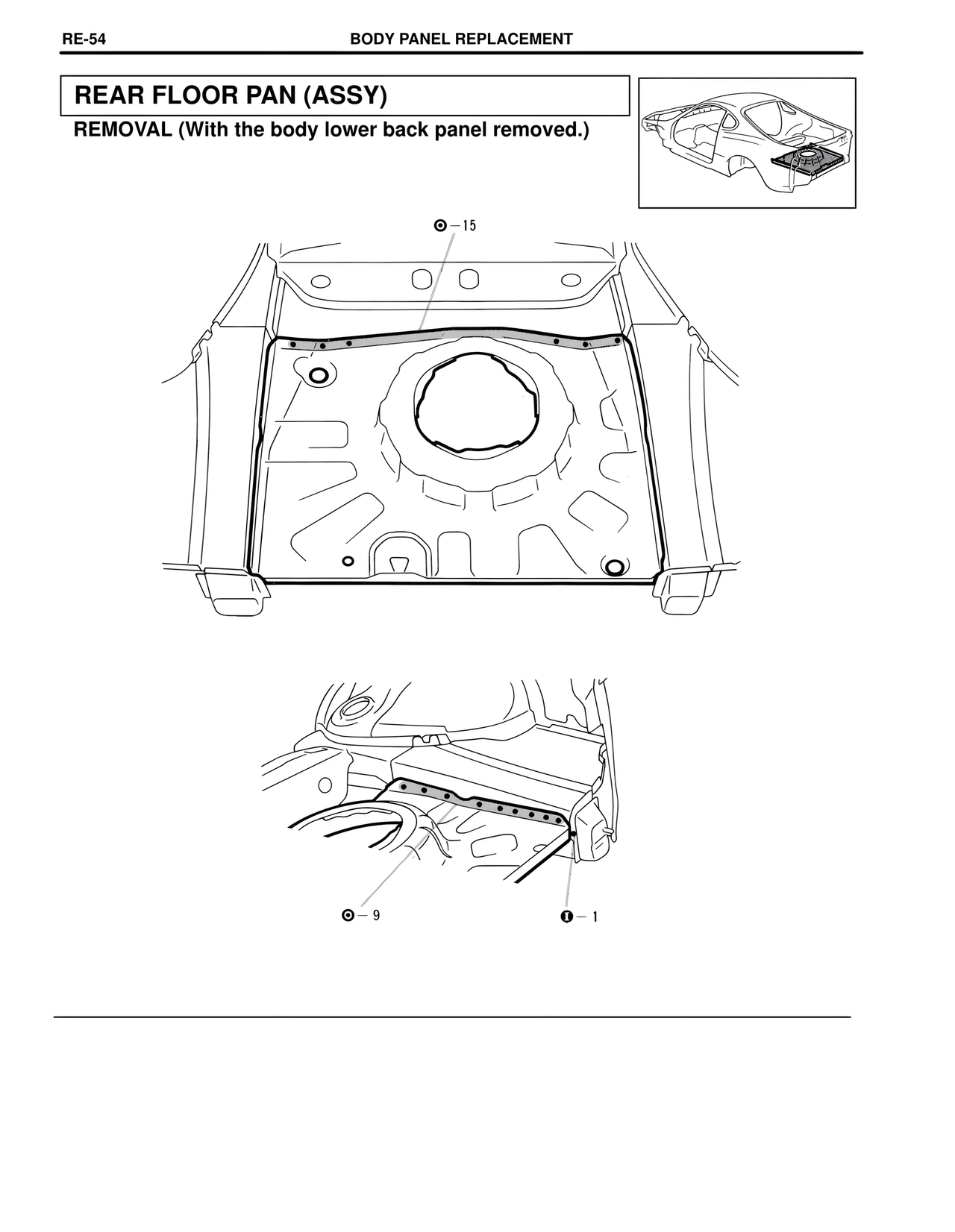

RE-54 BODY PANEL REPLACEMENT REAR FLOOR PAN (ASSY) REMOVAL (With the body lower back panel removed.) ⊙ - 15 ⊙ - 9 ● - 1
