TSRM/MK4 Supra/Collision Repair/p.83

← 082CR · 083084 →

Collision Repair page 83

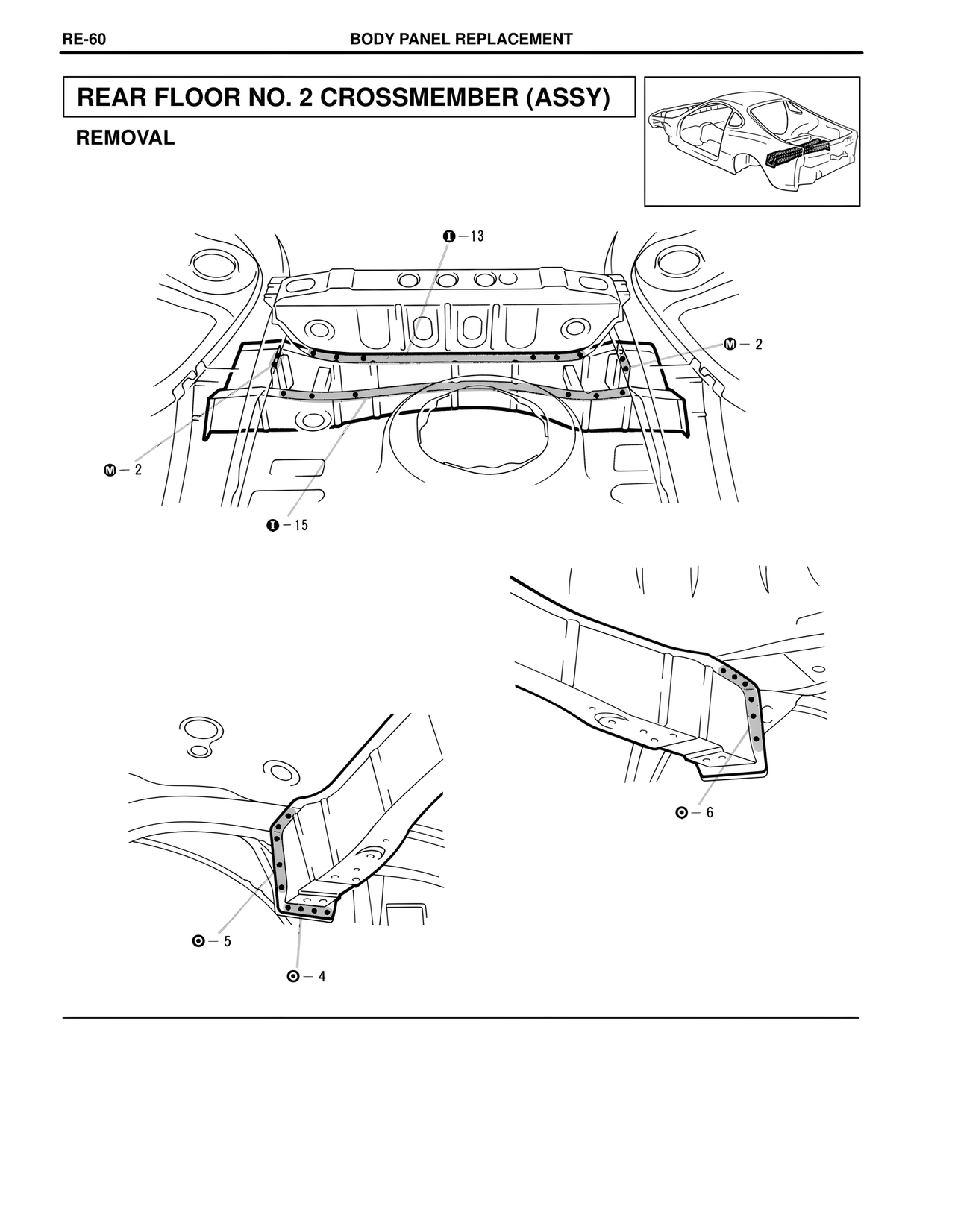

RE-60 BODY PANEL REPLACEMENT REAR FLOOR NO. 2 CROSSMEMBER (ASSY) REMOVAL ❶ - 13 Ⓜ - 2 Ⓜ - 2 ❶ - 15 ⊙ - 5 ⊙ - 4 ⊙ - 6
