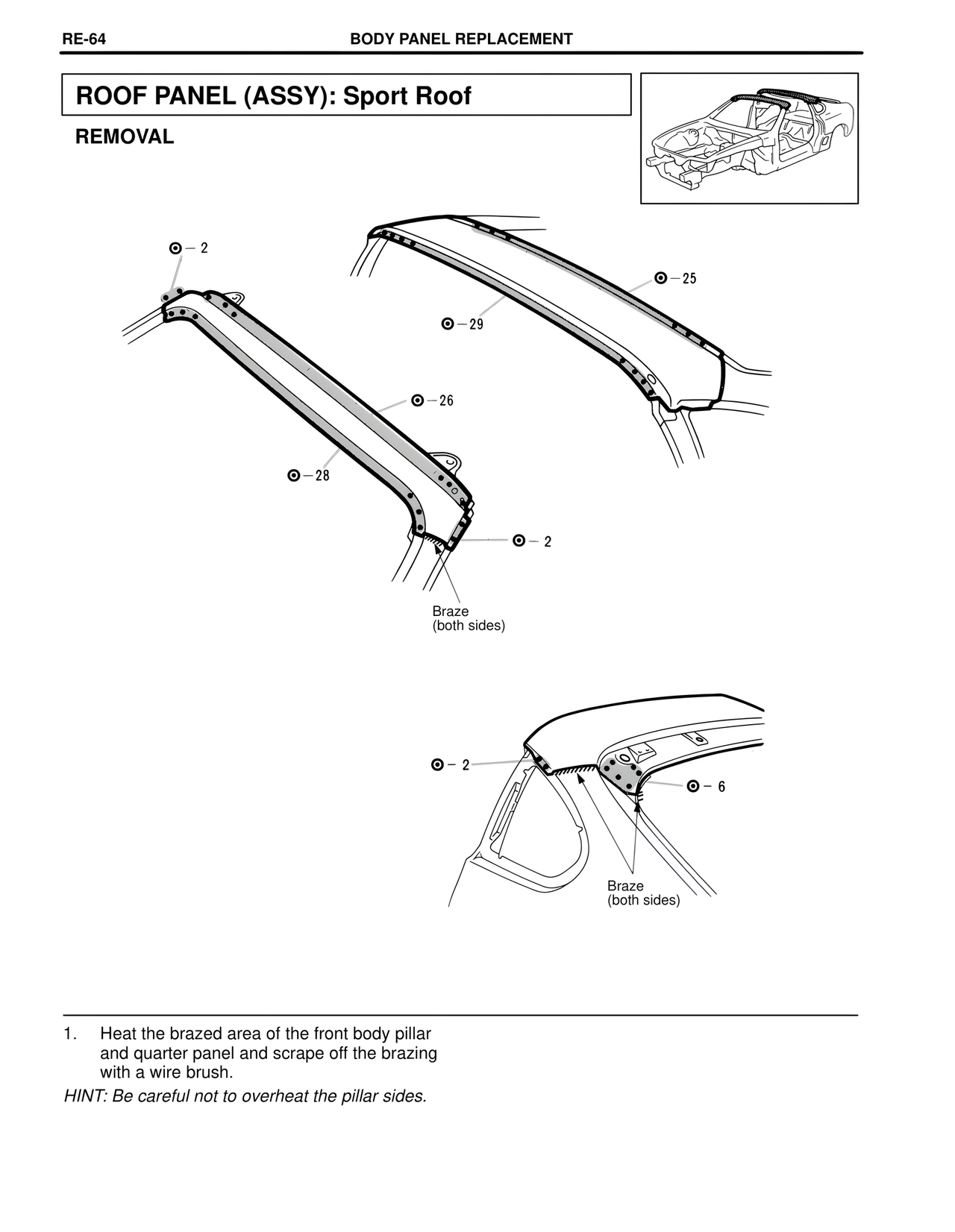

RE-64 BODY PANEL REPLACEMENT
ROOF PANEL (ASSY): Sport Roof
REMOVAL
⊙ - 2
⊙ - 25
⊙ - 29
⊙ - 26
⊙ - 28
⊙ - 2
Braze
(both sides)
⊙ - 2
⊙ - 6
Braze
(both sides)
1. Heat the brazed area of the front body pillar
and quarter panel and scrape off the brazing
with a wire brush.
HINT: Be careful not to overheat the pillar sides.
