AP-2 APPENDIX

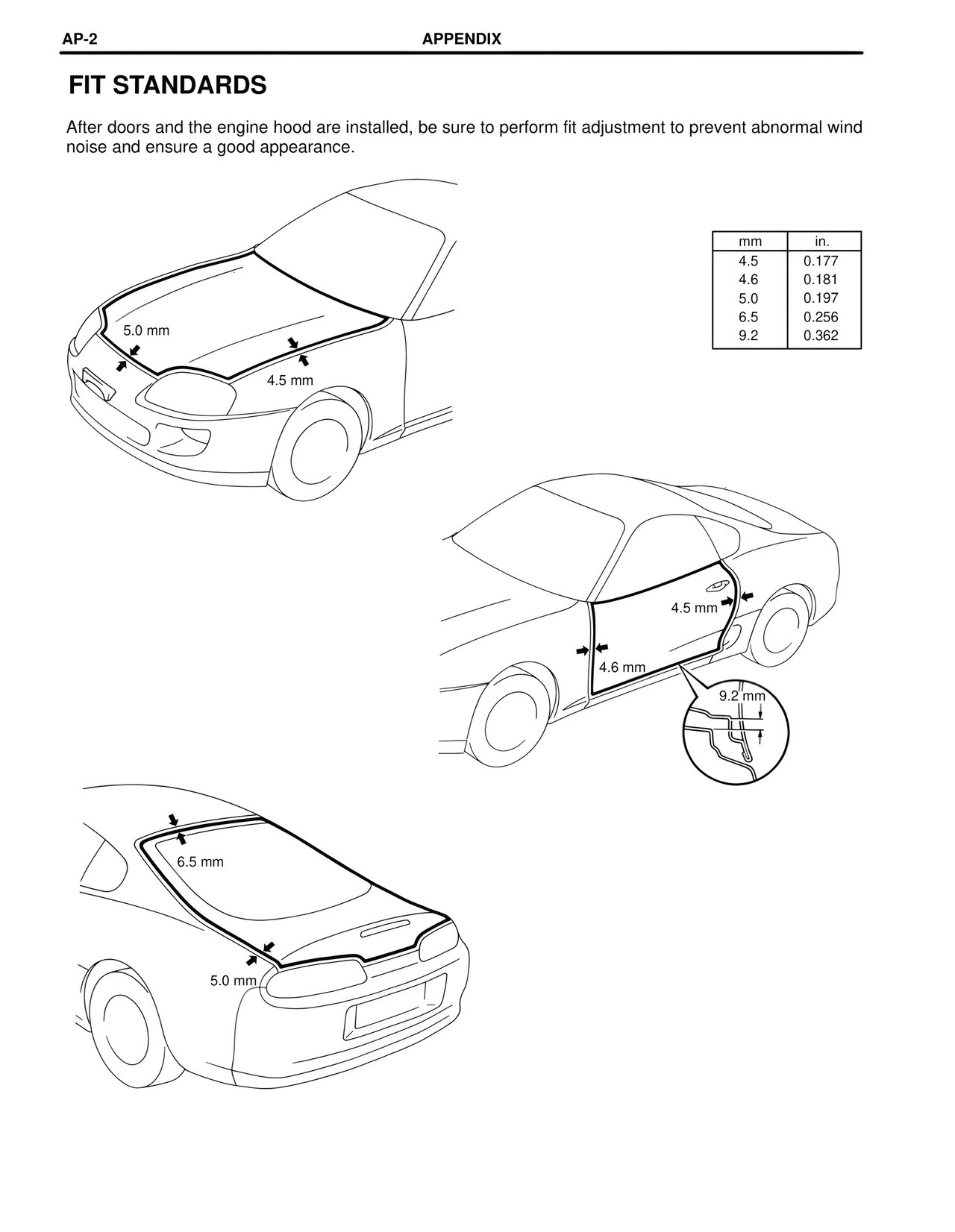

FIT STANDARDS
After doors and the engine hood are installed, be sure to perform fit adjustment to prevent abnormal wind noise and ensure a good appearance.
5.0 mm
4.5 mm
mm in.
4.5 0.177
4.6 0.181
5.0 0.197
6.5 0.256
9.2 0.362
4.5 mm
4.6 mm
9.2 mm
6.5 mm
5.0 mm
