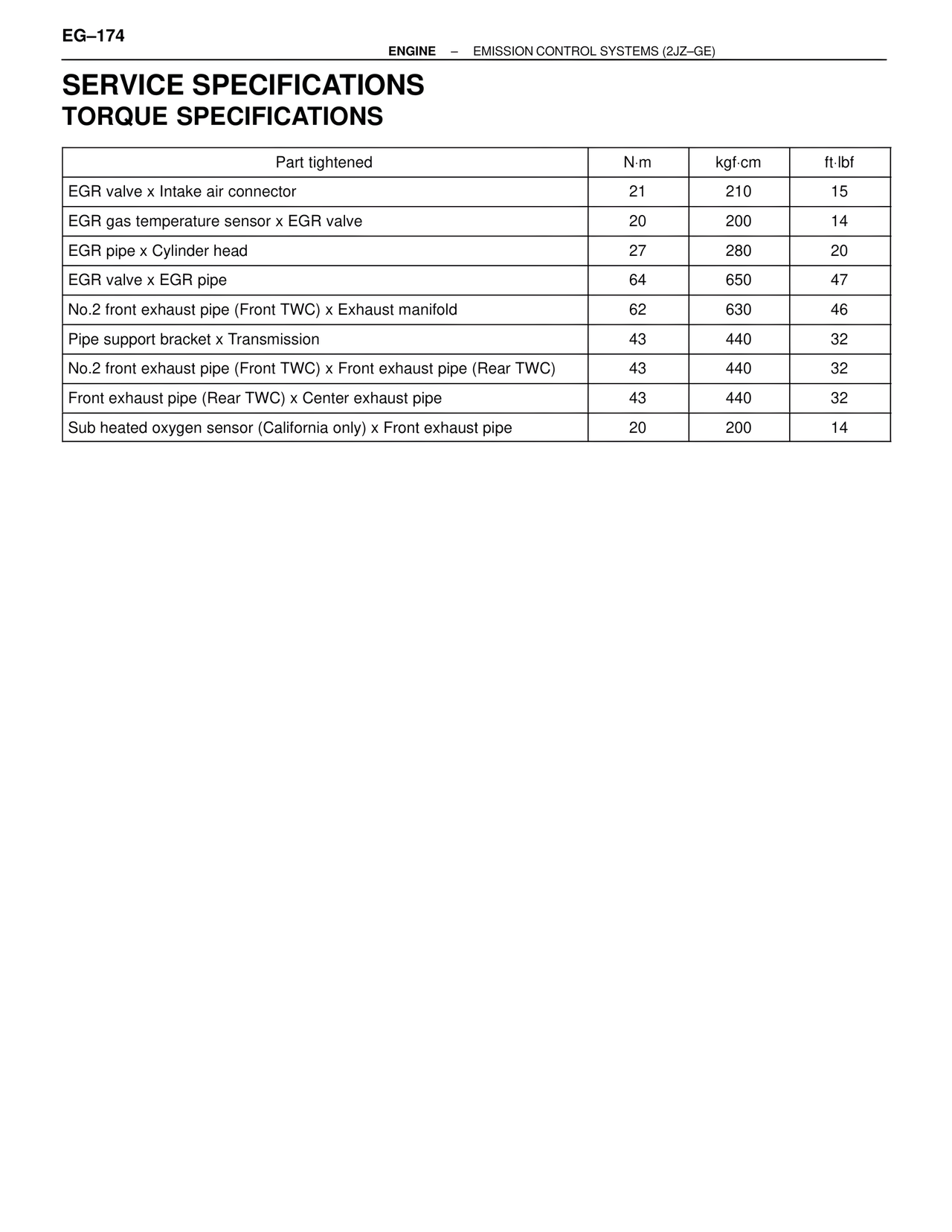

EG–174 ENGINE – EMISSION CONTROL SYSTEMS (2JZ–GE) SERVICE SPECIFICATIONS TORQUE SPECIFICATIONS Part tightened | N·m | kgf·cm | ft·lbf EGR valve x Intake air connector | 21 | 210 | 15 EGR gas temperature sensor x EGR valve | 20 | 200 | 14 EGR pipe x Cylinder head | 27 | 280 | 20 EGR valve x EGR pipe | 64 | 650 | 47 No.2 front exhaust pipe (Front TWC) x Exhaust manifold | 62 | 630 | 46 Pipe support bracket x Transmission | 43 | 440 | 32 No.2 front exhaust pipe (Front TWC) x Front exhaust pipe (Rear TWC) | 43 | 440 | 32 Front exhaust pipe (Rear TWC) x Center exhaust pipe | 43 | 440 | 32 Sub heated oxygen sensor (California only) x Front exhaust pipe | 20 | 200 | 14
