ENGINE – ENGINE MECHANICAL
EG–133

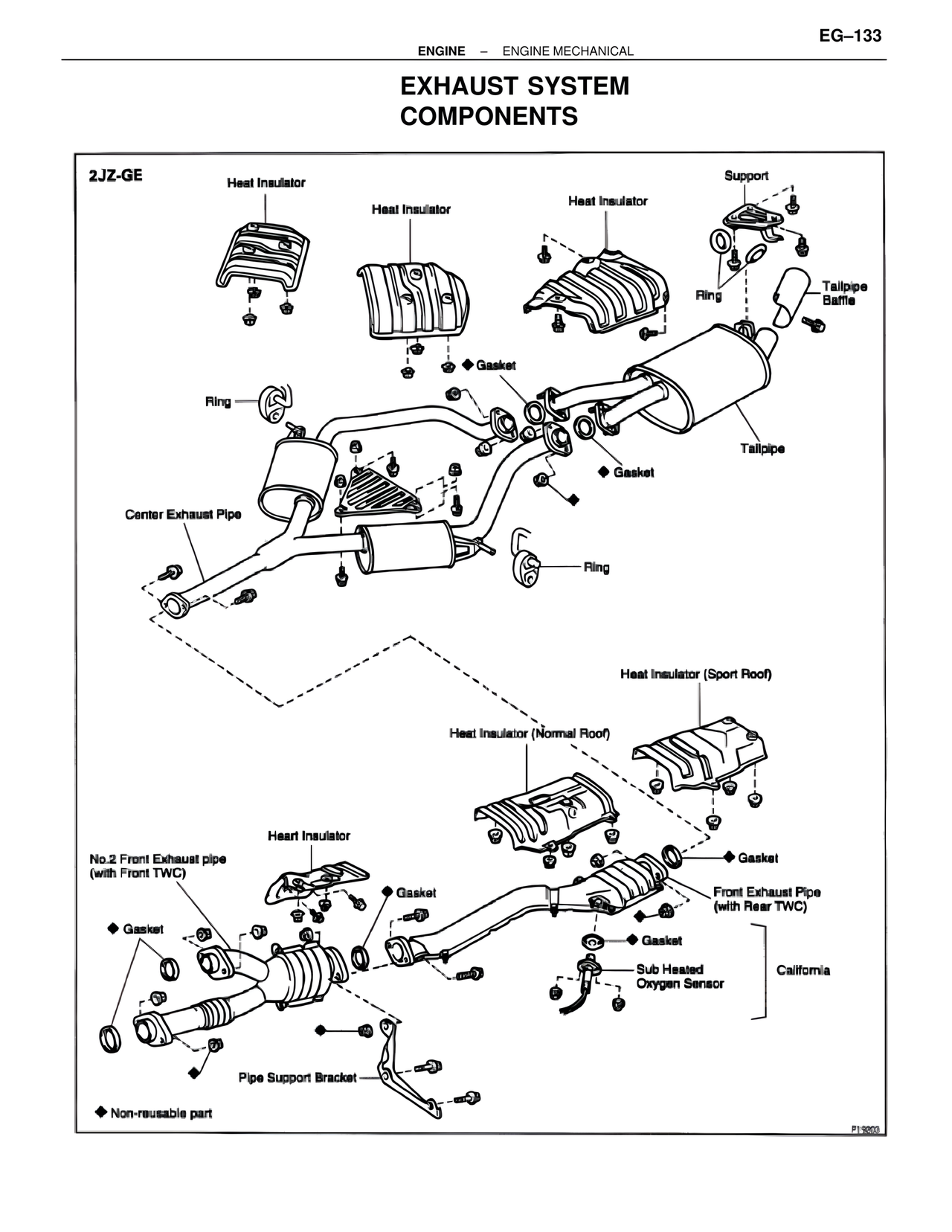

EXHAUST SYSTEM
COMPONENTS
2JZ-GE
Heat Insulator
Heat Insulator
Heat Insulator
Support
Ring
Tailpipe
Baffle
Ring
Gasket
Tailpipe
Gasket
Center Exhaust Pipe
Ring
Heat Insulator (Sport Roof)
Heat Insulator (Normal Roof)
Heart Insulator
Gasket
No.2 Front Exhaust pipe
(with Front TWC)
Gasket
Front Exhaust Pipe
(with Rear TWC)
Gasket
Gasket
Sub Heated
Oxygen Sensor
California
Pipe Support Bracket
Non-reusable part
P13903
