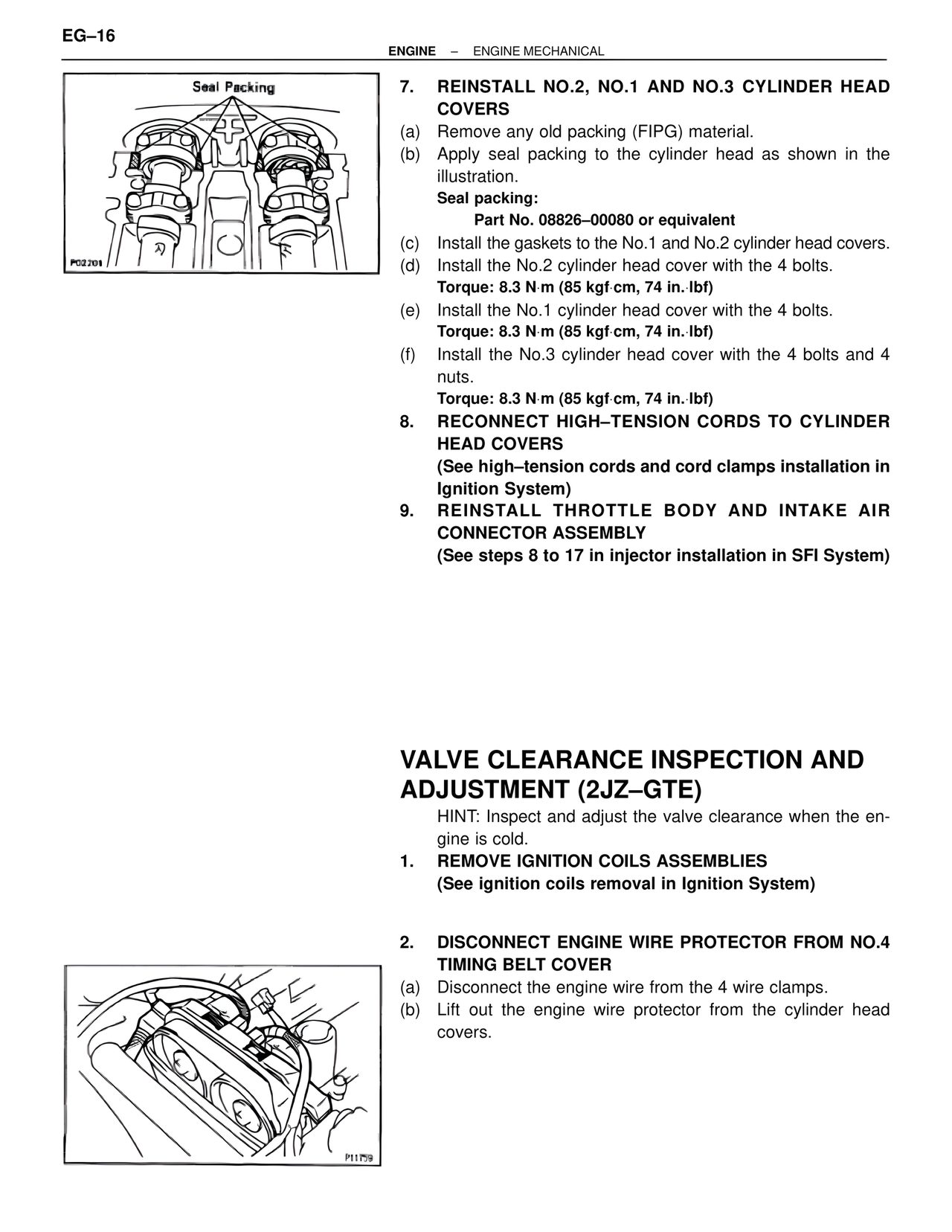

EG–16 ENGINE – ENGINE MECHANICAL Seal Packing P02201 7. REINSTALL NO.2, NO.1 AND NO.3 CYLINDER HEAD COVERS (a) Remove any old packing (FIPG) material. (b) Apply seal packing to the cylinder head as shown in the illustration. Seal packing: Part No. 08826–00080 or equivalent (c) Install the gaskets to the No.1 and No.2 cylinder head covers. (d) Install the No.2 cylinder head cover with the 4 bolts. Torque: 8.3 N·m (85 kgf·cm, 74 in.·lbf) (e) Install the No.1 cylinder head cover with the 4 bolts. Torque: 8.3 N·m (85 kgf·cm, 74 in.·lbf) (f) Install the No.3 cylinder head cover with the 4 bolts and 4 nuts. Torque: 8.3 N·m (85 kgf·cm, 74 in.·lbf) 8. RECONNECT HIGH–TENSION CORDS TO CYLINDER HEAD COVERS (See high–tension cords and cord clamps installation in Ignition System) 9. REINSTALL THROTTLE BODY AND INTAKE AIR CONNECTOR ASSEMBLY (See steps 8 to 17 in injector installation in SFI System) VALVE CLEARANCE INSPECTION AND ADJUSTMENT (2JZ–GTE) HINT: Inspect and adjust the valve clearance when the engine is cold. 1. REMOVE IGNITION COILS ASSEMBLIES (See ignition coils removal in Ignition System) P11759 2. DISCONNECT ENGINE WIRE PROTECTOR FROM NO.4 TIMING BELT COVER (a) Disconnect the engine wire from the 4 wire clamps. (b) Lift out the engine wire protector from the cylinder head covers.
