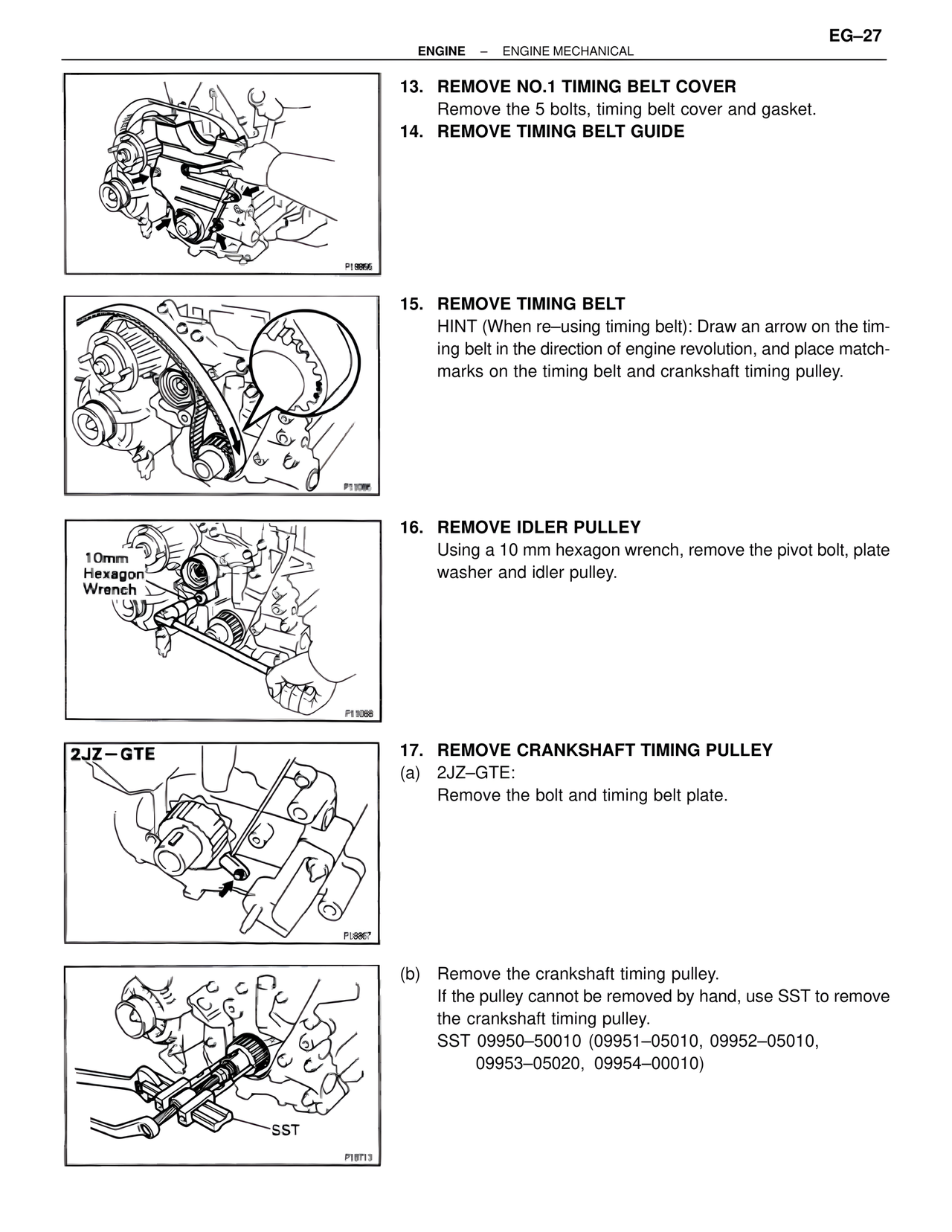

EG–27 ENGINE – ENGINE MECHANICAL 13. REMOVE NO.1 TIMING BELT COVER Remove the 5 bolts, timing belt cover and gasket. 14. REMOVE TIMING BELT GUIDE P19955 15. REMOVE TIMING BELT HINT (When re–using timing belt): Draw an arrow on the timing belt in the direction of engine revolution, and place matchmarks on the timing belt and crankshaft timing pulley. P13096 16. REMOVE IDLER PULLEY Using a 10 mm hexagon wrench, remove the pivot bolt, plate washer and idler pulley. 10mm Hexagon Wrench P13088 2JZ–GTE 17. REMOVE CRANKSHAFT TIMING PULLEY (a) 2JZ–GTE: Remove the bolt and timing belt plate. P18867 (b) Remove the crankshaft timing pulley. If the pulley cannot be removed by hand, use SST to remove the crankshaft timing pulley. SST 09950–50010 (09951–05010, 09952–05010, 09953–05020, 09954–00010) SST P18713
