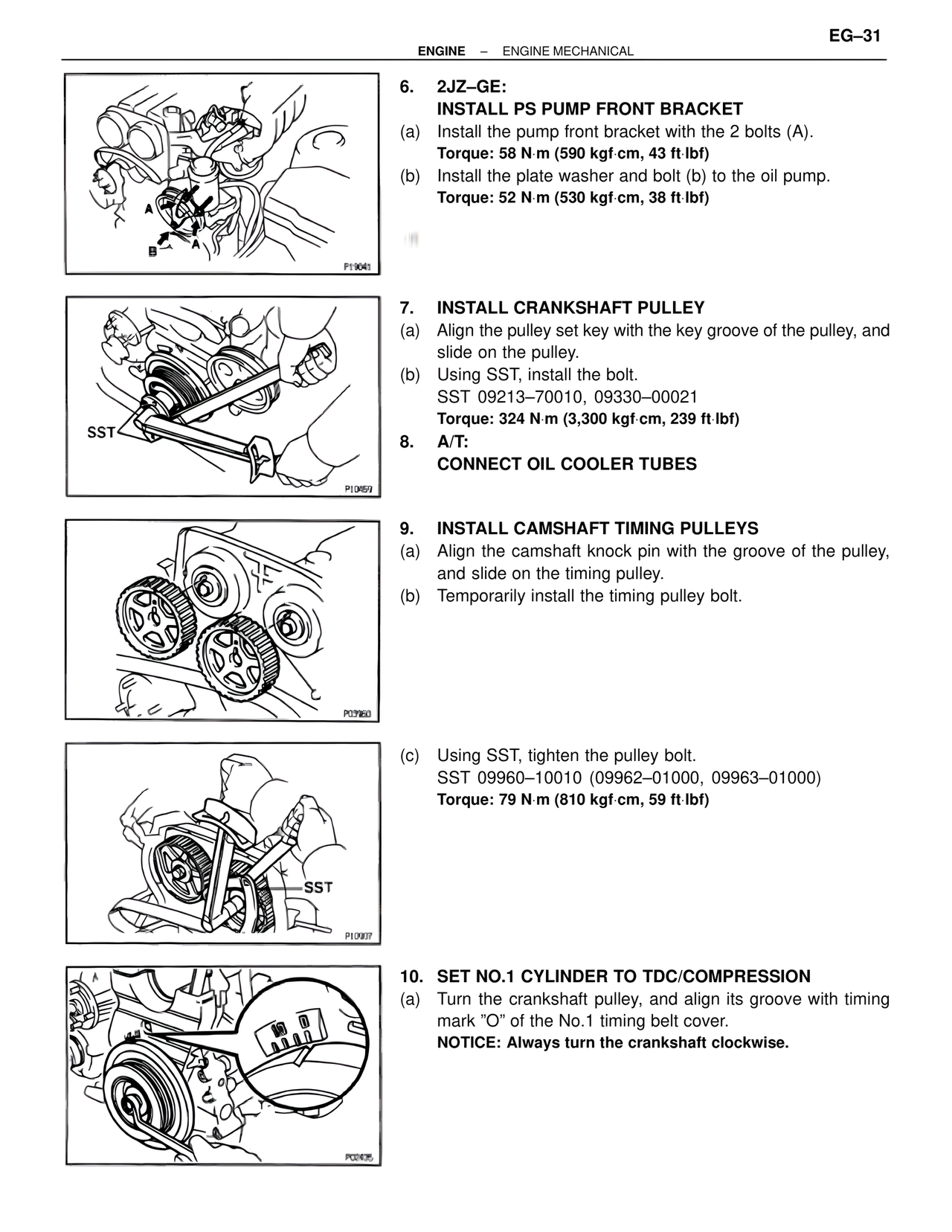

EG–31 ENGINE – ENGINE MECHANICAL 6. 2JZ–GE: INSTALL PS PUMP FRONT BRACKET (a) Install the pump front bracket with the 2 bolts (A). Torque: 58 N·m (590 kgf·cm, 43 ft·lbf) (b) Install the plate washer and bolt (b) to the oil pump. Torque: 52 N·m (530 kgf·cm, 38 ft·lbf) P19041 7. INSTALL CRANKSHAFT PULLEY (a) Align the pulley set key with the key groove of the pulley, and slide on the pulley. (b) Using SST, install the bolt. SST 09213–70010, 09330–00021 Torque: 324 N·m (3,300 kgf·cm, 239 ft·lbf) 8. A/T: CONNECT OIL COOLER TUBES SST P10459 9. INSTALL CAMSHAFT TIMING PULLEYS (a) Align the camshaft knock pin with the groove of the pulley, and slide on the timing pulley. (b) Temporarily install the timing pulley bolt. P03960 (c) Using SST, tighten the pulley bolt. SST 09960–10010 (09962–01000, 09963–01000) Torque: 79 N·m (810 kgf·cm, 59 ft·lbf) SST P10907 10. SET NO.1 CYLINDER TO TDC/COMPRESSION (a) Turn the crankshaft pulley, and align its groove with timing mark "O" of the No.1 timing belt cover. NOTICE: Always turn the crankshaft clockwise. P02435
