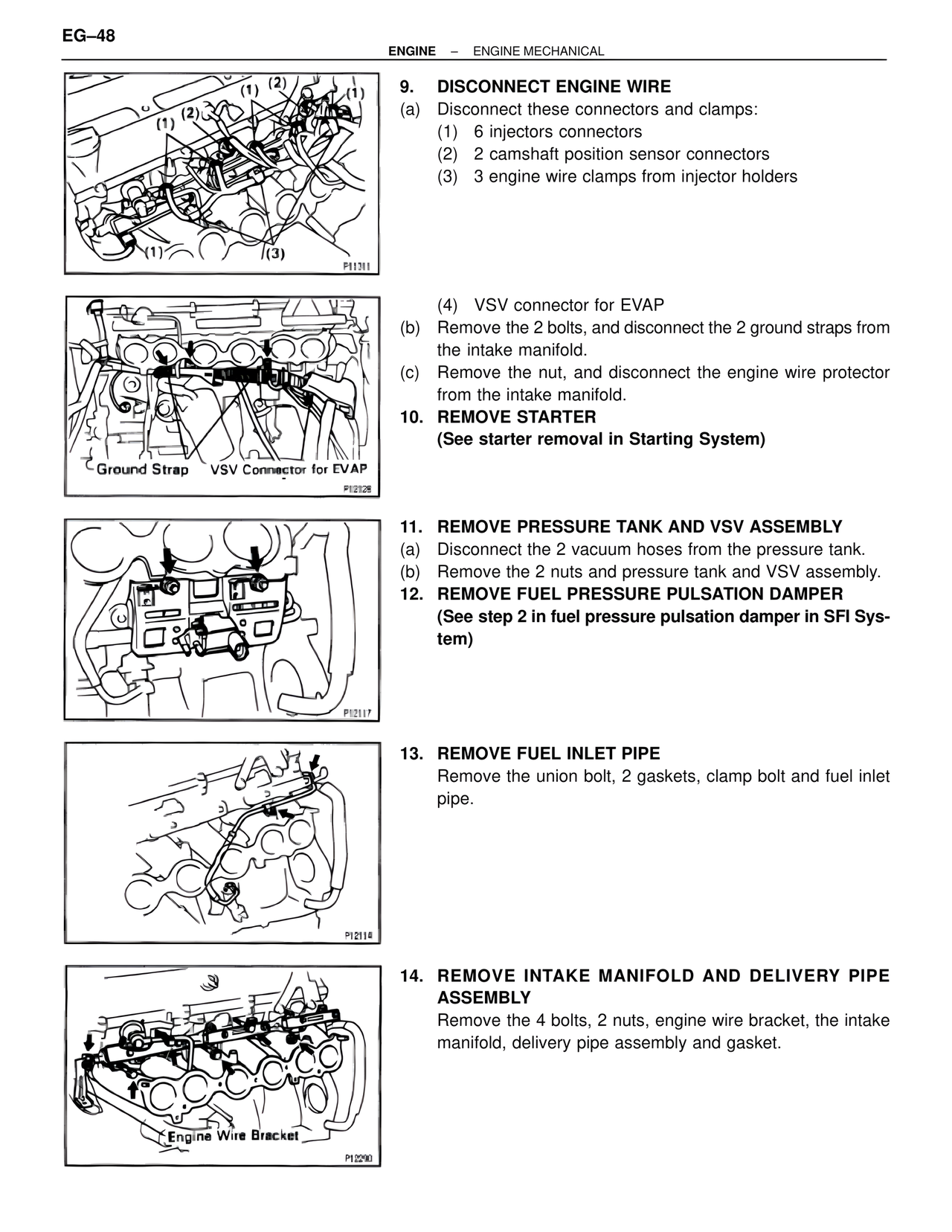

EG–48 ENGINE – ENGINE MECHANICAL 9. DISCONNECT ENGINE WIRE (a) Disconnect these connectors and clamps: (1) 6 injectors connectors (2) 2 camshaft position sensor connectors (3) 3 engine wire clamps from injector holders (1) (2) (1) (1) (1) (3) P11361 (4) VSV connector for EVAP (b) Remove the 2 bolts, and disconnect the 2 ground straps from the intake manifold. (c) Remove the nut, and disconnect the engine wire protector from the intake manifold. Ground Strap VSV Connector for EVAP P12128 10. REMOVE STARTER (See starter removal in Starting System) 11. REMOVE PRESSURE TANK AND VSV ASSEMBLY (a) Disconnect the 2 vacuum hoses from the pressure tank. (b) Remove the 2 nuts and pressure tank and VSV assembly. 12. REMOVE FUEL PRESSURE PULSATION DAMPER (See step 2 in fuel pressure pulsation damper in SFI Sys- tem) P12117 13. REMOVE FUEL INLET PIPE Remove the union bolt, 2 gaskets, clamp bolt and fuel inlet pipe. P12114 14. REMOVE INTAKE MANIFOLD AND DELIVERY PIPE ASSEMBLY Remove the 4 bolts, 2 nuts, engine wire bracket, the intake manifold, delivery pipe assembly and gasket. Engine Wire Bracket P12290
