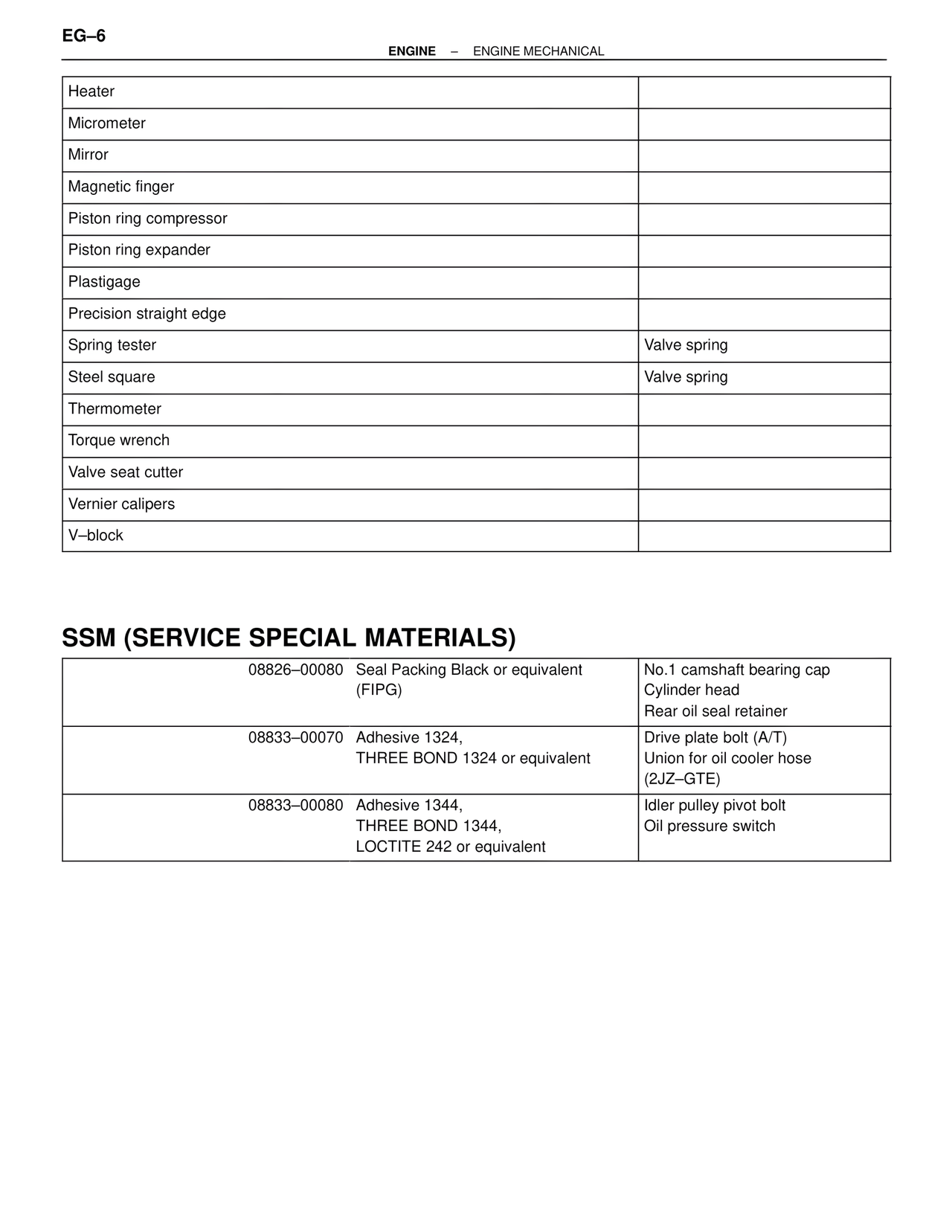

EG–6
ENGINE – ENGINE MECHANICAL
Heater
Micrometer
Mirror
Magnetic finger
Piston ring compressor
Piston ring expander
Plastigage
Precision straight edge
Spring tester Valve spring
Steel square Valve spring
Thermometer
Torque wrench
Valve seat cutter
Vernier calipers
V–block
SSM (SERVICE SPECIAL MATERIALS)
08826–00080 Seal Packing Black or equivalent (FIPG) No.1 camshaft bearing cap
Cylinder head
Rear oil seal retainer
08833–00070 Adhesive 1324,
THREE BOND 1324 or equivalent Drive plate bolt (A/T)
Union for oil cooler hose
(2JZ–GTE)
08833–00080 Adhesive 1344,
THREE BOND 1344,
LOCTITE 242 or equivalent Idler pulley pivot bolt
Oil pressure switch
