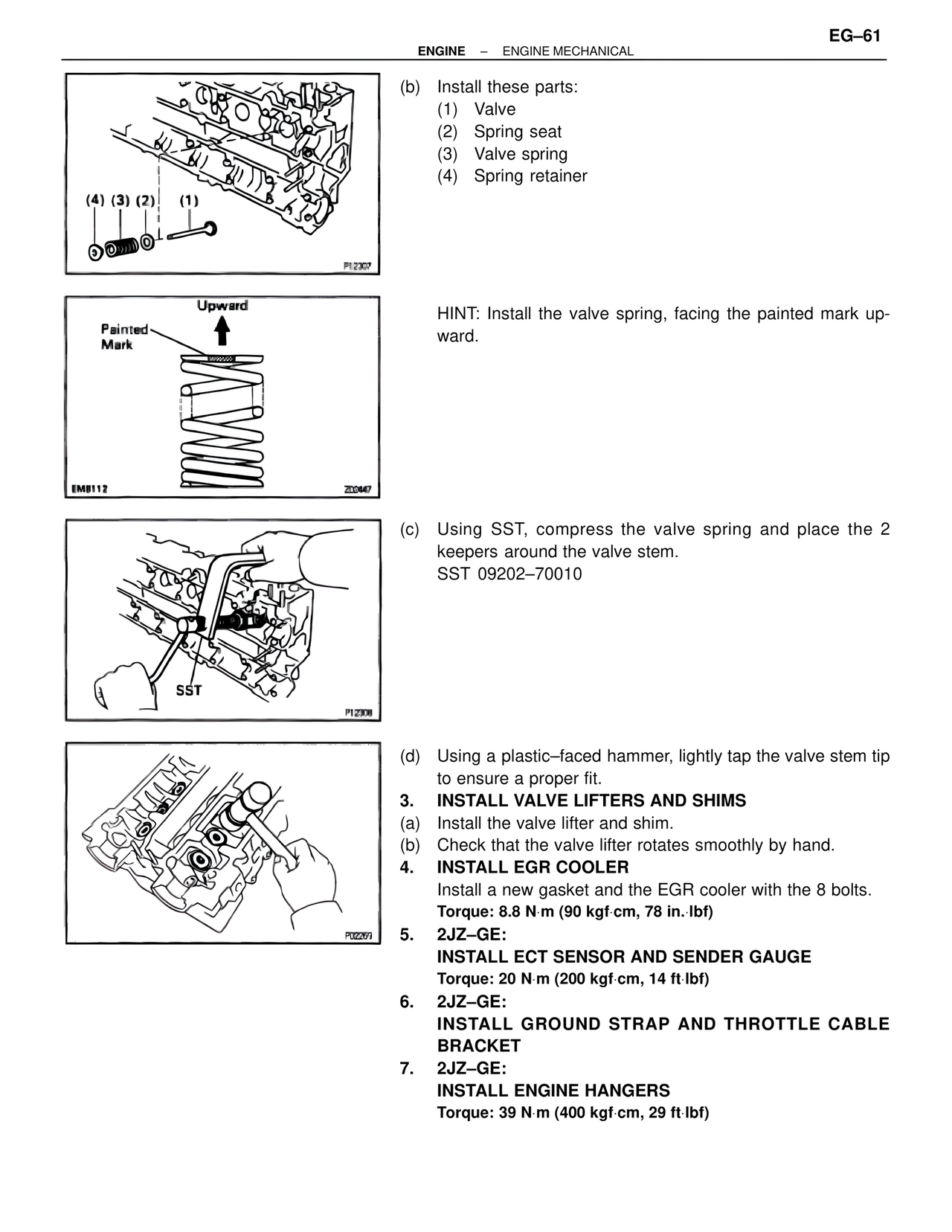

(b) Install these parts: (1) Valve (2) Spring seat (3) Valve spring (4) Spring retainer HINT: Install the valve spring, facing the painted mark upward. (c) Using SST, compress the valve spring and place the 2 keepers around the valve stem. SST 09202–70010 (d) Using a plastic–faced hammer, lightly tap the valve stem tip to ensure a proper fit. 3. INSTALL VALVE LIFTERS AND SHIMS (a) Install the valve lifter and shim. (b) Check that the valve lifter rotates smoothly by hand. 4. INSTALL EGR COOLER Install a new gasket and the EGR cooler with the 8 bolts. Torque: 8.8 N·m (90 kgf·cm, 78 in.·lbf) 5. 2JZ–GE: INSTALL ECT SENSOR AND SENDER GAUGE Torque: 20 N·m (200 kgf·cm, 14 ft·lbf) 6. 2JZ–GE: INSTALL GROUND STRAP AND THROTTLE CABLE BRACKET 7. 2JZ–GE: INSTALL ENGINE HANGERS Torque: 39 N·m (400 kgf·cm, 29 ft·lbf) Upward Painted Mark SST (4) (3) (2) (1) EM8112 Z20447 P12307 P12308 P09269
