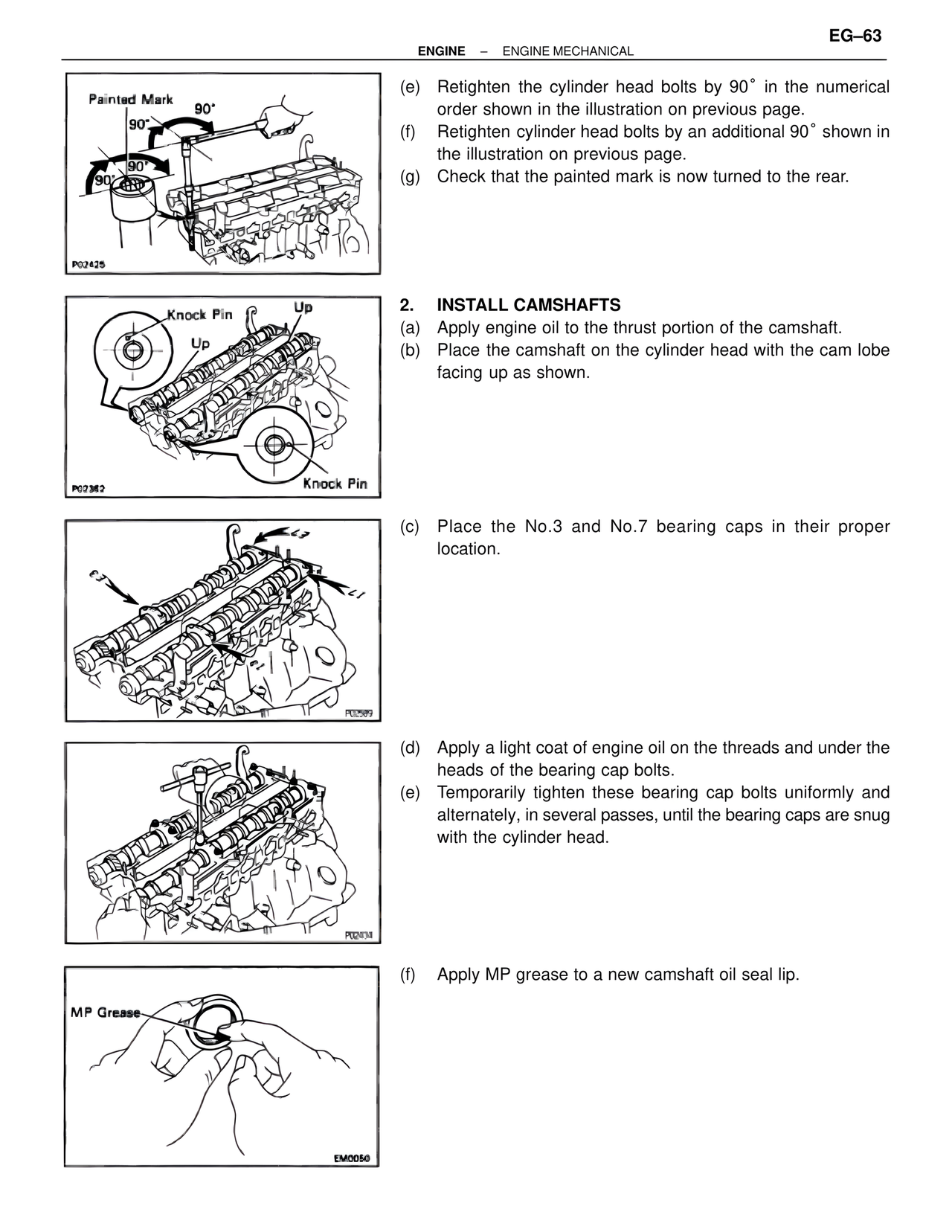

EG–63
ENGINE – ENGINE MECHANICAL
Painted Mark
90°
90°
90°
P02425
(e) Retighten the cylinder head bolts by 90° in the numerical order shown in the illustration on previous page.
(f) Retighten cylinder head bolts by an additional 90° shown in the illustration on previous page.
(g) Check that the painted mark is now turned to the rear.
Knock Pin
Up
Up
P02362
Knock Pin
2. INSTALL CAMSHAFTS
(a) Apply engine oil to the thrust portion of the camshaft.
(b) Place the camshaft on the cylinder head with the cam lobe facing up as shown.
P02589
(c) Place the No.3 and No.7 bearing caps in their proper location.
P02434
(d) Apply a light coat of engine oil on the threads and under the heads of the bearing cap bolts.
(e) Temporarily tighten these bearing cap bolts uniformly and alternately, in several passes, until the bearing caps are snug with the cylinder head.
MP Grease
EM0050
(f) Apply MP grease to a new camshaft oil seal lip.
