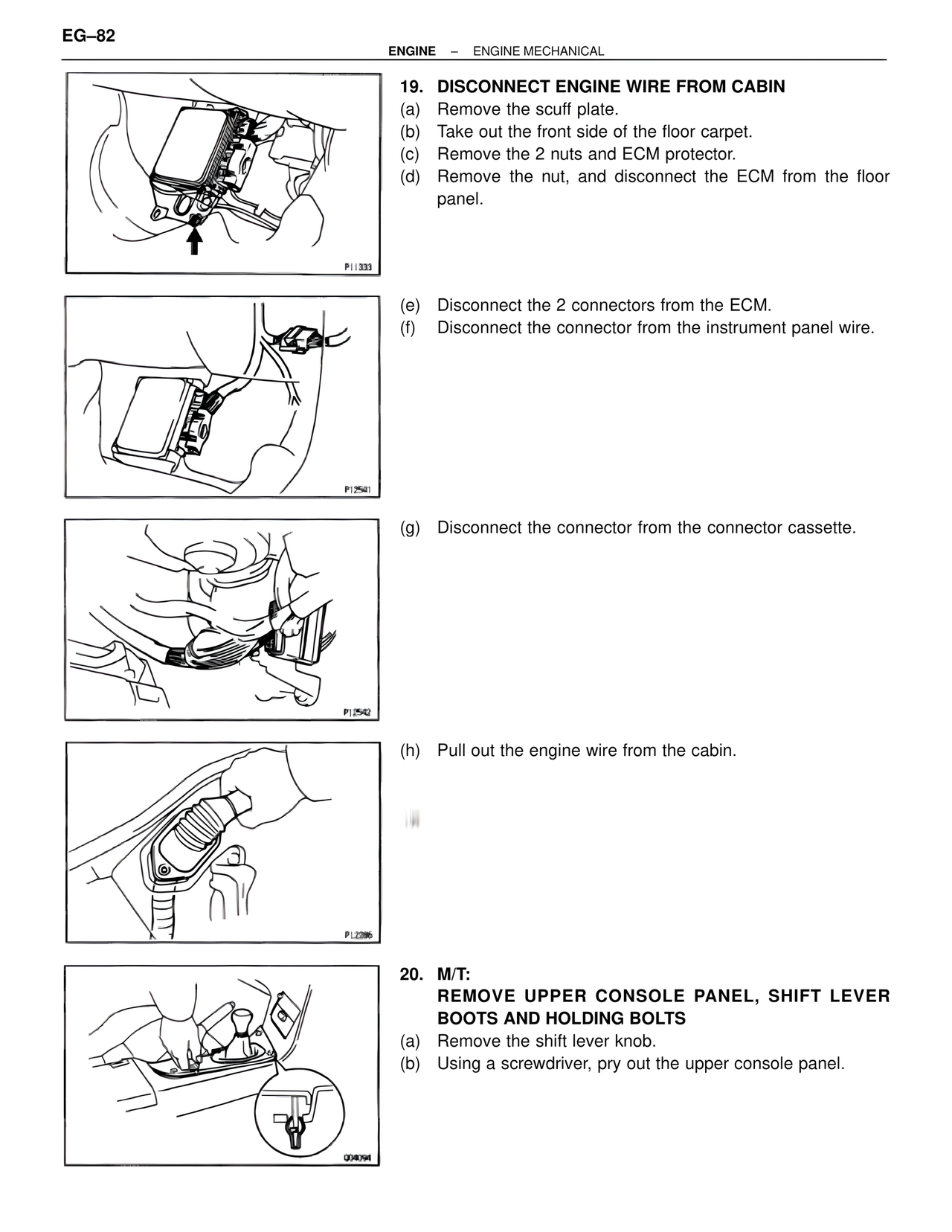

EG–82 ENGINE – ENGINE MECHANICAL 19. DISCONNECT ENGINE WIRE FROM CABIN (a) Remove the scuff plate. (b) Take out the front side of the floor carpet. (c) Remove the 2 nuts and ECM protector. (d) Remove the nut, and disconnect the ECM from the floor panel. P11333 (e) Disconnect the 2 connectors from the ECM. (f) Disconnect the connector from the instrument panel wire. P12541 (g) Disconnect the connector from the connector cassette. P12542 (h) Pull out the engine wire from the cabin. P12286 20. M/T: REMOVE UPPER CONSOLE PANEL, SHIFT LEVER BOOTS AND HOLDING BOLTS (a) Remove the shift lever knob. (b) Using a screwdriver, pry out the upper console panel. 004094
