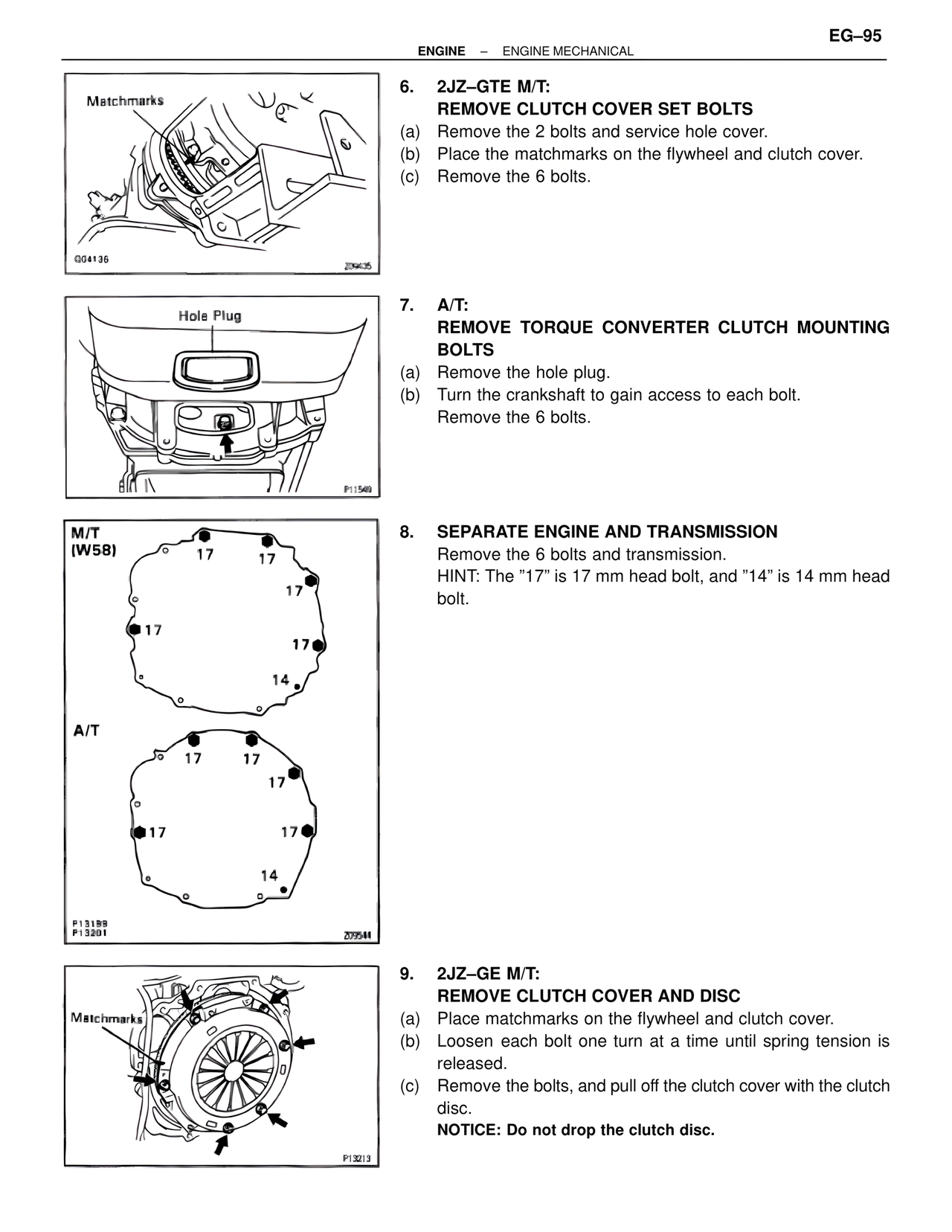

EG–95
ENGINE – ENGINE MECHANICAL
Matchmarks
G04136
209405
6. 2JZ–GTE M/T:
REMOVE CLUTCH COVER SET BOLTS
(a) Remove the 2 bolts and service hole cover.
(b) Place the matchmarks on the flywheel and clutch cover.
(c) Remove the 6 bolts.
Hole Plug
B1N \
P11549
7. A/T:
REMOVE TORQUE CONVERTER CLUTCH MOUNTING BOLTS
(a) Remove the hole plug.
(b) Turn the crankshaft to gain access to each bolt.
Remove the 6 bolts.
M/T
(W58)
17 17
17
17 17
14
17
A/T
17 17
17
17 17
14
17
P13189
P13201
209544
8. SEPARATE ENGINE AND TRANSMISSION
Remove the 6 bolts and transmission.
HINT: The "17" is 17 mm head bolt, and "14" is 14 mm head bolt.
Matchmarks
P13213
9. 2JZ–GE M/T:
REMOVE CLUTCH COVER AND DISC
(a) Place matchmarks on the flywheel and clutch cover.
(b) Loosen each bolt one turn at a time until spring tension is released.
(c) Remove the bolts, and pull off the clutch cover with the clutch disc.
NOTICE: Do not drop the clutch disc.
