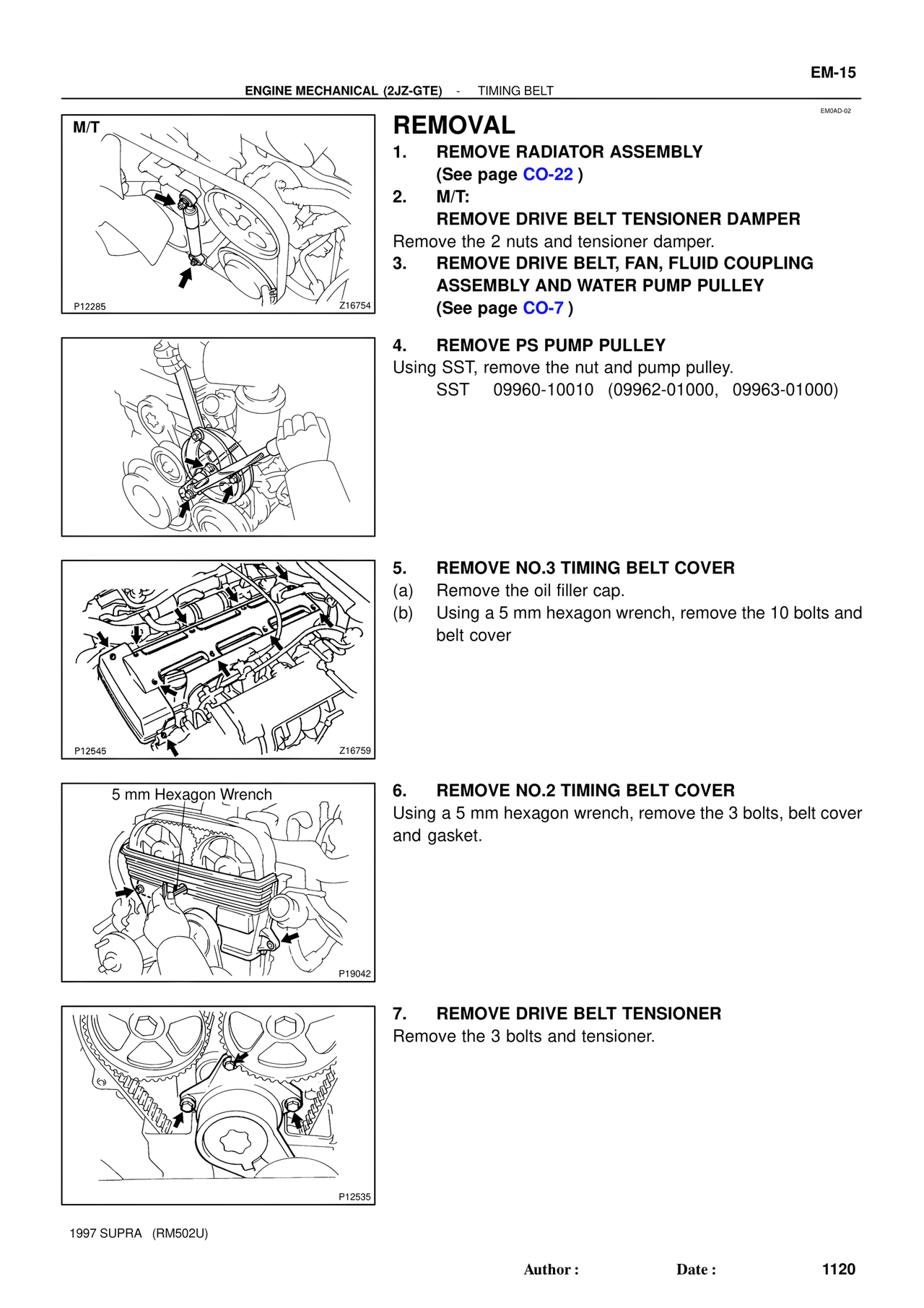

EM-15
ENGINE MECHANICAL (2JZ-GTE) - TIMING BELT
EM0AD-02
M/T
P12285 Z16754
REMOVAL
1. REMOVE RADIATOR ASSEMBLY
(See page CO-22 )
2. M/T:
REMOVE DRIVE BELT TENSIONER DAMPER
Remove the 2 nuts and tensioner damper.
3. REMOVE DRIVE BELT, FAN, FLUID COUPLING
ASSEMBLY AND WATER PUMP PULLEY
(See page CO-7 )
4. REMOVE PS PUMP PULLEY
Using SST, remove the nut and pump pulley.
SST 09960-10010 (09962-01000, 09963-01000)
P12545 Z16759
5 mm Hexagon Wrench
P19042
5. REMOVE NO.3 TIMING BELT COVER
(a) Remove the oil filler cap.
(b) Using a 5 mm hexagon wrench, remove the 10 bolts and
belt cover
6. REMOVE NO.2 TIMING BELT COVER
Using a 5 mm hexagon wrench, remove the 3 bolts, belt cover
and gasket.
P12535
7. REMOVE DRIVE BELT TENSIONER
Remove the 3 bolts and tensioner.
1997 SUPRA (RM502U)
