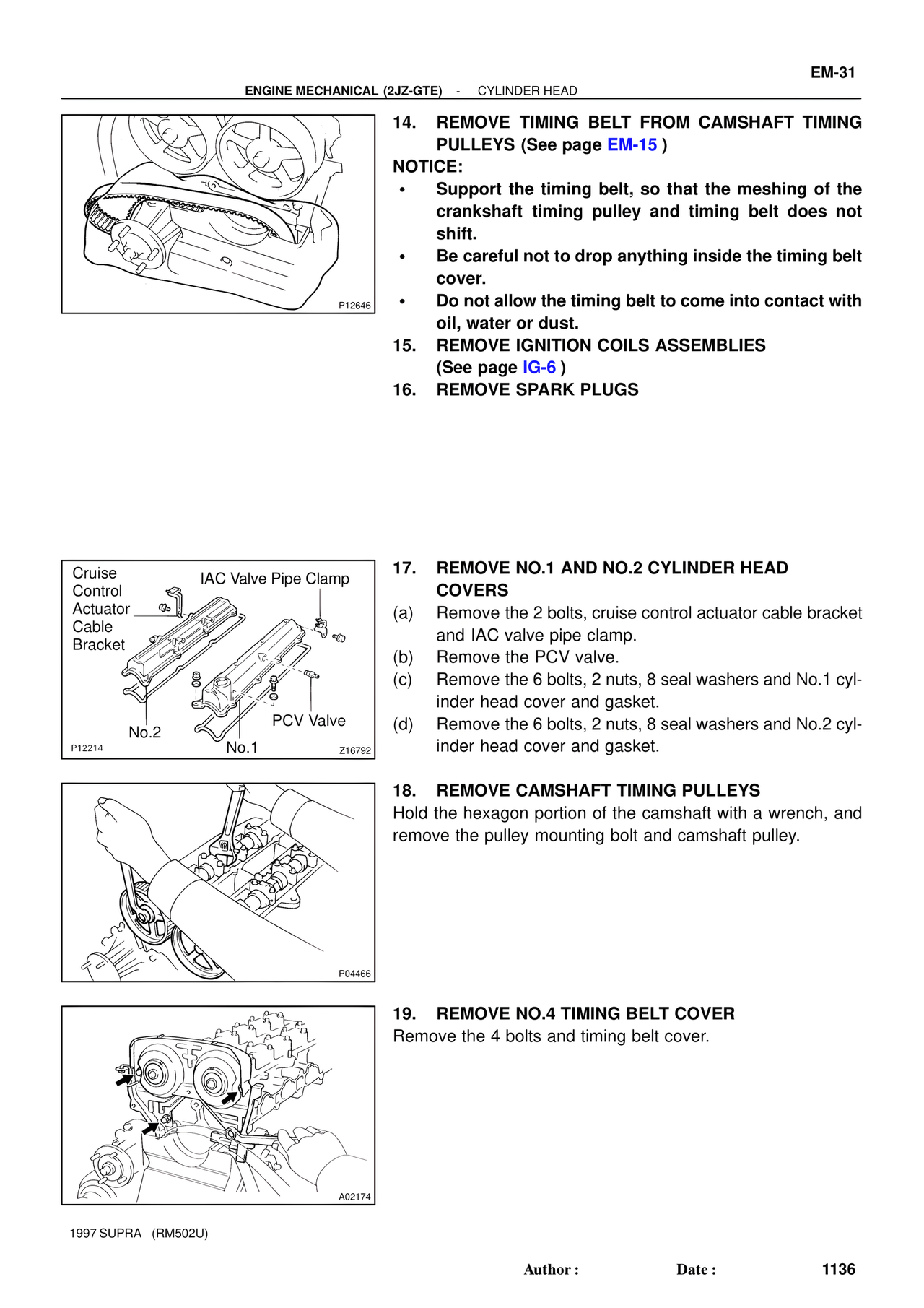

EM-31
ENGINE MECHANICAL (2JZ-GTE) - CYLINDER HEAD
P12646
14. REMOVE TIMING BELT FROM CAMSHAFT TIMING PULLEYS (See page EM-15 )
NOTICE:
• Support the timing belt, so that the meshing of the crankshaft timing pulley and timing belt does not shift.
• Be careful not to drop anything inside the timing belt cover.
• Do not allow the timing belt to come into contact with oil, water or dust.
15. REMOVE IGNITION COILS ASSEMBLIES (See page IG-6 )
16. REMOVE SPARK PLUGS
Cruise Control Actuator Cable Bracket
IAC Valve Pipe Clamp
No.2
PCV Valve
No.1
P12214
Z16792
17. REMOVE NO.1 AND NO.2 CYLINDER HEAD COVERS
(a) Remove the 2 bolts, cruise control actuator cable bracket and IAC valve pipe clamp.
(b) Remove the PCV valve.
(c) Remove the 6 bolts, 2 nuts, 8 seal washers and No.1 cylinder head cover and gasket.
(d) Remove the 6 bolts, 2 nuts, 8 seal washers and No.2 cylinder head cover and gasket.
P04466
18. REMOVE CAMSHAFT TIMING PULLEYS
Hold the hexagon portion of the camshaft with a wrench, and remove the pulley mounting bolt and camshaft pulley.
A02174
19. REMOVE NO.4 TIMING BELT COVER
Remove the 4 bolts and timing belt cover.
1997 SUPRA (RM502U)
Author :
Date :
1136
