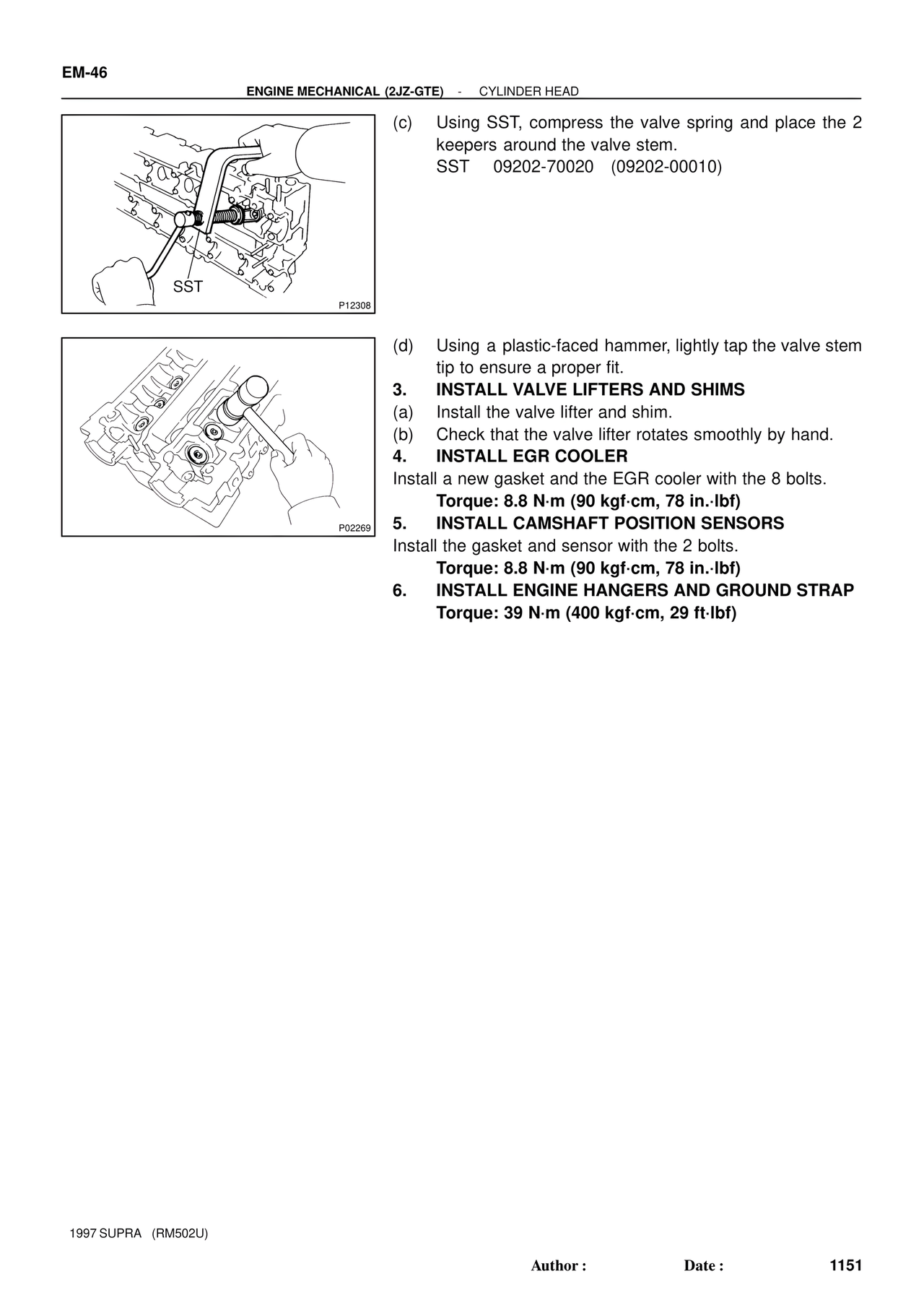

EM-46
ENGINE MECHANICAL (2JZ-GTE) - CYLINDER HEAD
SST
P12308
(c) Using SST, compress the valve spring and place the 2
keepers around the valve stem.
SST 09202-70020 (09202-00010)
P02269
(d) Using a plastic-faced hammer, lightly tap the valve stem
tip to ensure a proper fit.
3. INSTALL VALVE LIFTERS AND SHIMS
(a) Install the valve lifter and shim.
(b) Check that the valve lifter rotates smoothly by hand.
4. INSTALL EGR COOLER
Install a new gasket and the EGR cooler with the 8 bolts.
Torque: 8.8 N·m (90 kgf·cm, 78 in.·lbf)
5. INSTALL CAMSHAFT POSITION SENSORS
Install the gasket and sensor with the 2 bolts.
Torque: 8.8 N·m (90 kgf·cm, 78 in.·lbf)
6. INSTALL ENGINE HANGERS AND GROUND STRAP
Torque: 39 N·m (400 kgf·cm, 29 ft·lbf)
1997 SUPRA (RM502U)
Author : Date : 1151
