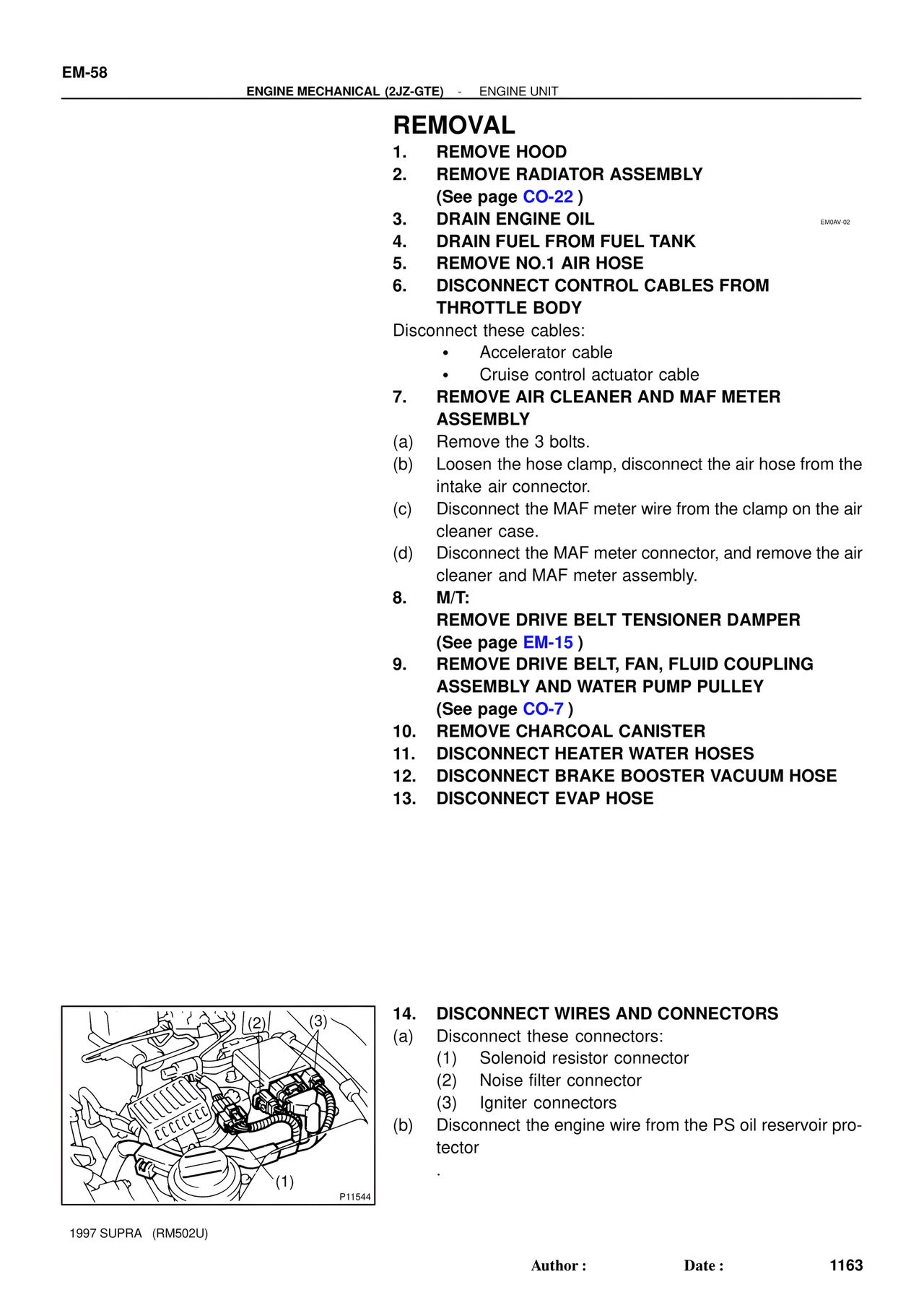

EM-58 ENGINE MECHANICAL (2JZ-GTE) - ENGINE UNIT REMOVAL 1. REMOVE HOOD 2. REMOVE RADIATOR ASSEMBLY (See page CO-22 ) 3. DRAIN ENGINE OIL EM0AV-02 4. DRAIN FUEL FROM FUEL TANK 5. REMOVE NO.1 AIR HOSE 6. DISCONNECT CONTROL CABLES FROM THROTTLE BODY Disconnect these cables: • Accelerator cable • Cruise control actuator cable 7. REMOVE AIR CLEANER AND MAF METER ASSEMBLY (a) Remove the 3 bolts. (b) Loosen the hose clamp, disconnect the air hose from the intake air connector. (c) Disconnect the MAF meter wire from the clamp on the air cleaner case. (d) Disconnect the MAF meter connector, and remove the air cleaner and MAF meter assembly. 8. M/T: REMOVE DRIVE BELT TENSIONER DAMPER (See page EM-15 ) 9. REMOVE DRIVE BELT, FAN, FLUID COUPLING ASSEMBLY AND WATER PUMP PULLEY (See page CO-7 ) 10. REMOVE CHARCOAL CANISTER 11. DISCONNECT HEATER WATER HOSES 12. DISCONNECT BRAKE BOOSTER VACUUM HOSE 13. DISCONNECT EVAP HOSE 14. DISCONNECT WIRES AND CONNECTORS (a) Disconnect these connectors: (1) Solenoid resistor connector (2) Noise filter connector (3) Igniter connectors (b) Disconnect the engine wire from the PS oil reservoir pro- tector . P11544 1997 SUPRA (RM502U) Author : Date : 1163
