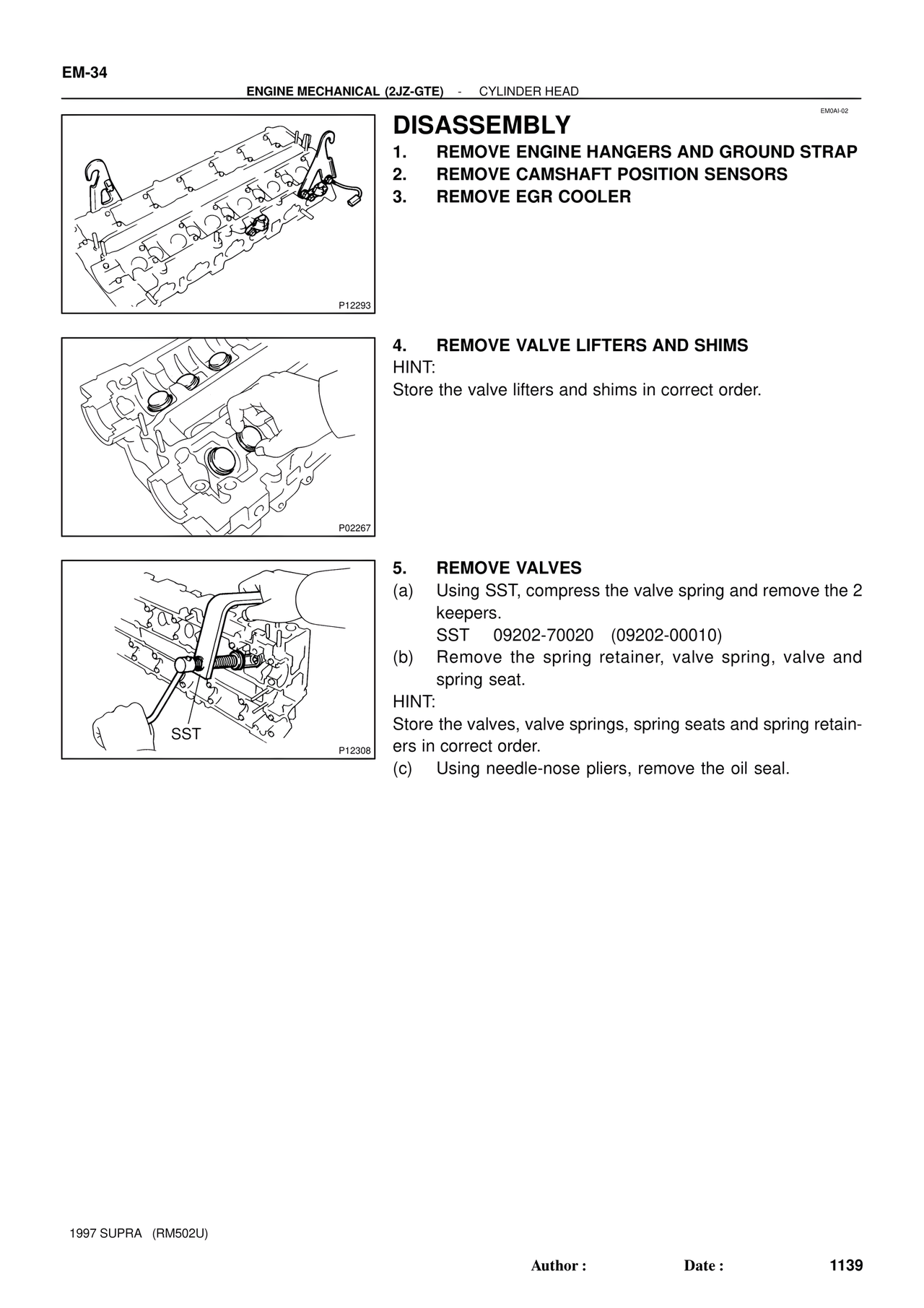

EM-34
ENGINE MECHANICAL (2JZ-GTE) - CYLINDER HEAD
EM0AI-02
DISASSEMBLY
1. REMOVE ENGINE HANGERS AND GROUND STRAP
2. REMOVE CAMSHAFT POSITION SENSORS
3. REMOVE EGR COOLER
P12293
4. REMOVE VALVE LIFTERS AND SHIMS
HINT:
Store the valve lifters and shims in correct order.
P02267
5. REMOVE VALVES
(a) Using SST, compress the valve spring and remove the 2 keepers.
SST 09202-70020 (09202-00010)
(b) Remove the spring retainer, valve spring, valve and spring seat.
HINT:
Store the valves, valve springs, spring seats and spring retainers in correct order.
(c) Using needle-nose pliers, remove the oil seal.
SST
P12308
