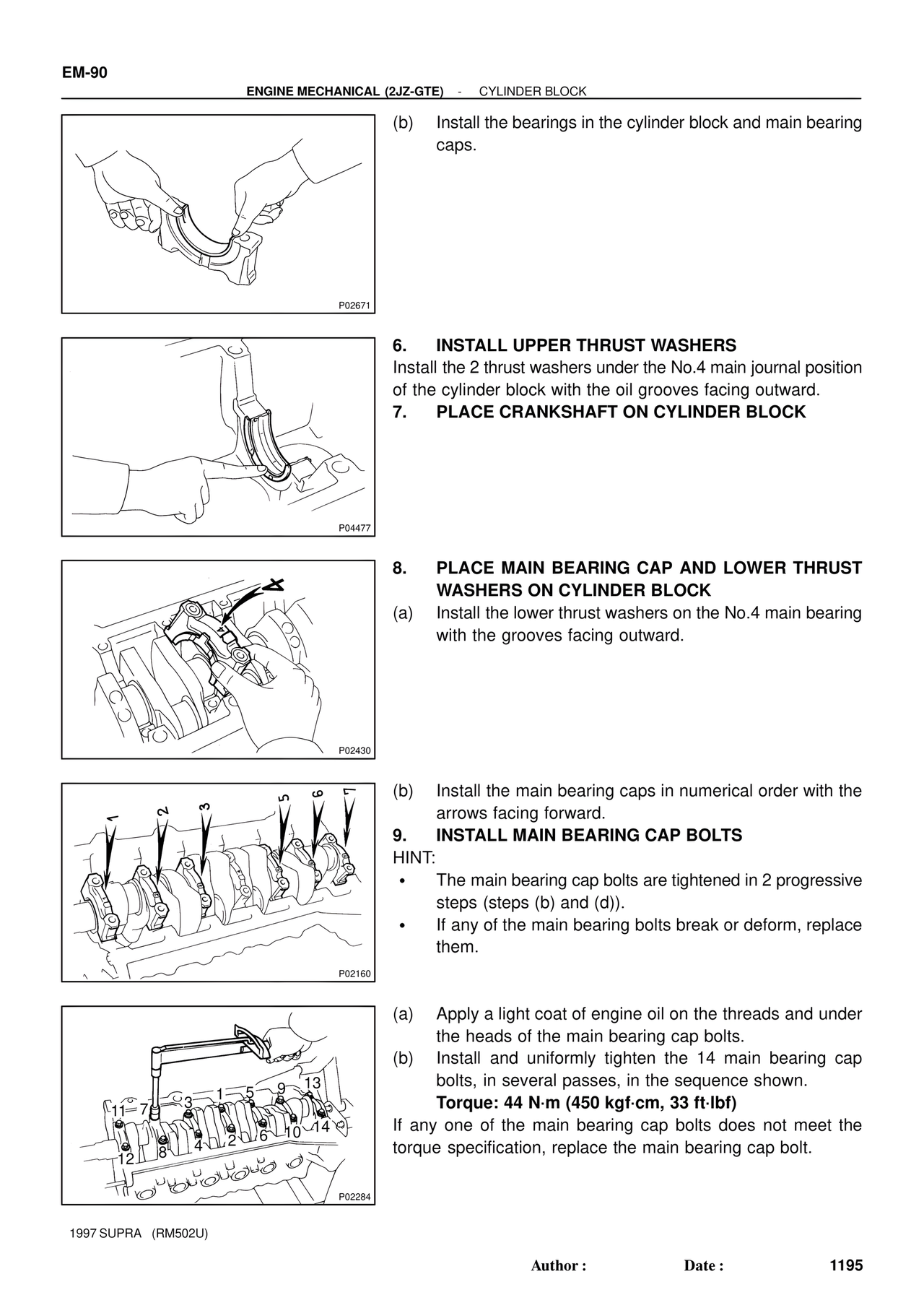

EM-90 ENGINE MECHANICAL (2JZ-GTE) - CYLINDER BLOCK (b) Install the bearings in the cylinder block and main bearing caps. P02671 6. INSTALL UPPER THRUST WASHERS Install the 2 thrust washers under the No.4 main journal position of the cylinder block with the oil grooves facing outward. 7. PLACE CRANKSHAFT ON CYLINDER BLOCK P04477 8. PLACE MAIN BEARING CAP AND LOWER THRUST WASHERS ON CYLINDER BLOCK (a) Install the lower thrust washers on the No.4 main bearing with the grooves facing outward. P02430 (b) Install the main bearing caps in numerical order with the arrows facing forward. 9. INSTALL MAIN BEARING CAP BOLTS HINT: • The main bearing cap bolts are tightened in 2 progressive steps (steps (b) and (d)). • If any of the main bearing bolts break or deform, replace them. P02160 (a) Apply a light coat of engine oil on the threads and under the heads of the main bearing cap bolts. (b) Install and uniformly tighten the 14 main bearing cap bolts, in several passes, in the sequence shown. Torque: 44 N·m (450 kgf·cm, 33 ft·lbf) If any one of the main bearing cap bolts does not meet the torque specification, replace the main bearing cap bolt. P02284 1997 SUPRA (RM502U) Author : Date : 1195
