EM-95
ENGINE MECHANICAL (2JZ-GTE) - EXHAUST SYSTEM

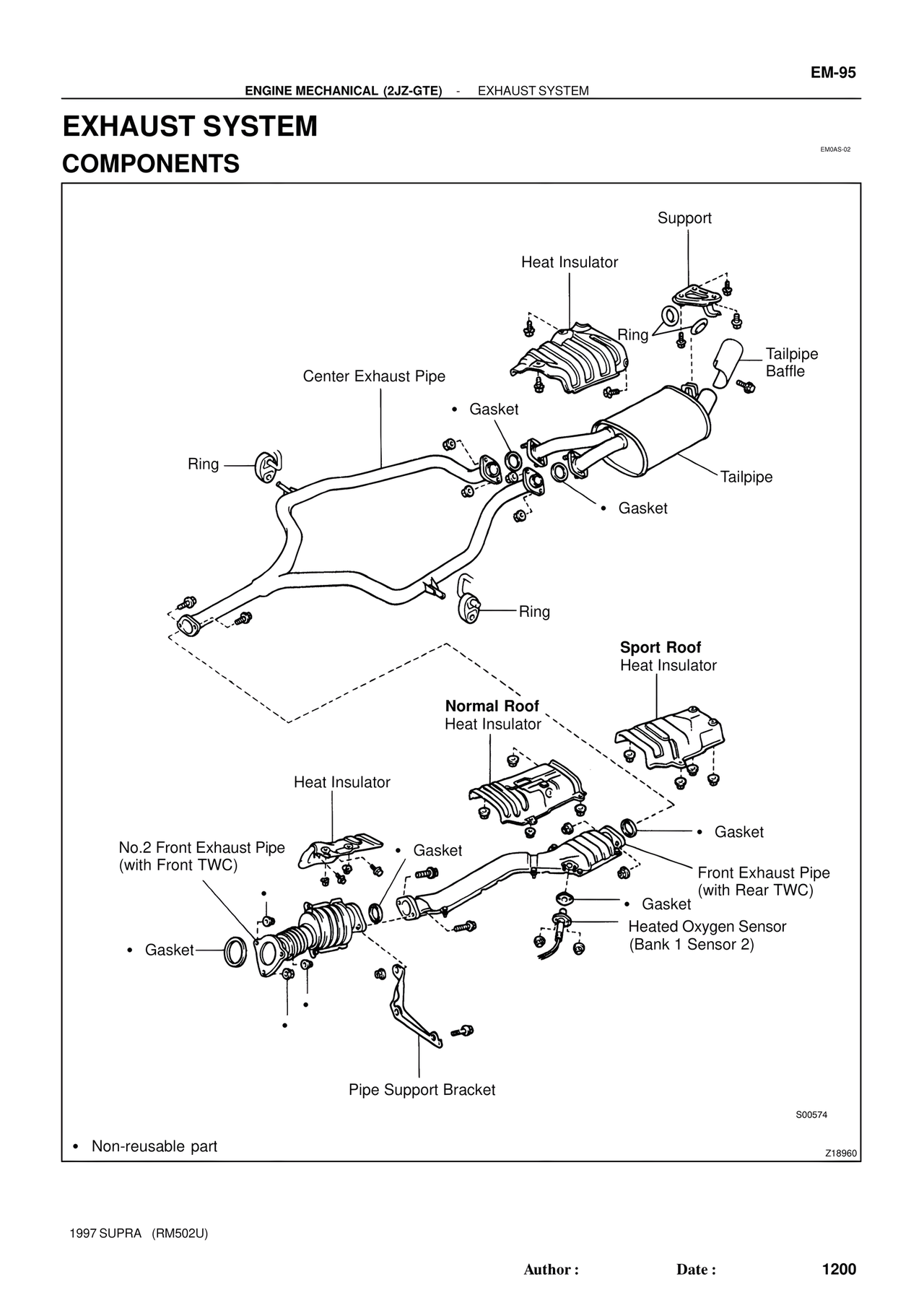

EXHAUST SYSTEM
COMPONENTS
EM0AS-02
Support
Heat Insulator
Ring
Tailpipe Baffle
Center Exhaust Pipe
• Gasket
Ring
Tailpipe
• Gasket
Ring
Sport Roof
Heat Insulator
Normal Roof
Heat Insulator
Heat Insulator
No.2 Front Exhaust Pipe
(with Front TWC)
• Gasket
• Gasket
Front Exhaust Pipe
(with Rear TWC)
• Gasket
Heated Oxygen Sensor
(Bank 1 Sensor 2)
Pipe Support Bracket
S00574
• Non-reusable part
Z18960
1997 SUPRA (RM502U)
Author : Date : 1200
