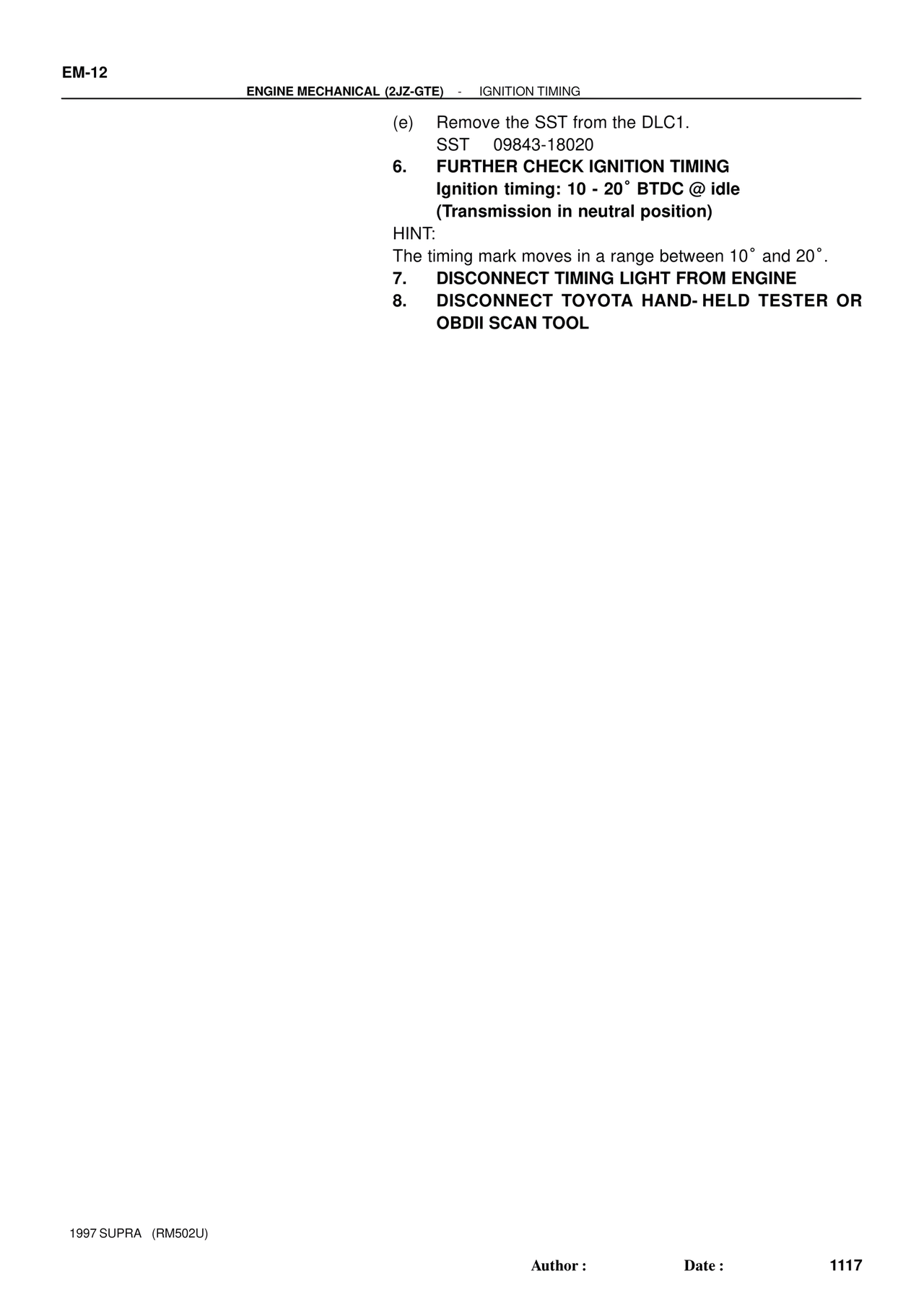

EM-12
ENGINE MECHANICAL (2JZ-GTE) - IGNITION TIMING
(e) Remove the SST from the DLC1.
SST 09843-18020
6. FURTHER CHECK IGNITION TIMING
Ignition timing: 10 - 20° BTDC @ idle
(Transmission in neutral position)
HINT:
The timing mark moves in a range between 10° and 20°.
7. DISCONNECT TIMING LIGHT FROM ENGINE
8. DISCONNECT TOYOTA HAND-HELD TESTER OR
OBDII SCAN TOOL
1997 SUPRA (RM502U)
Author : Date : 1117
